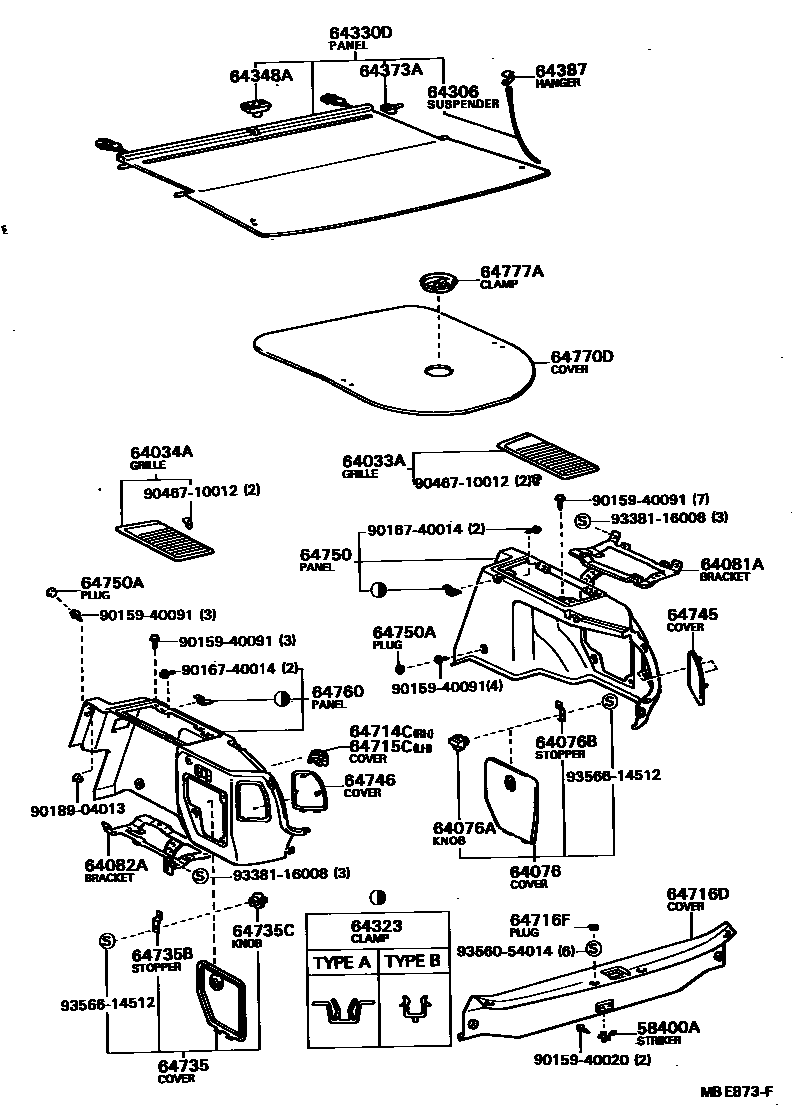

DECK BOARD & DECK TRIM COVER

58400ASTRIKER, LUGGAGE HOLD BELT

main58461-14020iAT151,CT150,ST15#..LB198310-198711

sub58461-14040

64033AGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-20030-02iAT151,CT150,ST15#..LB198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

sub64033-20030

main64033-20030-03iAT151,CT150,ST15#..LB198310-198711

SHADOW GRAY,GRAY,TRIM1#

sub64033-20030

main64033-20030-04iAT151,CT150,ST150..LB198310-198508

BLUE,BLUE,TRIM8#

sub64033-20030

main64033-20030-14iAT151,CT150,ST15#..LB198508-198711

BLUE,BLUE,TRIM8#

sub64033-20030

main64033-20040-02iAT151,CT150,ST150..LB..(EUR,SAA)198608-198711

W/SPEAKER,MAROON,RED/MAROON,TRIM3#

sub64033-20040

main64033-20040-03iAT151,CT150,ST150..LB..(EUR,SAA)198608-198711

W/SPEAKER,GRAY,GRAY,TRIM1#

sub64033-20040

main64033-20040-14iAT151,CT150,ST150..LB..(EUR,SAA)198608-198711

W/SPEAKER,BLUE,BLUE,TRIM8#

sub64033-20040

64034AGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-20040-02iAT151,CT150,ST150..LB..(EUR,SAA)198608-198711

W/SPEAKER,MAROON,RED/MAROON,TRIM3#

sub64033-20040

main64033-20040-03iAT151,CT150,ST150..LB..(EUR,SAA)198608-198711

W/SPEAKER,GRAY,GRAY,TRIM1#

sub64033-20040

main64033-20040-14iAT151,CT150,ST150..LB..(EUR,SAA)198608-198711

W/SPEAKER,BLUE,BLUE,TRIM8#

sub64033-20040

main64034-20030-02iAT151,CT150,ST15#..LB198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

sub64034-20030

main64034-20030-03iAT151,CT150,ST15#..LB198310-198711

SHADOW GRAY,GRAY,TRIM1#

sub64034-20030

main64034-20030-04iAT151,CT150,ST150..LB198310-198508

BLUE,BLUE,TRIM8#

sub64034-20030

main64034-20030-14iAT151,CT150,ST15#..LB198508-198711

BLUE,BLUE,TRIM8#

sub64034-20030

64076COVER, DECK TRIM SIDE JACK

main64707-20020-02iAT151,CT150,ST15#..LB198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

sub64707-20020

main64707-20020-03iAT151,CT150,ST15#..LB198310-198711

SHADOW GRAY,GRAY,TRIM1#

sub64707-20020

main64707-20020-04iAT151,CT150,ST150..LB198310-198508

BLUE,BLUE,TRIM8#

sub64707-20020

main64707-20020-14iAT151,CT150,ST15#..LB198508-198711

BLUE,BLUE,TRIM8#

sub64707-20020

64076AKNOB, DECK TRIM SIDE JACK COVER

main64982-16020-02iAT151,CT150,ST150..LB198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

sub64982-16020

main64982-16020-03iAT151,CT150,ST150..LB198310-198508

SHADOW GRAY,GRAY,TRIM1#

sub64982-16020

main64982-16020-04iAT151,CT150,ST150..LB198310-198508

BLUE,BLUE,TRIM8#

sub64982-16020

main64982-16020-12iAT151,CT150,ST15#..LB198508-198711

MAROON,RED/MAROON,TRIM3#

sub64982-16020

main64982-16020-23iAT151,CT150,ST15#..LB198508-198711

GRAY,GRAY,TRIM1#

sub64982-16020

main64982-16020-44iAT151,CT150,ST15#..LB198508-198711

BLUE,DEEP BLUE,TRIM8#

sub64982-16020

64076BSTOPPER, DECK TRIM SIDE JACK COVER

main64981-16021iAT151,CT150,ST15#..LB198310-198711

64081ABRACKET SUB-ASSY, SPEAKER SET, RH

main64081-20010iAT151,CT150,ST15#..LB198310-198711

64082ABRACKET SUB-ASSY, SPEAKER SET, LH

main64082-20010iAT151,CT150,ST15#..LB198310-198711

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-20010iAT151,CT150,ST15#..LB198310-198711

sub64306-12030

64323CLAMP, PACKAGE TRAY TRIM, NO.1

main64323-20010iAT151,CT150,ST15#..LB198310-198711

TYPE A

main64323-20020iAT151,CT150,ST15#..LB198310-198711

TYPE B

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-20440-02iAT151,CT150,ST150..LB..(DX,XL)198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

sub64330-20441

main64330-20440-03iAT151,CT150,ST150..LB..(DX,XL)198310-198508

SHADOW GRAY,GRAY,TRIM1#

sub64330-20441

main64330-20440-04iAT151,CT150,ST150..LB..(DX,XL)198310-198508

BLUE,BLUE,TRIM8#

sub64330-20441

main64330-20441-02iAT151..3FC..FRG198701-198711

SPORT PACKAGE,MAROON,MAROON,TRIM3#

sub64330-20441

main64330-20441-02iAT151,CT150,ST150..LB..(DX,XL)198508-198711

MAROON,MAROON,TRIM3#

sub64330-20441

main64330-20441-03iAT151,CT150,ST150..LB..(DX,XL)198508-198711

GRAY,GRAY,TRIM1#

sub64330-20441

main64330-20441-03iAT151..3FC..FRG198701-198711

SPORT PACKAGE,GRAY,GRAY,TRIM1#

sub64330-20441

main64330-20441-04iAT151,CT150,ST150..LB..(DX,XL)198508-198711

BLUE,BLUE,TRIM8#

sub64330-20441

main64330-20441-04iAT151..3FC..FRG198701-198711

SPORT PACKAGE,BLUE,BLUE,TRIM8#

sub64330-20441

main64330-20460-02iAT151,CT150,ST150..LB..GL198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

sub64330-20461

main64330-20460-03iAT151,CT150,ST150..LB..GL198310-198508

SHADOW GRAY,GRAY,TRIM1#

sub64330-20461

main64330-20460-04iAT151,CT150,ST150..LB..GL198310-198508

BLUE,BLUE,TRIM8#

sub64330-20461

main64330-20461-02iAT151,CT150,ST15#..LB..GL198508-198711

MAROON,MAROON,TRIM3#

sub64330-20461

main64330-20461-03iAT151,CT150,ST15#..LB..GL198508-198711

GRAY,GRAY,TRIM1#

sub64330-20461

main64330-20461-04iAT151,CT150,ST15#..LB..GL198508-198711

BLUE,BLUE,TRIM8#

sub64330-20461

64348AKNOB, PACKAGE TRAY TRIM

main64348-20010-02iAT151,CT150,ST15#..LB..GL198505-198711

MAROON,MAROON,TRIM3#

sub64348-20010

main64348-20010-03iAT151,CT150,ST15#..LB..GL198505-198711

GRAY,GRAY,TRIM1#

sub64348-20010

main64348-20010-04iAT151,CT150,ST15#..LB..GL198505-198711

BLUE,BLUE,TRIM8#

sub64348-20010

64373ASTOPPER, PACKAGE TRAY TRIM

main64373-20020iAT151,CT150,ST150..LB..(DX,XL)198310-198711

RH

main64379-20010iAT151,CT150,ST150..LB..(DX,XL)198310-198711

LH

64387HANGER, PACKAGE TRAY TRIM

main64381-10010iAT151,CT150,ST15#..LB198310-198711

64714CCOVER, DECK SIDE TRIM, RH

main64714-20150-02iAT151,CT150,ST150..LB..(DX,XL)198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

sub64714-20150

main64714-20150-02iAT151..3FC..FRG198701-198711

SPORT PACKAGE,DEEP MAROON,RED/MAROON,TRIM3#

sub64714-20150

main64714-20150-03iAT151..3FC..FRG198701-198711

SPORT PACKAGE,SHADOW GRAY,GRAY,TRIM1#

sub64714-20150

main64714-20150-03iAT151,CT150,ST150..LB..(DX,XL)198310-198711

SHADOW GRAY,GRAY,TRIM1#

sub64714-20150

main64714-20150-04iAT151,CT150,ST150..LB..(DX,XL)198310-198508

BLUE,BLUE,TRIM8#

sub64714-20150

main64714-20150-14iAT151..3FC..FRG198701-198711

SPORT PACKAGE,BLUE,BLUE,TRIM8#

sub64714-20150

main64714-20150-14iAT151,CT150,ST150..LB..(DX,XL)198508-198711

BLUE,BLUE,TRIM8#

sub64714-20150

64715CCOVER, DECK SIDE TRIM, LH

main64715-20150-02iAT151,CT150,ST150..LB..(DX,XL)198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

main64715-20150-02iAT151..3FC..FRG198701-198711

SPORT PACKAGE,DEEP MAROON,RED/MAROON,TRIM3#

main64715-20150-03iAT151..3FC..FRG198701-198711

SPORT PACKAGE,SHADOW GRAY,GRAY,TRIM1#

main64715-20150-03iAT151,CT150,ST150..LB..(DX,XL)198310-198711

SHADOW GRAY,GRAY,TRIM1#

main64715-20150-04iAT151,CT150,ST150..LB..(DX,XL)198310-198508

BLUE,BLUE,TRIM8#

main64715-20150-14iAT151..3FC..FRG198701-198711

SPORT PACKAGE,BLUE,BLUE,TRIM8#

main64715-20150-14iAT151,CT150,ST150..LB..(DX,XL)198508-198711

BLUE,BLUE,TRIM8#

64716DCOVER, DECK TRIM, REAR

main64716-20080-02iAT151,CT150,ST15#..LB198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

sub64716-20080

main64716-20080-03iAT151,CT150,ST15#..LB198310-198711

SHADOW GRAY,GRAY,TRIM1#

sub64716-20080

main64716-20080-04iAT151,CT150,ST150..LB198310-198508

BLUE,BLUE,TRIM8#

sub64716-20080

main64716-20080-14iAT151,CT150,ST15#..LB198508-198711

BLUE,BLUE,TRIM8#

sub64716-20080

64716FPLUG, HOLE(FOR DECK TRIM REAR COVER)

main90950-01246-04iAT151,CT150,ST150..LB198310-198508

BLUE,BLUE,TRIM8#

sub90950-01503

sub90950-01246

main90950-01246-12iAT151,CT150,ST15#..LB198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

sub90950-01503

sub90950-01246

main90950-01246-13iAT151,CT150,ST150..LB198310-198711

SHADOW GRAY,GRAY,TRIM1#

sub90950-01503

sub90950-01246

main90950-01246-24iAT151,CT150,ST15#..LB198508-198711

BLUE,BLUE,TRIM8#

sub90950-01503

sub90950-01246

64735COVER, DECK TRIM SIDE SERVICE HOLE

main64709-20010-02iAT151,CT150,ST15#..LB198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

sub64709-20010

main64709-20010-03iAT151,CT150,ST15#..LB198310-198711

SHADOW GRAY,GRAY,TRIM1#

sub64709-20010

main64709-20010-04iAT151,CT150,ST150..LB198310-198508

BLUE,BLUE,TRIM8#

sub64709-20010

main64709-20010-14iAT151,CT150,ST15#..LB198508-198711

BLUE,BLUE,TRIM8#

sub64709-20010

64735BSTOPPER, DECK TRIM SIDE SERVICE HOLE COVER

main64981-16021iAT151,CT150,ST15#..LB198310-198711

64735CKNOB, DECK TRIM SIDE SERVICE HOLE COVER

main64982-16020-02iAT151,CT150,ST150..LB198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

sub64982-16020

main64982-16020-03iAT151,CT150,ST150..LB198310-198508

SHADOW GRAY,GRAY,TRIM1#

sub64982-16020

main64982-16020-04iAT151,CT150,ST150..LB198310-198508

BLUE,BLUE,TRIM8#

sub64982-16020

main64982-16020-12iAT151,CT150,ST15#..LB198508-198711

MAROON,RED/MAROON,TRIM3#

sub64982-16020

main64982-16020-23iAT151,CT150,ST15#..LB198508-198711

GRAY,GRAY,TRIM1#

sub64982-16020

main64982-16020-44iAT151,CT150,ST15#..LB198508-198711

BLUE,DEEP BLUE,TRIM8#

sub64982-16020

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-20020-02iAT151,CT150,ST15#..LB198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

sub64745-20020

main64745-20020-03iAT151,CT150,ST15#..LB198310-198711

SHADOW GRAY,GRAY,TRIM1#

sub64745-20020

main64745-20020-04iAT151,CT150,ST150..LB198310-198508

BLUE,BLUE,TRIM8#

sub64745-20020

main64745-20020-14iAT151,CT150,ST15#..LB198508-198711

BLUE,BLUE,TRIM8#

sub64745-20020

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-20020-02iAT151,CT150,ST15#..LB198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

sub64746-20020

main64746-20020-03iAT151,CT150,ST15#..LB198310-198711

SHADOW GRAY,GRAY,TRIM1#

sub64746-20020

main64746-20020-04iAT151,CT150,ST150..LB198310-198508

BLUE,BLUE,TRIM8#

sub64746-20020

main64746-20020-14iAT151,CT150,ST15#..LB198508-198711

BLUE,BLUE,TRIM8#

sub64746-20020

64750PANEL ASSY, DECK SIDE TRIM, RH

main64730-20030-02iAT151..LB..GEN;CT150,ST15#..LB;AT151..LB..(EUG,FRG)198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

sub64730-20030

main64730-20030-03iAT151..LB..GEN;CT150,ST15#..LB;AT151..LB..(EUG,FRG)198310-198711

SHADOW GRAY,GRAY,TRIM1#

sub64730-20030

main64730-20030-04iAT151..LB..EUG;AT151..LB..GEN;CT150,ST150..LB198310-198508

BLUE,BLUE,TRIM8#

sub64730-20030

main64730-20030-14iAT151..LB..GEN;CT150,ST15#..LB;AT151..LB..(EUG,FRG)198508-198711

BLUE,BLUE,TRIM8#

sub64730-20030

main64730-20050-02iST150..LB..RHD..GL198310-198711

RR SEAT BELT *ELR,DEEP MAROON,RED/MAROON,TRIM3#

sub64730-20050

main64730-20050-03iAT151..LB..XL198310-198711

RR SEAT BELT *ELR,SHADOW GRAY,GRAY,TRIM1#

sub64730-20050

main64730-20050-04iAT151,CT150..LB..EUR198310-198508

RR SEAT BELT *ELR,BLUE,BLUE,TRIM8#

sub64730-20050

main64730-20050-14iAT151,CT150,ST150..LB..EUR198508-198711

RR SEAT BELT *ELR,BLUE,BLUE,TRIM8#

sub64730-20050

64750APLUG, HOLE(FOR DECK SIDE TRIM PANEL)

main90950-01245-04iAT151,CT150,ST150..LB..GL198310-198508

BLUE,BLUE,TRIM8#

sub90950-01245

main90950-01245-12iAT151,CT150,ST150..LB..GL198310-198508

DEEP MAROON,RED/MAROON,TRIM3#

sub90950-01245

main90950-01245-13iAT151,CT150,ST150..LB..GL198310-198508

SHADOW GRAY,GRAY,TRIM1#

sub90950-01245

main90950-01246-04iAT151,CT150,ST150..LB..(DX,XL)198310-198508

BLUE,BLUE,TRIM8#

sub90950-01503

sub90950-01246

main90950-01246-04iAT151,CT150,ST150..LB..(DX,XL)198310-198508

RR SEAT BELT *ELR,BLUE,BLUE,TRIM8#

sub90950-01503

sub90950-01246

main90950-01246-12iAT151,CT150,ST150..LB..(DX,XL)198310-198508

RR SEAT BELT *ELR,DEEP MAROON,RED/MAROON,TRIM3#

sub90950-01503

sub90950-01246

main90950-01246-12iAT151,CT150,ST150..LB..(DX,XL)198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

sub90950-01503

sub90950-01246

main90950-01246-13iAT151,CT150,ST150..LB..(DX,XL)198310-198508

RR SEAT BELT *ELR,SHADOW GRAY,GRAY,TRIM1#

sub90950-01503

sub90950-01246

main90950-01246-13iAT151,CT150,ST150..LB..(DX,XL)198310-198711

SHADOW GRAY,GRAY,TRIM1#

sub90950-01503

sub90950-01246

main90950-01246-24iAT151,CT150,ST15#..LB198508-198711

BLUE,BLUE,TRIM8#

sub90950-01503

sub90950-01246

64760PANEL ASSY, DECK SIDE TRIM, LH

main64740-20030-02iAT151..LB..GEN;CT150,ST15#..LB;AT151..LB..(EUG,FRG)198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

sub64740-20030

main64740-20030-03iAT151..LB..GEN;CT150,ST15#..LB;AT151..LB..(EUG,FRG)198310-198711

SHADOW GRAY,GRAY,TRIM1#

sub64740-20030

main64740-20030-04iAT151..LB..EUG;AT151..LB..GEN;CT150,ST150..LB198310-198508

BLUE,BLUE,TRIM8#

sub64740-20030

main64740-20030-14iAT151..LB..GEN;CT150,ST15#..LB;AT151..LB..(EUG,FRG)198508-198711

BLUE,BLUE,TRIM8#

sub64740-20030

main64740-20050-02iAT151..LB..XL198310-198711

RR SEAT BELT *ELR,DEEP MAROON,RED/MAROON,TRIM3#

sub64740-20050

main64740-20050-03iST15#..LB..RHD..GEN198310-198711

RR SEAT BELT *ELR,SHADOW GRAY,GRAY,TRIM1#

sub64740-20050

main64740-20050-04iST150..LB..LHD..5F..XL..GEN198310-198508

RR SEAT BELT *ELR,BLUE,BLUE,TRIM8#

sub64740-20050

main64740-20050-14iAT151,CT150,ST150..LB..EUR198508-198711

RR SEAT BELT *ELR,BLUE,BLUE,TRIM8#

sub64740-20050

64770DCOVER ASSY, SPARE WHEEL

main64770-20050iAT151,CT150,ST150..LB198310-198508

sub64770-20110

main64770-20110iAT151,CT150,ST15#..LB198508-198711

64777ACLAMP, SPARE WHEEL COVER

main64777-32020iAT151,CT150,ST15#..LB198310-198711

sub64777-32030

9015940020

main90159-40020

9015940091

main90159-40091

9016740014

main90167-40014

9018904013

main90189-04013

9046710012

main90467-10012

9338116008

main93381-16008

9356054014

main93560-54014

9356614512

main93566-14512

36 parts on this diagram · 1 diagram in section
