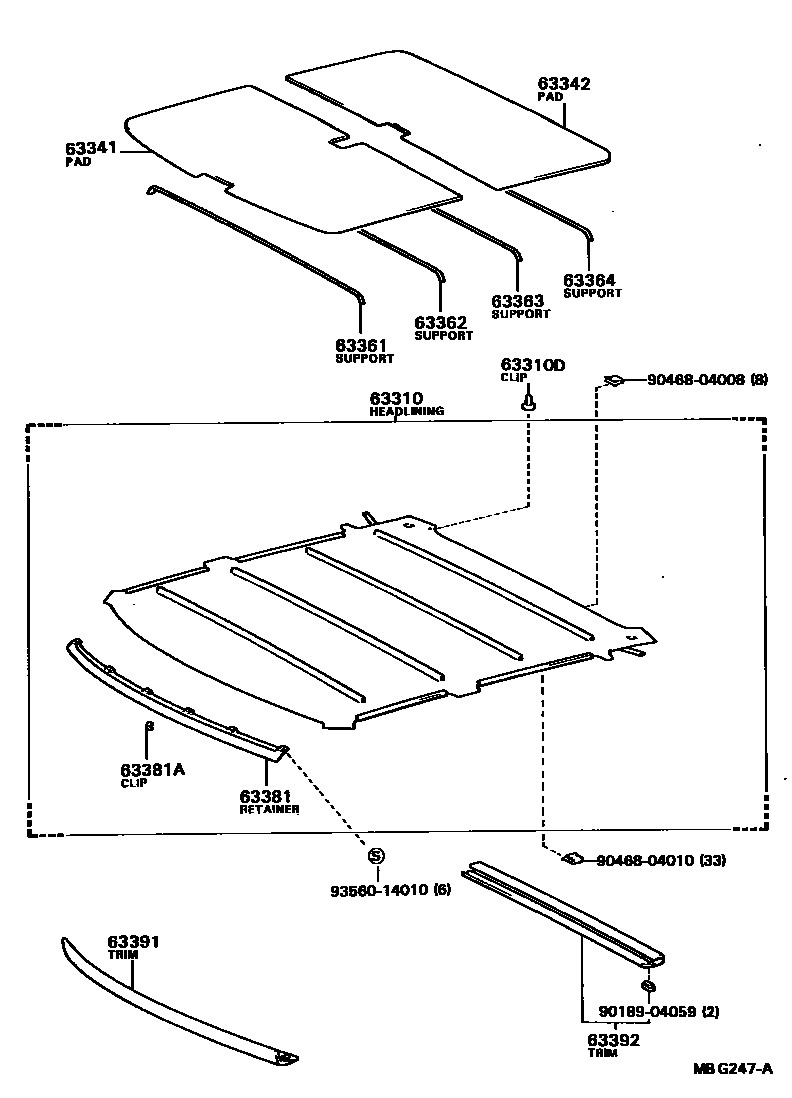

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

63310HEADLINING ASSY, ROOF

main63310-20330-03iAT151,CT150,ST150..SED..(EUR,GEN,SAA)198310-198711

W/SUN ROOF,LIGHT GRAY,GRAY,TRIM1#,8#

main63310-20330-05iAT151,CT150,ST150..SED..(EUR,GEN,SAA)198310-198711

W/SUN ROOF,BEIGE,BEIGE,TRIM3#

main63310-20340-03iAT151,CT150,ST150..LB..(EUR,GEN,SAA)198310-198609

LIGHT GRAY,GRAY,TRIM1#,8#

main63310-20340-05iAT151,CT150,ST150..LB..(EUR,GEN,SAA)198310-198609

BEIGE,BEIGE,TRIM3#

main63310-20350-03iST150..LB..RHD..GL..GEN198603-198711

LUXURY PACKAGE,LIGHT GRAY,GRAY,TRIM1#,8#

main63310-20350-03iAT151,CT150,ST150..LB..GL..EUR198609-198711

FB,GRAY,GRAY,TRIM1#,8#

main63310-20350-05iST150..LB..RHD..GL..GEN198603-198711

LUXURY PACKAGE,BEIGE,BEIGE,TRIM3#

main63310-20350-05iAT151,CT150,ST150..LB..GL..EUR198609-198711

FB,BEIGE,BEIGE,TRIM3#

main63310-20370-03iAT151,CT150,ST150..SED..(DX,GL,XL)..(EUR,GEN,SAA)198310-198609

LIGHT GRAY,GRAY,TRIM1#,8#

main63310-20370-05iAT151,CT150,ST150..SED..(DX,GL,XL)..(EUR,GEN,SAA)198310-198609

BEIGE,BEIGE,TRIM3#

main63310-20380-03iAT151,CT150,ST150..SED..GL..EUG198609-198711

FB,GRAY,GRAY,TRIM1#,8#

main63310-20380-03iAT151,ST150..SED..RHD..GL..GEN198603-198711

LUXURY PACKAGE,LIGHT GRAY,GRAY,TRIM1#,8#

main63310-20380-05iAT151,ST150..SED..RHD..GL..GEN198603-198711

LUXURY PACKAGE,BEIGE,BEIGE,TRIM3#

main63310-20380-05iAT151,CT150,ST150..SED..GL..EUG198609-198711

FB,BEIGE,BEIGE,TRIM3#

main63310-20400-03iAT151,CT150,ST150..LB..(EUR,GEN,SAA)198310-198711

W/SUN ROOF,LIGHT GRAY,GRAY,TRIM1#,8#

main63310-20400-05iAT151,CT150,ST150..LB..(EUR,GEN,SAA)198310-198711

W/SUN ROOF,BEIGE,BEIGE,TRIM3#

main63310-20420-03iAT151..STD198310-198508

LIGHT GRAY,GRAY,TRIM1#,8#

main63310-20420-05iAT151..STD198310-198508

BEIGE,BEIGE,TRIM3#

main63310-20430-03iST151..SED198508-198711

GRAY,GRAY,TRIM1#,8#

main63310-20430-03iAT151,CT150,ST150..SED..(GL,XL)..GEN198310-198711

CKD SPEC,LIGHT GRAY,GRAY,TRIM1#,8#

main63310-20430-05iCT150..GEN;AT151,ST150..SED..LHD..XL..GEN;AT151,ST150..SED..RHD..(GEN,TH)198508-198711

BEIGE,BEIGE,TRIM3#

main63310-20430-05iCT150..GEN;AT151,ST150..SED..LHD..XL..GEN;AT151,ST150..SED..RHD..(GEN,TH)198310-198711

CKD SPEC,BEIGE,BEIGE,TRIM3#

main63310-20440-03iST151..LB198508-198711

GRAY,GRAY,TRIM1#,8#

main63310-20440-03iST151..LB198310-198711

CKD SPEC,LIGHT GRAY,GRAY,TRIM1#,8#

main63310-20440-05iST150..LB..RHD;AT151..LB..5F..GL..GEN198310-198711

CKD SPEC,BEIGE,BEIGE,TRIM3#

main63310-20440-05iST150..LB..TH198508-198711

BEIGE,BEIGE,TRIM3#

main63310-20610-03iAT151..SED..RHD..GL..GEN198610-198711

INDONECIAL SPEC,GRAY,GRAY,TRIM1#,8#

main63310-20610-03iST150..SED..RHD..5F..GL198701-198711

MALAYSIA SPEC,GRAY,GRAY,TRIM1#,8#

main63310-20610-05iST150..SED..RHD..5F..GL198701-198711

MALAYSIA SPEC,BEIGE,BEIGE,TRIM3#

main63310-20610-05iAT151..SED..RHD..GL..GEN198610-198711

INDONECIAL SPEC,BEIGE,BEIGE,TRIM3#

main63310-20640-03iAT151,CT150,ST150..LB198609-198711

GRAY,GRAY,TRIM1#,8#

main63310-20640-05iAT151,CT150,ST150..LB198609-198711

BEIGE,BEIGE,TRIM3#

main63310-20650-03iAT151,CT150,ST150..SED198609-198711

GRAY,GRAY,TRIM1#,8#

main63310-20650-05iAT151,CT150,ST150..SED198609-198711

BEIGE,BEIGE,TRIM3#

63310DCLIP, ROOF HEADLINING

main90467-06017-01iAT151,CT150,ST15#198508-198711

BLACK,BLACK,TRIM1#,3#,8#

sub90467-06017

main90467-06017-25iAT151,CT150,ST150198310-198508

BEIGE,BEIGE,TRIM3#

sub90467-06017

main90467-06017-53iAT151,CT150,ST150198310-198508

GRAY,GRAY,TRIM1#,8#

sub90467-06017

63341PAD, ROOF SILENCER, NO.1

main63341-14030iAT151,CT150,ST150198310-198508

sub63341-22H92

main63341-20110iAT151,CT150,ST15#198508-198711

sub63341-22H92

63342PAD, ROOF SILENCER, NO.2

main63341-14030iAT151,CT150,ST150..SED198310-198508

sub63341-22H92

main63341-20080iAT151,CT150,ST15#..LB198310-198711

sub63341-22H92

main63341-20110iAT151,CT150,ST15#..SED198508-198711

sub63341-22H92

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-20090iAT151,CT150,ST15#198310-198711

sub63362-22060

63362SUPPORT, ROOF HEADLINING, NO.2

main63361-20090iAT151,CT150,ST15#198310-198711

sub63362-22060

63363SUPPORT, ROOF HEADLINING, NO.3

main63363-20030iAT151,CT150,ST15#198310-198711

sub63362-22060

63364SUPPORT, ROOF HEADLINING, NO.4

main63362-20060iAT151,CT150,ST15#..LB198310-198711

main63362-20080iAT151,CT150,ST15#..SED198310-198711

63381RETAINER, HEADLINING, FRONT

main63381-20050iAT151,CT150,ST15#198310-198711

main63381-20060iAT151,CT150,ST150198310-198508

W/SUN ROOF

sub63381-20050

63381ACLIP, HEADLINING RETAINER

main90468-04010iAT151,CT150,ST15#198310-198711

sub90468-04073

63391TRIM, ROOF HEADLINING, FRONT

main63391-20070-02iAT151,CT150,ST15#198310-198705

DEEP MAROON,RED/MAROON,TRIM3#

sub63391-20070

main63391-20070-03iAT151,CT150,ST15#198310-198705

SHADOW GRAY,GRAY,TRIM1#

sub63391-20070

main63391-20070-04iAT151,CT150,ST150198310-198508

BLUE,BLUE,TRIM8#

sub63391-20070

main63391-20070-14iAT151,CT150,ST15#198508-198705

BLUE,BLUE,TRIM8#

sub63391-20070

main63391-20080-02iAT151,CT150,ST15#198705-198711

DEEP MAROON,MAROON,TRIM3#

sub63391-20070

main63391-20080-03iAT151,CT150,ST15#198705-198711

SHADOW GRAY,GRAY,TRIM1#

sub63391-20070

main63391-20080-04iAT151,CT150,ST15#198705-198711

BLUE,BLUE,TRIM8#

sub63391-20070

63392TRIM, ROOF HEADLINING, REAR

main63305-20050-02iAT151,CT150,ST15#..LB198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

sub63305-20050

main63305-20050-03iAT151,CT150,ST15#..LB198310-198711

SHADOW GRAY,GRAY,TRIM1#

sub63305-20050

main63305-20050-04iAT151,CT150,ST150..LB198310-198508

BLUE,BLUE,TRIM8#

sub63305-20050

main63305-20050-14iAT151,CT150,ST15#..LB198508-198711

BLUE,BLUE,TRIM8#

sub63305-20050

9018904059

main90189-04059

9046804008

main90468-04008

9046804010

main90468-04010

9356014010

main93560-14010

16 parts on this diagram · 2 diagrams in section
