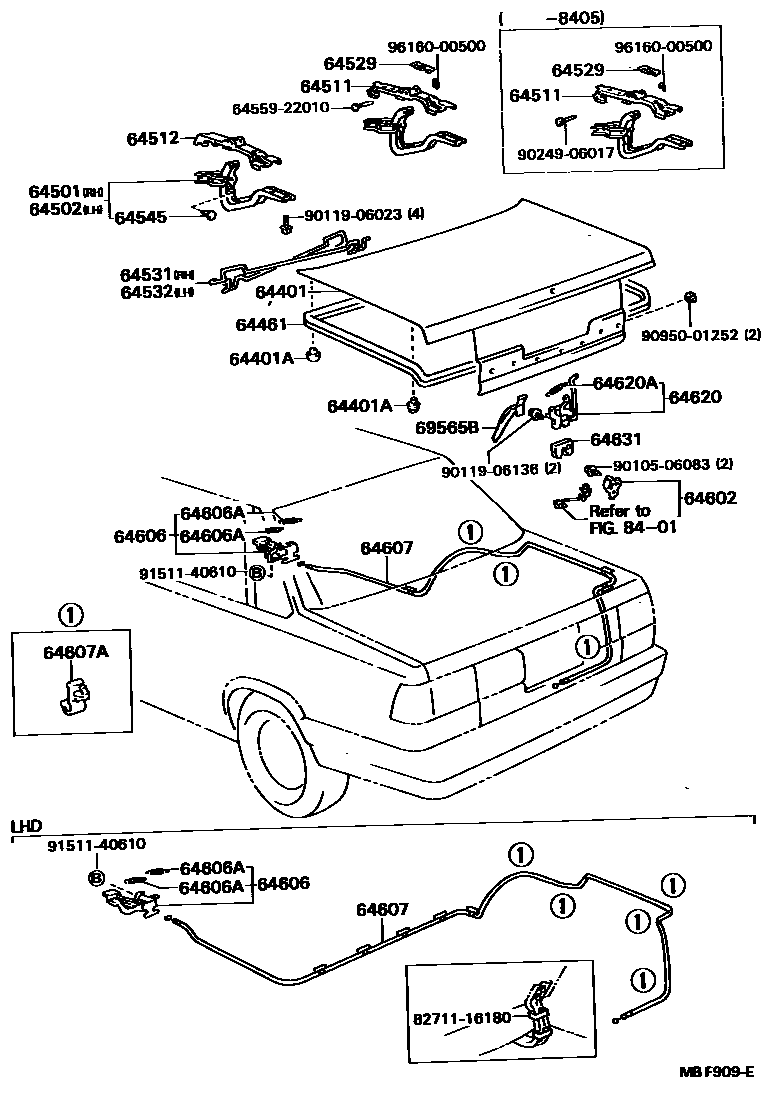

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-20540iAT151,CT150,ST150..SED..(GEN,SAA)198310-198508

*LPL=SIDE LIGHTING

main64401-20630iAT151,CT150,ST15#..SED..GEN198310-198711

*LPL=LOWER LIGHTING

main64401-20760iAT151,CT150,ST150..SED..GEN198310-198501

*GIS

sub64401-2B010

main64401-20840iAT151..SED..SDZ198310-198508

*GIS,*LPL=SIDE LIGHTING

main64401-2B010iAT151,CT150,ST150..SED..(EUR,TH)198501-198711

*GIS,*LPL=LOWER LIGHTING

main64401-2B010iAT151,CT150..SED..EUG198409-198501

main64401-2B170iAT151,CT150,ST150..SED..(GEN,SAA)198508-198711

*LPL=SIDE LIGHTING

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06076iAT151,CT150,ST15#..SED198310-198711

FR

sub90541-06056

main90541-09041iAT151,CT150,ST15#..SED198310-198711

RR

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-20150iAT151,CT150,ST15#..SED..(GEN,TH)198310-198711

main64461-20250iAT151,CT150,ST150..SED..(EUR,SAA)198506-198601

sub64461-20150

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-20100iAT151,CT150,ST15#..SED198310-198711

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64510-20100iAT151,CT150,ST15#..SED198310-198711

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-20070iAT151,CT150,ST15#..SED198310-198711

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-20070iAT151,CT150,ST15#..SED198310-198711

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-20010iAT151,CT150,ST15#..SED198310-198711

T=1.0

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-20100iAT151,CT150,ST15#..SED198310-198711

sub64531-20120

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-20100iAT151,CT150,ST15#..SED198310-198711

sub64532-20120

64545CUSHION, LUGGAGE DOOR HINGE

main90541-07016iAT151,CT150,ST15#..SED198310-198711

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-12060iAT151,CT150,ST150..SED..(STD,XL)198310-198711

main64620-12070iAT151,CT150,ST150..SED..(DX,GL)198310-198508

sub64621-12060

sub84231-12030

main64620-20050iAT151,CT150,ST15#..SED..(DX,GL)198508-198711

sub64621-12060

sub84231-20110

sub93315-15010

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-14030iAT151,ST150..SED..(3FC,5F)..TH198310-198711

main64606-14050iAT151,CT150,ST150..SED..LHD..(GL,XL)..(GEN,SAA)198310-198711

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004iAT151,CT150,ST150..SED..(GL,XL)..(GEN,SAA)198310-198711

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-20120iAT151,ST150..SED..(3FC,5F)..TH198310-198711

main64607-20140iAT151,CT150,ST150..SED..LHD..(GL,XL)..(GEN,SAA)198310-198711

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010iAT151,CT150,ST150..SED..(GL,XL)..(GEN,SAA)198310-198711

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-20050iAT151,CT150,ST150..SED198310-198711

main64610-20110iAT151,CT150,ST15#..SED..(EUR,GEN,SAA)198508-198711

W/CANCEL

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-08001iAT151,CT150,ST15#..SED198310-198711

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-12010iAT151..SED..LHD..4FC;AT151,CT150,ST150..SED..(3FC,4F,5F)198310-198403

main64631-91D01iAT151,CT150,ST15#..SED198403-198711

69565BFUNNEL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69565-12010iAT151,CT150,ST15#..SED198310-198711

8401

6455922010PIN, LUGGAGE DOOR HINGE

main64559-22010

8271116180WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16180

9010506083

main90105-06083

9011906023

main90119-06023

9011906136

main90119-06136

9024906017

main90249-06017

9095001252

main90950-01252

9151140610

main91511-40610

9616000500

main96160-00500

30 parts on this diagram · 1 diagram in section
