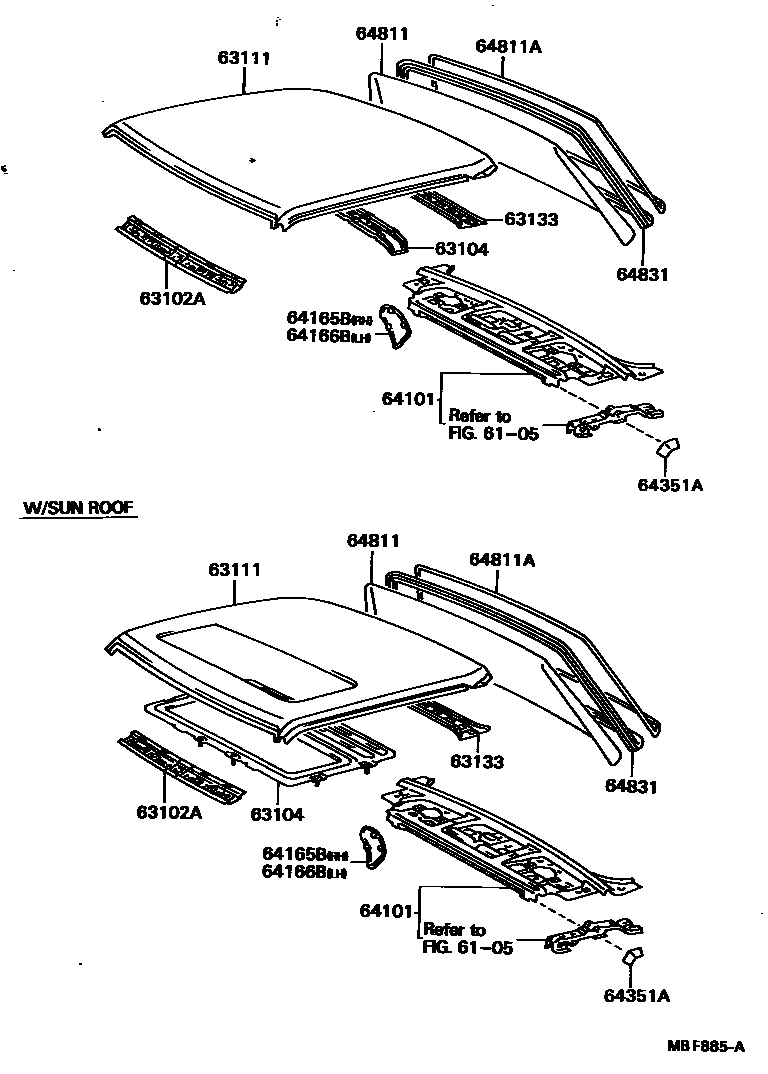

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

6105

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-20060iAT151,CT150,ST15#198310-198711

main63102-20070iAT151,ST150..SED..RHD..GL..GEN198603-198711

LUXURY PACKAGE

main63102-20070iST150..SED..RHD..5F..GL198610-198711

MALAYSIA SPEC

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-20070iAT151,CT150,ST15#198310-198711

W/O SUN ROOF

main63103-20080iAT151,ST150..SED..RHD..GL..GEN198603-198711

LUXURY PACKAGE,W/O SUN ROOF

main63103-20080iST150..SED..RHD..5F..GL198610-198711

MALAYSIA SPEC

main63142-20020iAT151,CT150,ST150..EUR,GEN,SAA198310-198711

W/SUN ROOF

63111PANEL, ROOF

main63111-20150iAT151,CT150,ST15#..LB198310-198711

W/O SUN ROOF

main63111-20160iAT151,CT150,ST15#..SED198310-198711

W/O SUN ROOF

main63111-20170iAT151,CT150,ST150..SED..(EUR,GEN,SAA)198310-198711

W/SUN ROOF

main63111-20180iAT151,CT150,ST150..LB..(EUR,GEN,SAA)198310-198711

W/SUN ROOF

63133FRAME, BACK WINDOW OPENING, UPPER

main63133-20090iAT151,CT150,ST15#..SED198310-198711

64101PANEL SUB-ASSY, UPPER BACK

main64101-20190iAT151,CT150,ST15#..SED198310-198711

main64101-20250iST150..SED..RHD..GL198608-198711

THAI LAND SPEC

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-20010iAT151,CT150,ST150..SED198310-198711

64166BCOVER, UPPER BACK PANEL HOLE, NO.2

main64166-20010iAT151,CT150,ST150..SED198310-198711

64351APAD, PACKAGE TRAY TRIM, NO.1

main64351-20030iAT151..SED..RHD;CT150,ST150..SED;AT151..SED..LHD..EUG;AT151..SED..LHD..(GEN,SAA)198310-198711

64811GLASS, BACK WINDOW

main64811-20470iAT151,CT150,ST15#..SED..(EUR,GEN,SAA)198310-198711

*EHTT,T=3.5

main64811-20480iAT151..STD198310-198711

*TEM,T=3.5

main64811-20500iAT151,CT150,ST15#..SED..(GEN,SAA)198310-198711

*TT,T=3.5

sub64811-20470

main64811-20520iAT151,CT150..SED..EUG198310-198711

*EHTT,T=3.5,W/HEAVY *DEF

main64811-20600iAT151..STD198310-198508

*EHT,T=3.5

64811ASEAL, BACK WINDOW GLASS WEATHERSTRIP

main64814-20010iAT151,CT150,ST15#..SED198310-198711

main64814-20030iAT151,CT150,ST15#..SED198603-198612

sub64814-20010

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-20030iAT151,CT150,ST15#..SED198310-198711

W/O SUN ROOF

main64812-20040iAT151,CT150,ST150..SED..(EUR,GEN,SAA)198310-198711

W/SUN ROOF

12 parts on this diagram · 3 diagrams in section
