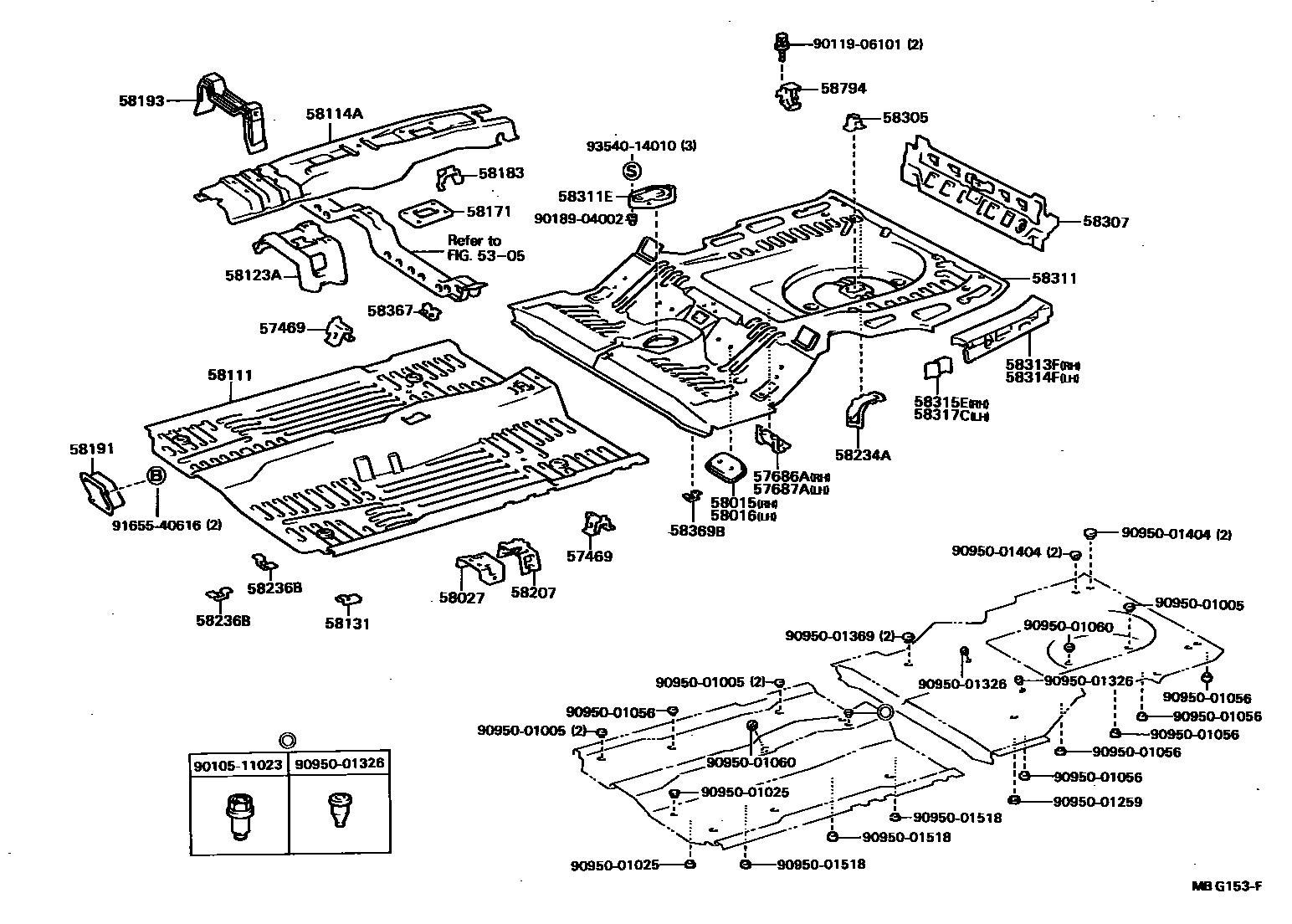

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

5305

57469BRACKET, FRONT SEAT, OUTSIDE

main57468-20030iAT151,CT150,ST15#198310-198711

RH

main57469-20030iAT151,CT150,ST15#198310-198711

LH

57686ABRACKET, FUEL TANK MOUNTING, REAR RH

main57686-32010iAT151,CT150,ST15#198310-198711

57687ABRACKET, FUEL TANK MOUNTING, REAR LH

main57687-32010iAT151,CT150,ST15#198310-198711

58015REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH

main58015-32010iAT151..GEN,SAA,TH198310-198711

main58015-32020iCT150,ST150..SED..RHD..GEN198310-198711

58016REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH

main58015-32020iCT150,ST150..SED..RHD..GEN198310-198711

main58016-32010iCT150,ST150..LHD..(GEN,SAA)198310-198711

58027REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1

main58027-20020iAT151,CT150,ST150198310-198507

main58027-20021iAT151,CT150,ST15#198507-198711

58111PAN, FRONT FLOOR

main58111-20060iAT151,CT150,ST150198310-198507

sub58111-20061

sub58027-20021

sub58114-20011

sub58207-20080

main58111-20061iAT151,CT150,ST15#198507-198711

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-20010iAT151,CT150,ST150198310-198507

sub58114-20011

main58114-20011iAT151,CT150,ST15#198507-198711

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-20010iAT151,CT150,ST15#198310-198711

58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-20040iAT151,CT150,ST15#198310-198711

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-20040iAT151,CT150,ST15#198310-198711

58183BRACKET, FRONT SEAT MOUNTING, INNER

main58183-20040iAT151,CT150,ST15#198310-198711

RH

main58184-20040iAT151,CT150,ST15#198310-198711

LH

58191FOOTREST, FRONT FLOOR

main58191-20010iAT151,CT150,ST150..RHD..(GL,XL)198310-198711

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-20050iAT151,CT150,ST15#..EUR,GEN,SAA198508-198711

58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1

main58207-20060iAT151,CT150,ST150198310-198507

main58207-20080iAT151,CT150,ST15#198507-198711

58234ABRACKET, EXHAUST PIPE MOUNTING, INNER

main58234-32010iAT151,CT150,ST15#198310-198711

58236BBRACKET, CENTER FLOOR HEAT INSULATOR

main58236-14010iAT151,CT150,ST15#198310-198711

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iAT151,CT150,ST15#198310-198711

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-20400iAT151,CT150,ST15#..LB198310-198711

main58307-20410iAT151,CT150,ST15#..SED198310-198711

58311PAN, REAR FLOOR

main58311-32010iAT151,CT150,ST15#..SED198310-198711

main58311-32030iAT151,CT150,ST15#..LB198310-198711

58311ECOVER, REAR FLOOR SERVICE HOLE

main58325-32010iAT151,CT150,ST15#198310-198711

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-20090iAT151,CT150,ST15#..LB198310-198711

main58313-20100iAT151..SED..LHD..4FC;AT151,CT150,ST150..SED..(3FC,4F,5F)198310-198511

sub58313-20130

main58313-20130iAT151,CT150,ST15#..SED198409-198711

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-20070iAT151,CT150,ST15#..LB198310-198711

main58314-20080iAT151..SED..LHD..4FC;AT151,CT150,ST150..SED..(3FC,4F,5F)198310-198511

sub58314-20110

main58314-20110iAT151,CT150,ST150..SED..EUR198409-198711

58315EEXTENSION REAR FLOOR SIDE PANEL, FRONT RH

main58315-32010iAT151,CT150,ST15#..SED198310-198711

58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH

main58317-32010iAT151,CT150,ST15#..SED198310-198711

58367BRACKET, FUEL TUBE CLAMP

main58367-20030iAT151,CT150,ST15#198310-198711

58369BBRACKET, FUEL TUBE, NO.3

main58369-30010iAT151,CT150,ST15#198310-198711

sub58369-30040

58794CARRIER, JACK

main58791-20010iAT151,CT150,ST150198310-198508

main58791-20030iAT151,CT150,ST15#198508-198711

9010511023

main90105-11023

9011906101

main90119-06101

9018904002

main90189-04002

9095001005

main90950-01005

9095001025

main90950-01025

9095001056

main90950-01056

9095001060

main90950-01060

9095001259

main90950-01259

9095001326

main90950-01326

9095001369

main90950-01369

9095001404

main90950-01404

9095001518

main90950-01518

9165540616

main91655-40616

9354014010

main93540-14010

43 parts on this diagram · 2 diagrams in section
