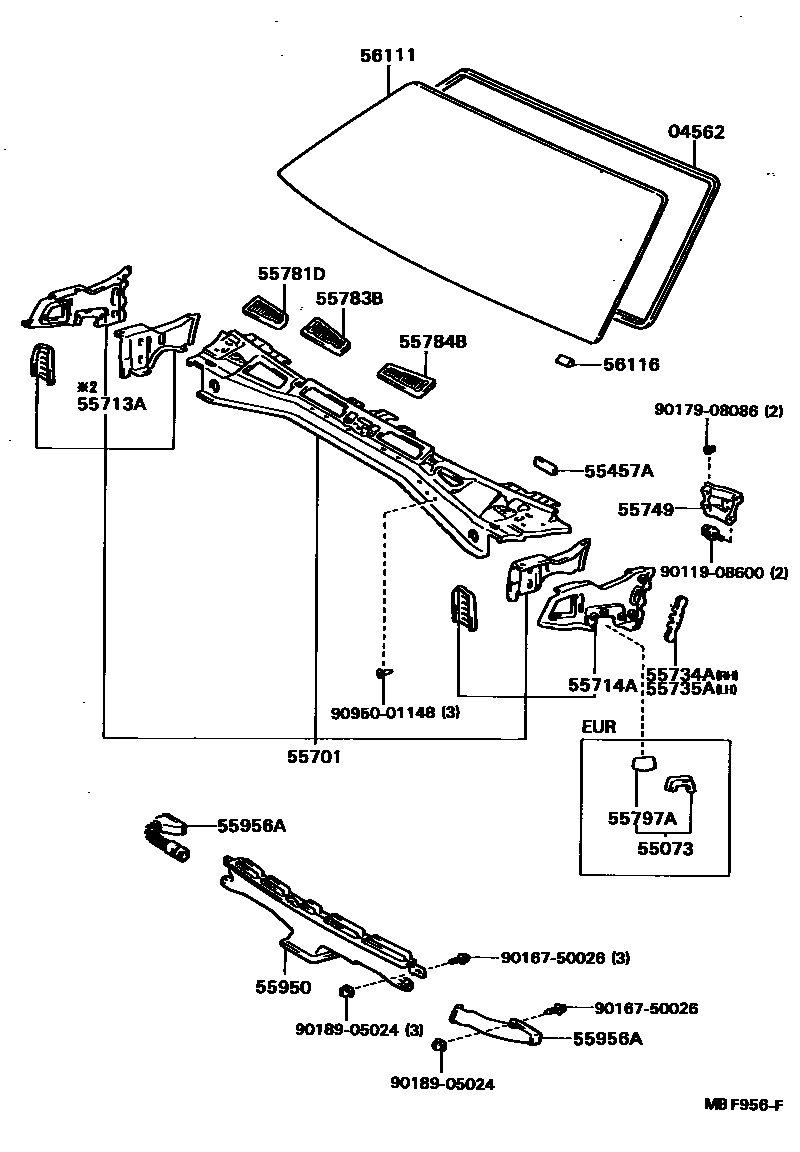

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

04562DAM KIT, WINDSHIELD GLASS

main04562-14010iAT151,CT150,ST15#¥2,220198310-198711

sub04562-30040¥2,390

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-20020iAT151,CT150,ST150..EUR¥740198310-198711

55457ASPACER, INSTRUMENT PANEL SAFETY PAD

main55457-22030iAT151,CT150,ST15#¥190198310-198711

55701PANEL SUB-ASSY, COWL

main55700-20320iST150..RHD198310-198508

main55700-20321iST150..RHD198508-198711

main55700-20350iAT151..RHD198310-198508

main55700-20351iAT151..RHD..(GEN,TH)¥40,600198508-198711

main55700-20360iAT151..LHD198310-198508

main55700-20361iAT151..LHD¥40,600198508-198711

main55700-20370iCT150..RHD198310-198508

main55700-20371iCT150..RHD..GEN¥40,600198508-198711

main55700-20390iCT150,ST150..LHD198503-198508

main55700-20391iST150..LHD..(GEN,SAA)198508-198711

main55700-20400iST150..LHD¥37,100198310-198503

sub55700-20390

main55700-20531iST150..EUG¥40,600198508-198711

main55700-20541iST151198508-198711

main55700-20570iAT151..RHD..EUG¥40,600198508-198711

main55700-20610iCT150..RHD..EUG198508-198711

55713APANEL, COWL TOP SIDE, RH

main55713-20060iAT151,CT150,ST15#¥2,710198408-198711

55714APANEL, COWL TOP SIDE, LH

main55714-20060iAT151,CT150,ST15#¥2,710198408-198711

55734APLATE, WATER GUARD, RH

main55734-20060iAT151,CT150,ST150¥530198310-198508

main55734-20060iAT151,CT150,ST15#¥530198609-198711

TYPE B

main55734-20080iAT151,CT150,ST15#¥510198508-198711

TYPE A

55735APLATE, WATER GUARD, LH

main55734-20080iAT151,CT150,ST15#¥510198508-198711

TYPE A

main55735-20040iAT151,CT150,ST150¥660198310-198508

main55735-20040iAT151,CT150,ST15#¥660198609-198711

TYPE B

55749BRACE, COWL TOP TO PILLAR, LH

main55749-20030iAT151,CT150,ST15#..RHD198310-198711

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-20100iAT151,CT150,ST15#..RHD¥800198310-198711

sub55781-20150¥840

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-20060iAT151,CT150,ST15#¥1,800198310-198711

sub55783-20110¥1,790

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-20030iAT151,CT150,ST15#¥1,800198310-198711

sub55784-20080¥1,790

55797ASEAL, COWL WATER EXTRACT

main55797-20030iAT151,CT150,ST150..EUR¥260198310-198711

55950NOZZLE ASSY, DEFROSTER

main55950-20040iAT151,CT150,ST15#..RHD¥6,800198310-198711

main55950-20050iAT151,CT150,ST150..LHD¥6,800198310-198708

sub55950-20051¥6,400

main55950-20051iAT151,CT150,ST150..LHD¥6,400198708-198711

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55970-20030iAT151,CT150,ST150..RHD¥2,360198310-198711

LH

main55970-20040iAT151,CT150,ST150..LHD¥2,250198310-198711

RH

main55970-20060iAT151,CT150..RHD..EUG¥2,250198508-198711

main55971-20040iAT151,CT150,ST15#..RHD¥1,090198310-198509

RH

sub55971-20041¥1,180

main55971-20040iAT151,CT150,ST150..LHD¥1,090198310-198509

LH

sub55971-20041¥1,180

main55971-20041iAT151,CT150,ST15#..RHD¥1,180198509-198711

LH

main55971-20041iAT151,CT150,ST150..LHD¥1,180198509-198711

RH

56111GLASS, WINDSHIELD

main56111-20380iAT151..GEN,TH;AT151..EUG,FRG;CT150,ST15#..EUR,GEN,TH¥50,600198310-198711

*TZT,T=5.0

sub56111-20420¥96,700

main56111-20400iAT151,CT150,ST150..GL..EUR¥105,000198310-198711

*TL,T=5.3,W/SUN SHADE

main56111-20410iAT151..STD¥45,000198310-198711

*ZT,T=5.0

sub56111-20520¥92,500

main56111-20420iAT151,CT150,ST15#..EUR,GEN,SAA¥96,700198310-198711

*TL,T=5.3

sub56111-20400¥105,000

main56111-20440iST150..RHD..GL¥84,700198506-198711

*NZ,*LAM,T=5.3

sub56111-20400¥105,000

main56111-20440iAT151..LHD..STD¥84,700198310-198508

*LAM,T=5.3

sub56111-20400¥105,000

main56111-20520iST151¥92,500198508-198711

*NZ,*LAM,T=5.3

56116SPACER, WINDSHIELD GLASS

main56116-14070iAT151,CT150,ST15#¥250198310-198711

sub56116-32030¥250

9011908600

main90119-08600¥180

9016750026

main90167-50026¥70

9017908086

main90179-08086¥160

9018905024

main90189-05024¥130

9095001148

main90950-01148¥120

22 parts on this diagram · 2 diagrams in section
