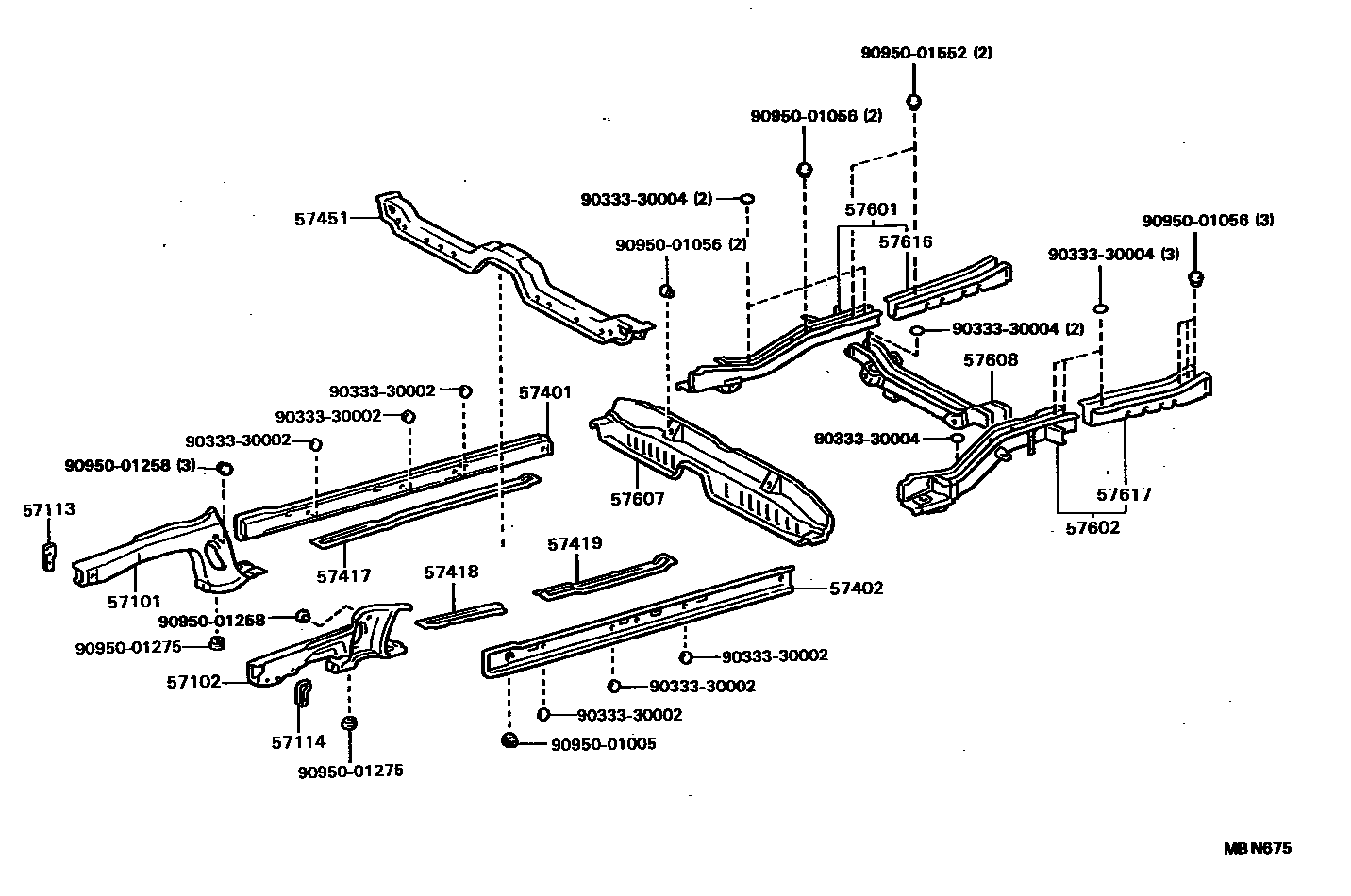

FLOOR SIDE MEMBER

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-12280iCT150,ST150..GEN198310-198402

sub57101-12281

main57101-12281iCT150,ST15#..GEN,TH198402-198711

sub57101-20381

main57101-12290iAT151..GEN198310-198402

sub57101-12291

main57101-12291iAT151..GEN,TH198402-198711

sub57101-20391

main57101-20380iCT150,ST150..EUR,SAA198310-198402

sub57101-20381

main57101-20381iCT150,ST150..EUR,SAA198402-198711

main57101-20390iAT151..LB..4FC;AT151..SED..LHD..4FC;AT151..(3FC,4F,5F)..EUR198310-198402

sub57101-20391

main57101-20391iAT151..EUR,SAA198402-198711

main57101-20510iCT150,ST150..GEN198603-198711

HARSH ROAD PACKAGE

main57101-20520iAT151..GEN198603-198711

HARSH ROAD PACKAGE

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-12280iCT150,ST150..GEN198310-198402

sub57102-12281

main57102-12281iCT150,ST15#..GEN,TH198402-198711

sub57102-20361

main57102-20340iAT151..LB..4FC;AT151..SED..LHD..4FC;AT151..(3FC,4F,5F)..EUR198310-198402

sub57102-20341

main57102-20341iAT151..EUR,SAA198402-198711

main57102-20350iAT151..GEN198310-198402

sub57102-20351

main57102-20351iAT151..GEN,TH198402-198711

sub57102-20341

main57102-20360iCT150,ST150..EUR,SAA198310-198402

sub57102-20361

main57102-20361iCT150,ST150..EUR,SAA198402-198711

main57102-20500iCT150,ST150..GEN198603-198711

HARSH ROAD PACKAGE

main57102-20510iAT151..GEN198603-198711

HARSH ROAD PACKAGE

sub57102-12340

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-12090iAT151,CT150,ST15#198310-198711

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-12090iAT151,CT150,ST15#198310-198711

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-20180iAT151,CT150,ST150..GEN198310-198505

sub57401-20190

main57401-20190iAT151,CT150,ST150..EUR,SAA198310-198711

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-20180iAT151,CT150,ST150..GEN198310-198505

sub57402-20190

main57402-20190iAT151,CT150,ST150..EUR,SAA198310-198711

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-20030iAT151,CT150,ST15#198310-198711

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-20040iAT151,CT150,ST15#198310-198711

57419REINFORCEMENT, FRONT FLOOR UNDER, LH NO.2

main57419-20020iAT151,CT150,ST15#198310-198711

57451MEMBER, FRONT FLOOR CROSS

main57408-20010iAT151,CT150,ST15#198310-198711

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-20140iAT151,CT150,ST15#..DX,GL,XL198310-198711

W/*UB

sub57601-20150

main57601-20150iAT151,CT150..SED..EUR198310-198711

W/PP BUMPER

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-20130iAT151,ST150..XL..TH198310-198711

W/PP BUMPER

main57602-20140iAT151,CT150,ST15#..DX,GL,XL198310-198711

W/*UB

sub57602-20130

57607CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1

main57605-32010iAT151,CT150,ST15#198310-198711

57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2

main57606-20060iAT151,CT150,ST15#198310-198711

57616MEMBER, REAR FLOOR SIDE, REAR RH

main57615-32901iAT151,CT150,ST15#198310-198711

57617MEMBER, REAR FLOOR SIDE, REAR LH

main57616-32901iAT151,CT150,ST15#198310-198711

9033330002

main90333-30002

9033330004

main90333-30004

9095001005

main90950-01005

9095001056

main90950-01056

9095001258

main90950-01258

9095001275

main90950-01275

9095001552

main90950-01552

23 parts on this diagram · 1 diagram in section
