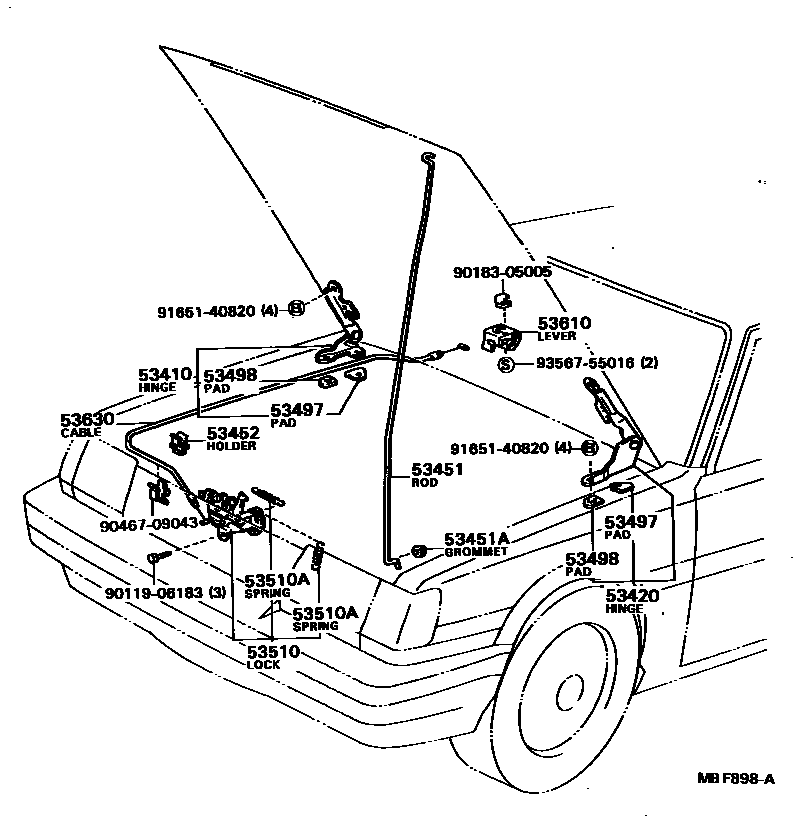

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-12050iAT151,CT150,ST15#198504-198711

sub53410-12051

main53410-12080iAT151,CT150,ST150198310-198504

sub53410-12050

53420HINGE ASSY, HOOD, LH

main53420-12040iAT151,CT150,ST15#198504-198711

sub53420-12041

main53420-12070iAT151,CT150,ST150198310-198504

sub53420-12040

53451ROD, HOOD SUPPORT

main53451-20020iAT151,CT150,ST15#..GEN,SAA,TH198310-198711

sub53451-20050

main53451-20050iAT151,CT150,ST150198503-198711

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15011iAT151,CT150,ST15#198310-198711

53452HOLDER, HOOD STAY

main53452-90351iAT151,CT150,ST15#198310-198711

53497PAD, HOOD HINGE, NO.1

main53497-12010iAT151,CT150,ST15#198310-198711

T=1.0

sub53497-12011

53498PAD, HOOD HINGE, NO.2

main53498-12010iAT151,CT150,ST15#198310-198711

sub53498-12011

53510LOCK ASSY, HOOD

main53510-20130iAT151,CT150,ST15#..RHD198310-198711

main53510-20150iAT151,CT150,ST150..LHD198310-198711

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029iAT151,CT150,ST15#198310-198711

WD=0.9,WD=0.9,OD=9.0

main90506-20008iAT151,CT150,ST15#198310-198711

WD=2.0,CW=17,WD=2.0,OD=1.5

53610LEVER ASSY, HOOD LOCK RELEASE

main53601-20060-02iAT151,CT150,ST15#198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

sub53601-20060

main53601-20060-03iAT151,CT150,ST15#198310-198711

SHADOW GRAY,GRAY,TRIM1#

sub53601-20060

main53601-20060-14iAT151,CT150,ST150198310-198508

BLUE,BLUE,TRIM8#

sub53601-20060

main53601-20060-34iAT151,CT150,ST15#198508-198711

BLUE,BLUE,TRIM8#

sub53601-20060

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-20140iAT151,CT150,ST15#198310-198711

9011906183

main90119-06183

9018305005

main90183-05005

9046709043

main90467-09043

9165140820

main91651-40820

9356755016

main93567-55016

16 parts on this diagram · 1 diagram in section
