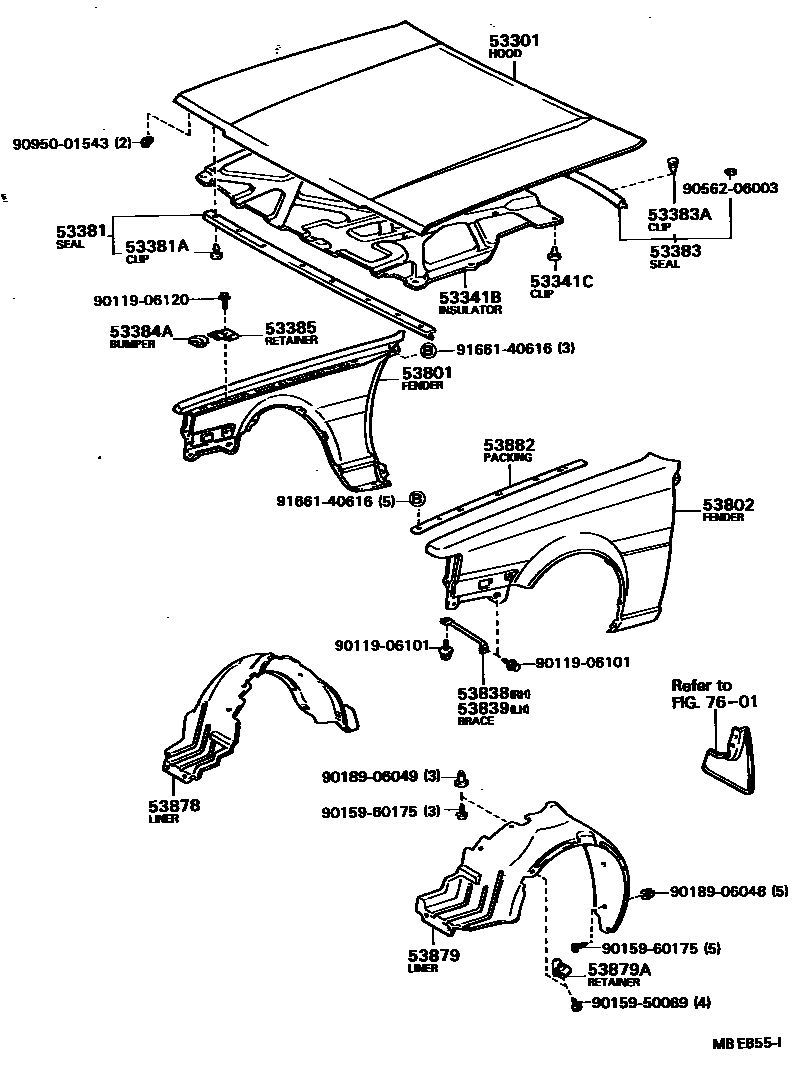

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-20180iAT151,CT150,ST15#198310-198711

53341BINSULATOR, HOOD

main53341-20080iCT150198310-198312

main53341-20081iCT150198312-198711

sub53341-20110

53341CCLIP(FOR HOOD INSULATOR)

main90467-09008-01iCT150198310-198711

BLACK,BLACK

sub90467-09008

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-20070iAT151,CT150,ST15#198310-198711

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iAT151,CT150,ST15#198310-198711

53383SEAL, HOOD TO COWL TOP

main53383-20050iAT151,CT150,ST15#198310-198711

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08044iAT151,CT150,ST150198310-198311

sub90467-08011

main90467-08044iAT151,CT150,ST15#198311-198711

CENTER

sub90467-08011

main90467-08050iAT151,CT150,ST15#198311-198711

SIDE

53384ABUMPER, FENDER TO HOOD

main53384-14030iAT151,CT150,ST15#198310-198711

53385RETAINER, HOOD, BUMPER

main53385-14010iAT151,CT150,ST15#198310-198711

RH

main53386-14010iAT151,CT150,ST15#198310-198711

LH

53801FENDER SUB-ASSY, FRONT RH

main53801-20710iAT151,CT150,ST150..EUR198310-198711

main53801-20730iAT151,CT150,ST150..GEN,SAA198310-198711

main53801-20740iAT151,CT150,ST15#..SED..RHD..(GEN,TH)198310-198711

*GIS

53802FENDER SUB-ASSY, FRONT LH

main53802-20720iAT151,CT150,ST150..EUR198310-198711

main53802-20740iAT151,CT150,ST150..GEN,SAA198310-198711

main53802-20750iAT151,CT150,ST150..SED..(GL,XL)..GEN198310-198711

*GIS

53838BRACE, FRONT FENDER, RH

main53835-20030iAT151,CT150,ST15#198310-198711

53839BRACE, FRONT FENDER, LH

main53835-20030iAT151,CT150,ST15#198310-198711

53878LINER, FRONT FENDER, RH

main53875-20060iAT151,CT150,ST15#198310-198711

53879LINER, FRONT FENDER, LH

main53876-20070iAT151,CT150,ST15#198310-198711

53879ARETAINER, FRONT FENDER LINER

main53879-14010iAT151,CT150,ST15#198310-198711

53882PACKING, FRONT FENDER MAIN

main53882-20050iAT151,CT150,ST15#198310-198711

7601

9011906101

main90119-06101

9011906120

main90119-06120

9015950069

main90159-50069

9015960175

main90159-60175

9018906048

main90189-06048

9018906049

main90189-06049

9056206003

main90562-06003

9095001543

main90950-01543

9166140616

main91661-40616

27 parts on this diagram · 1 diagram in section
