SPARE WHEEL CARRIER

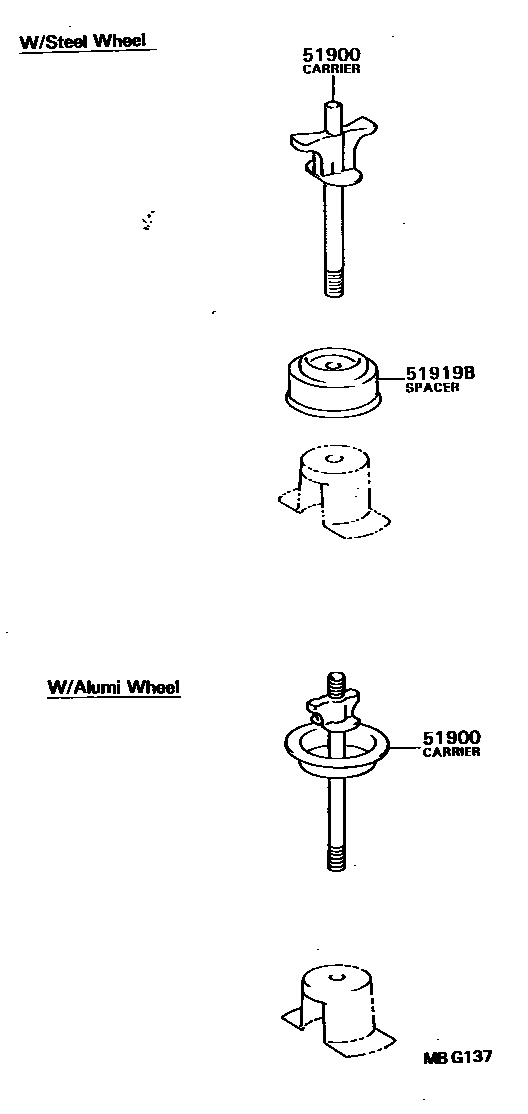

Parts diagram

51900CARRIER ASSY, SPARE WHEEL

main51900-32010i198310-198711

W/STEEL WHEEL

main51900-32020i198310-198711

W/ALMINIUM WHEEL

51919BSPACER, SPARE WHEEL CARRIER

main51919-32010i198310-198711

W/STEEL WHEEL

2 parts on this diagram · 1 diagram in section
