SUSPENSION CROSSMEMBER & UNDER COVER

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20010iAT151,CT150,ST15#198310-198612

sub51204-20011

main51204-20011iAT151,CT150,ST15#198612-198711

main51204-20040iAT151,CT150,ST150..GEN,SAA198603-198711

HARSH ROAD PACKAGE

sub51204-20041

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-20010iAT151,CT150,ST15#198310-198711

51212CROSSMEMBER, FRONT SUSPENSION, LOWER

main51212-20070iAT151,CT150,ST150..GEN,SAA198603-198711

HARSH ROAD PACKAGE

51223ACOVER, ENGINE MOUNTING HOLE

main51223-20020iAT151,CT150,ST15#198310-198711

sub51223-20030

51441COVER, ENGINE UNDER, NO.1

main51408-12010iAT151,CT150,ST150..GEN,SAA198412-198711

HARSH ROAD PACKAGE

main51408-20010iAT151,CT150,ST150..GEN,SAA198405-198412

HARSH ROAD PACKAGE

sub51408-12010

main51441-20080iAT151,CT150,ST15#198310-198711

51442COVER, ENGINE UNDER, NO.2

main51409-20010iAT151,CT150,ST150..GEN,SAA198405-198711

HARSH ROAD PACKAGE

main51442-20010iAT151,CT150,ST15#..MTM198310-198711

main51442-20020iAT151,ST15#..ATM198310-198711

51447GUIDE, ENGINE UNDER COVER AIR

main51447-12070iAT151198310-198711

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20010iAT151,CT150,ST150198310-198508

main51448-20030iAT151,CT150,ST15#198508-198711

51961HOOK, NO.1

main51963-20060iAT151,CT150,ST15#198310-198711

51962HOOK, NO.2

main51095-20030iAT151,CT150,ST150..SED..(EUR,GEN)198310-198711

52225ACUSHION, CENTER MEMBER MOUNTING, FRONT UPPER

main52225-20010iAT151,CT150,ST150198310-198508

main52225-20030iAT151,CT150,ST15#198508-198711

sub52225-20050

52230ACUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER

main52230-20010iAT151,CT150,ST150198310-198508

main52230-20030iAT151,CT150,ST15#198508-198711

52236CUSHION, CENTER MEMBER MOUNTING, REAR LOWER

main52236-20010iAT151,CT150,ST150198310-198508

main52236-20030iAT151,CT150,ST15#198508-198711

sub52236-20050

52240CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT LOWER

main52240-20010iAT151,CT150,ST150198310-198508

main52240-20030iAT151,CT150,ST15#198508-198711

sub52240-20050

9010910060

main90109-10060

9011906073

main90119-06073

9011906274

main90119-06274

9011910348

main90119-10348

9011910450

main90119-10450

9011914021

main90119-14021

9015960175

main90159-60175

9017906183

main90179-06183

9018306002

main90183-06002

9018906048

main90189-06048

9161961225

main91619-61225

9162261020

main91622-61020

9165160820

main91651-60820

9165561020

main91655-61020

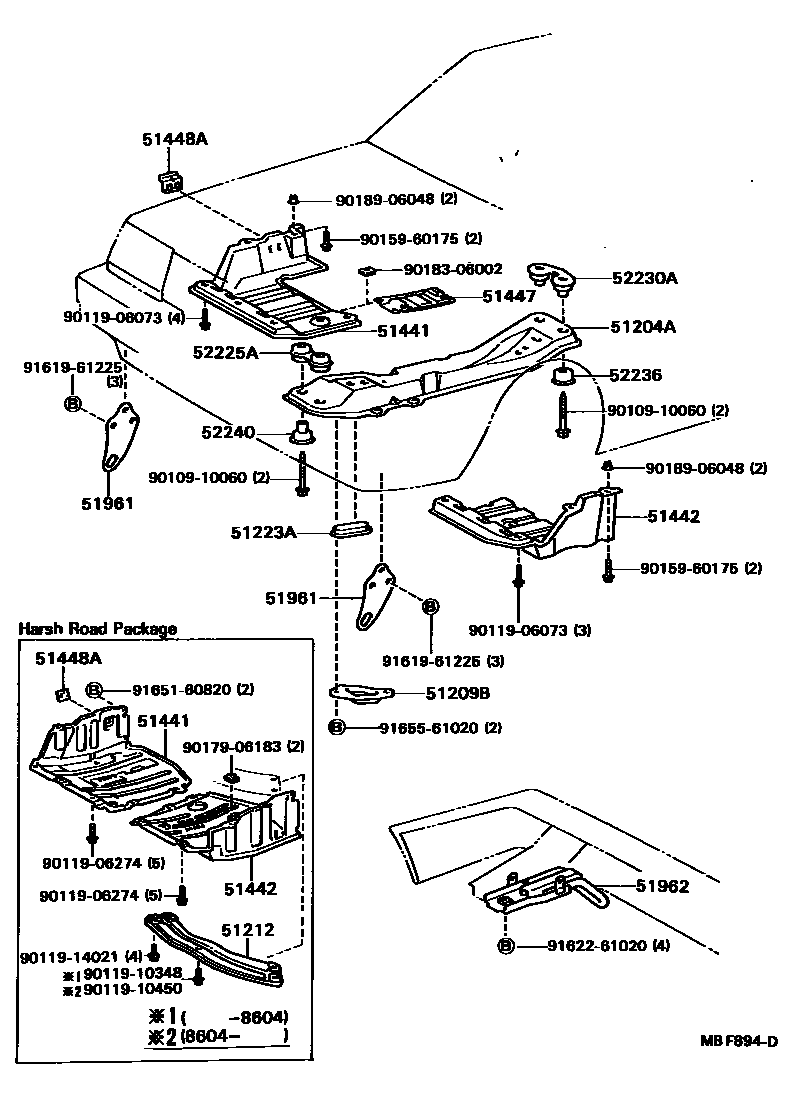

28 parts on this diagram · 1 diagram in section
