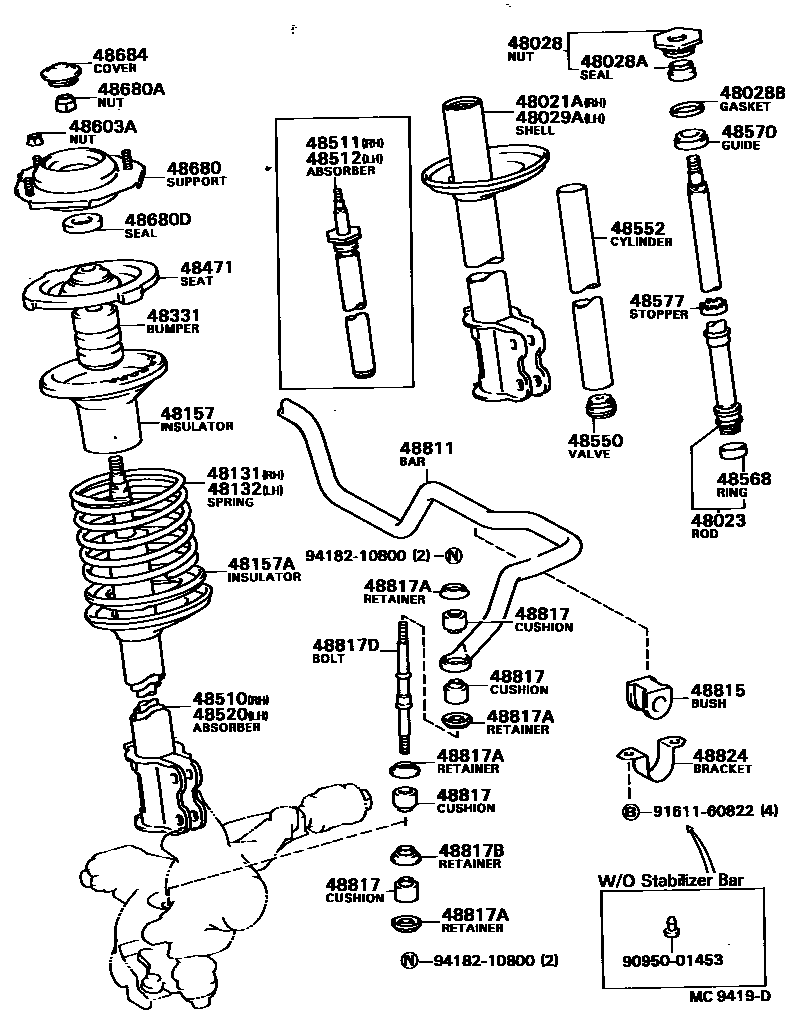

FRONT SPRING & SHOCK ABSORBER

48021ASHELL SUB-ASSY, FRONT SHOCK ABSORBER, RH

main48021-12181iAT151198310-198505

main48021-20121iCT150,ST150198310-198505

48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)

main48023-12290iAT151..GEN198310-198505

main48023-20110iCT150,ST150..GEN,SAA198310-198505

main48023-20160iAT151..EUR198310-198505

main48023-20270iCT150,ST150..GEN,SAA198403-198505

HARSH ROAD PACKAGE

main48023-20280iAT151..GEN;AT151..SED..LHD..5F..EUG198403-198505

HARSH ROAD PACKAGE

48028NUT SUB-ASSY, SHOCK ABSORBER RING

main48028-10020iAT151198310-198505

sub48028-17010

main48028-14011iCT150,ST150..GEN,SAA198310-198505

sub48028-14012

48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)

main90316-20006iAT151198310-198505

main90316-22001iCT150,ST150..GEN,SAA198310-198505

48028BGASKET(FOR SHOCK ABSORBER RING NUT)

main90430-36002iAT151..LB..4FC;AT151..3FC,4F,5F;AT151..SED..LHD..4FC198310-198408

sub90430-37003

main90430-37003iAT151198408-198505

main90430-43206iCT150,ST150..GEN,SAA198310-198505

48029ASHELL SUB-ASSY, FRONT SHOCK ABSORBER, LH

main48029-12061iAT151198310-198505

main48029-20121iCT150,ST150198310-198505

48131SPRING, FRONT COIL, RH

main48131-1A680iAT151..MTM..(GEN,SAA)198310-198711

main48131-1A700iAT151..3FC..GEN198310-198711

sub48131-1E350

main48131-1E510iAT151..3FC..GEN198403-198412

HARSH ROAD PACKAGE

sub48131-1E520

main48131-1E520iAT151..3FC..GEN198412-198711

HARSH ROAD PACKAGE

main48131-2B161iAT151..MTM..EUR198310-198711

main48131-2B181iAT151..LHD..ATM..EUR198310-198711

main48131-2B210iAT151..MTM..(GEN,SAA)198403-198711

HARSH ROAD PACKAGE

main48131-2B210iAT151..TH198508-198608

main48131-2B251iAT151..SED..LHD..5F..EUG198403-198711

HARSH ROAD PACKAGE

main48131-2B251iAT151..RHD..4FC198502-198711

main48131-2B400iST150..MTM198310-198501

sub48131-2B401

main48131-2B420iST150..5F..SAA198403-198501

sub48131-2B421

main48131-2B421iST150..MTM..(GEN,SAA)198501-198711

sub48131-1A640

main48131-2B440iST150..MTM..GEN198403-198711

HARSH ROAD PACKAGE

main48131-2B440iST150..ATM198310-198711

main48131-2B461iST150..5F..EUG198511-198711

main48131-2B491iST150..5F..EUG198508-198711

main48131-2B522iST151..5F198508-198711

main48131-2B651iST150..4FC198508-198511

main48131-2B662iST151..4FC198508-198711

main48131-2B680iST150..3FC..SAA198510-198711

HARSH ROAD PACKAGE

main48131-2B680iST150..3FC..TH198510-198608

main48131-2B690iST150..RHD..3FC..GEN198403-198510

HARSH ROAD PACKAGE

sub48131-2B680

main48131-2B690iST150..3FC..TH198508-198510

sub48131-2B680

main48131-2B760iCT150..GEN198403-198711

HARSH ROAD PACKAGE

main48131-2B780iCT150..EUG198310-198711

main48131-2B810iST150..5F..SAA198403-198711

HARSH ROAD PACKAGE

main48131-2B810iST150..5F..TH198310-198711

main48131-2D131iST151..5F198508-198711

HARSH ROAD PACKAGE

main48131-2D600iST151..4FC198508-198711

HARSH ROAD RACKAGE

48132SPRING, FRONT COIL, LH

main48131-1A660iAT151..RHD..MTM..GEN198310-198711

main48131-1A680iAT151..RHD..3FC198310-198711

main48131-1A700iAT151..RHD..MTM..GEN198403-198711

HARSH ROAD PACKAGE

sub48131-1E350

main48131-1A700iAT151..TH198508-198608

sub48131-1E350

main48131-2B080iCT150..RHD..EUG198310-198711

main48131-2B161iAT151..LHD..MTM..EUR198310-198711

main48131-2B181iAT151..RHD..4FC198505-198711

main48131-2B210iAT151..LHD..MTM..(GEN,SAA)198403-198711

HARSH ROAD PACKAGE

main48131-2B210iAT151..LHD..3FC..GEN198310-198711

main48131-2B251iAT151..SED..LHD..5F..EUG198403-198711

HARSH ROAD PACKAGE

main48131-2B251iAT151..LHD..ATM..EUR198310-198711

main48131-2B380iST150..RHD..MTM198310-198501

main48131-2B400iST150..LHD..MTM..GEN198310-198501

sub48131-2B401

main48131-2B401iST150..RHD..MTM..GEN198501-198711

main48131-2B420iST150..RHD..MTM198403-198501

HARSH ROAD PACKAGE

sub48131-2B421

main48131-2B420iST150..RHD..3FC198310-198711

sub48131-2B421

main48131-2B421iST150..RHD..3FC..GEN198501-198711

sub48131-1A640

main48131-2B440iST150..MTM..GEN198403-198711

HARSH ROAD PACKAGE

main48131-2B440iST150..LHD..3FC198310-198711

main48131-2B461iST150..5F..EUG198511-198711

main48131-2B491iST150..4FC198508-198711

main48131-2B512iST151..LB..5F198508-198711

main48131-2B522iST151..LB..4FC198508-198711

main48131-2B621iAT151..RHD..5F..EUG198310-198711

main48131-2B651iST150..4FC198508-198511

main48131-2B662iST151..LB..5F198508-198711

HARSH ROAD PACKAGE

main48131-2B680iST150..3FC..SAA198510-198711

HARSH ROAD PACKAGE

main48131-2B690iST150..3FC..SAA198403-198510

HARSH ROAD PACKAGE

sub48131-2B680

main48131-2B760iCT150..LHD..GEN198403-198711

HARSH ROAD PACKAGE

main48131-2B780iCT150..LHD..EUG198310-198711

main48131-2B810iST150..3FC..GEN198403-198711

HARSH ROAD PACKAGE

main48131-2B810iST150..3FC..TH198310-198711

main48131-2D060iAT151..LHD..3FC..GEN198403-198711

HARSH ROAD PACKAGE

main48131-2D131iST151..LB..4FC198508-198711

HARSH ROAD PACKAGE

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-12050iAT151..TH198310-198608

main48157-20030iST150..TH198310-198608

main48157-20040iCT150,ST15#..EUR,GEN,SAA198508-198711

main48157-20050iAT151..EUR,GEN,SAA198508-198711

48157AINSULATOR, FRONT COIL SPRING, LOWER

main48158-12010iAT151198310-198711

main48158-12020iCT150,ST15#198310-198711

48331BUMPER, FRONT SPRING, NO.1

main48331-12100iAT151198310-198711

sub48331-12120

main48331-20040iCT150,ST15#198310-198711

sub48331-12130

48471SEAT, FRONT SPRING, UPPER

main48044-12080iAT151198310-198711

main48044-32010iCT150,ST15#198310-198711

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-12330iAT151..GEN198310-198505

sub48510-12420

main48510-12420iAT151..GEN,SAA198505-198711

sub48510-12410

main48510-12430iAT151..GEN,SAA;AT151..SED..LHD..5F..EUG198505-198711

HARSH ROAD PACKAGE

sub48510-1A250

main48510-12430iAT151..TH198508-198608

sub48510-1A250

main48510-12450iCT150,ST15#..GEN,SAA198505-198711

HARSH ROAD PACKAGE

sub48510-12451

main48510-12450iST150..TH198508-198608

sub48510-12451

main48510-12470iCT150,ST150..GEN,SAA198505-198711

sub48510-12471

main48510-20162iCT150,ST150..GEN,SAA198310-198505

sub48510-12470

main48510-20171iCT150..EUG198310-198505

sub48510-20300

main48510-20190iAT151..EUR198310-198505

sub48510-20340

main48510-20240iCT150,ST150..GEN,SAA198403-198505

HARSH ROAD PACKAGE

sub48510-12450

main48510-20250iAT151..GEN;AT151..SED..LHD..5F..EUG198403-198505

HARSH ROAD PACKAGE

sub48510-12430

main48510-20290iST150..RHD..XL..GEN198508-198711

NEW ZEALAND SPEC

sub48510-20291

main48510-20300iCT150,ST150..EUG198505-198711

sub48510-20290

main48510-20340iAT151..EUR198505-198711

sub48510-2B260

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-12290iAT151..GEN,SAA198310-198711

main48511-12300iAT151..GEN,SAA;AT151..SED..LHD..5F..EUG198403-198711

HARSH ROAD PACKAGE

main48511-20140iCT150,ST150..GEN,SAA198310-198711

sub48511-20150

main48511-20150iCT150,ST150..EUG198310-198711

main48511-20160iCT150,ST15#..GEN,SAA198403-198711

HARSH ROAD PACKAGE

sub48511-20170

main48511-20160iST150..TH198508-198608

sub48511-20170

main48511-20170iST150..RHD..XL..GEN198508-198711

NEW ZEALAND SPEC

sub48511-20150

main48511-20180iAT151..EUR198310-198711

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-12290iAT151..GEN,SAA198310-198711

main48511-12300iAT151..GEN,SAA;AT151..SED..LHD..5F..EUG198403-198711

main48511-20140iCT150,ST150..GEN,SAA198310-198711

sub48511-20150

main48511-20150iCT150,ST150..EUG198310-198711

main48511-20160iCT150,ST15#..GEN,SAA198403-198711

HARSH ROAD PACKAGE

sub48511-20170

main48511-20160iST150..TH198508-198608

sub48511-20170

main48511-20170iST150..RHD..XL..GEN198508-198711

NEW ZEALAND SPEC

sub48511-20150

main48511-20180iAT151..EUR198310-198711

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-12200iAT151..GEN198310-198505

sub48520-12290

main48520-12290iAT151..GEN,SAA198505-198711

sub48520-12280

main48520-12300iAT151..TH198508-198608

sub48520-1A120

main48520-12300iAT151..GEN,SAA;AT151..SED..LHD..5F..EUG198505-198711

HARSH ROAD PACKAGE

sub48520-1A120

main48520-12320iCT150,ST15#..GEN,SAA198505-198711

HARSH ROAD PACKAGE

sub48520-12321

main48520-12320iST150..TH198508-198608

sub48520-12321

main48520-12340iCT150,ST150..GEN,SAA198505-198711

sub48520-12341

main48520-20162iCT150,ST150..GEN,SAA198310-198505

sub48520-12340

main48520-20171iCT150..EUG198310-198508

sub48520-20290

main48520-20190iAT151..EUR198310-198505

sub48520-20330

main48520-20230iCT150,ST150..GEN,SAA198403-198505

HARSH ROAD PACKAGE

sub48520-12320

main48520-20240iAT151..GEN;AT151..SED..LHD..5F..EUG198403-198505

HARSH ROAD PACKAGE

sub48520-12300

main48520-20280iST151198508-198711

NEW ZEALAND SPEC

sub48520-20281

main48520-20290iCT150,ST150..EUG198508-198711

sub48520-20280

main48520-20330iAT151..EUR198505-198711

sub48520-2B260

48550VALVE ASSY, SHOCK ABSORBER BASE

main48550-10080iAT151..GEN198310-198505

main48550-12230iCT150,ST150..GEN,SAA198310-198505

main48550-20050iCT150,ST150..GEN,SAA198403-198505

HARSH ROAD PACKAGE

main48550-20060iAT151..EUR198310-198505

main48550-20070iAT151..GEN;AT151..SED..LHD..5F..EUG198403-198505

HARSH ROAD PACKAGE

48552CYLINDER, SHOCK ABSORBER(FOR FRONT)

main48552-12050iAT151198310-198505

main48552-20050iCT150,ST150..GEN,SAA198310-198505

48568RING, SHOCK ABSORBER PISTON

main48568-12021iAT151198310-198505

main48568-22021iCT150,ST150..GEN,SAA198310-198505

48570GUIDE ASSY, SHOCK ABSORBER ROD

main48022-10020iAT151198310-198505

main48022-14010iCT150,ST150..GEN,SAA198310-198505

sub48022-22040

sub90430-42001

48577STOPPER, SHOCK ABSORBER REBOUND

main48577-16010iAT151198310-198505

main48579-14011iCT150,ST150..GEN,SAA198310-198505

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-08056iAT151,CT150,ST15#198508-198511

main90179-08090iAT151,CT150,ST15#198511-198711

48680SUPPORT ASSY, FRONT SUSPENSION

main48609-12151iAT151..SED..LHD..5F..EUG;AT151,CT150,ST15#..GEN,SAA198603-198711

HARSH ROAD PACKAGE

main48609-20050iAT151,CT150,ST150198310-198501

sub48609-20060

main48609-20060iAT151,CT150,ST150198501-198711

main48609-20060iAT151..SED..LHD..5F..EUG;AT151,CT150,ST150..GEN,SAA198403-198501

HARSH ROAD PACKAGE

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94182-11400iAT151,CT150,ST15#198310-198711

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iAT151,CT150,ST15#198310-198711

48684COVER, BEARING DUST

main48684-32010iAT151,CT150,ST15#198310-198711

48811BAR, STABILIZER, FRONT

main48811-20170iAT151..EUR;CT150,ST150198310-198508

main48811-20170iST150..GEN,SAA,TH198508-198711

INDONESIA SPEC

main48811-20170iAT151..RHD..XL198608-198711

THAILAND SPEC

main48811-20340iST150..EUG;CT150,ST151198508-198711

NEW ZEALAND SPEC

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-14160iST150..RHD..XL..GEN198508-198711

NEW ZEALAND SPEC

main48815-24020iAT151..SED..RHD..GL..GEN198508-198711

INDONESIA SPEC

main48815-24020iAT151..RHD..XL198608-198711

THAILAND SPEC

main48815-24020iAT151..EUR;CT150,ST150198310-198508

48817CUSHION, FRONT STABILIZER

main48817-30020iAT151..EUR,SAA198310-198711

main48817-30020iAT151..SED..RHD..GL..GEN198508-198711

INDONESIA SPEC

main48817-30020iAT151..RHD..XL198608-198711

THAILAND SPEC

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iCT150,ST15#198310-198711

main90948-02032iAT151..SED..RHD..GL..GEN198508-198711

INDONESIA SPEC

main90948-02032iAT151..RHD..XL198608-198711

THAILAND SPEC

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iAT151..EUR,SAA198310-198711

main90948-02015iAT151..SED..RHD..GL..GEN198508-198711

INDONESIA SPEC

main90948-02015iAT151..RHD..XL198608-198711

THAILAND SPEC

48817DBOLT(FOR FRONT STABILIZER)

main48819-20030iAT151..EUR,SAA198310-198711

main48819-20030iAT151..SED..RHD..GL..GEN198508-198711

INDONESIA SPEC

main48819-20030iAT151..RHD..XL198608-198711

THAILAND SPEC

48824BRACKET, STABILIZER, FRONT

main48824-20040iAT151..EUR,SAA198310-198711

main48824-20040iAT151..SED..RHD..GL..GEN198508-198711

INDONESIA SPEC

main48824-20040iAT151..RHD..XL198608-198711

THAILAND SPEC

9095001453

main90950-01453

9161160822

main91611-60822

9418210800

main94182-10800

36 parts on this diagram · 1 diagram in section
