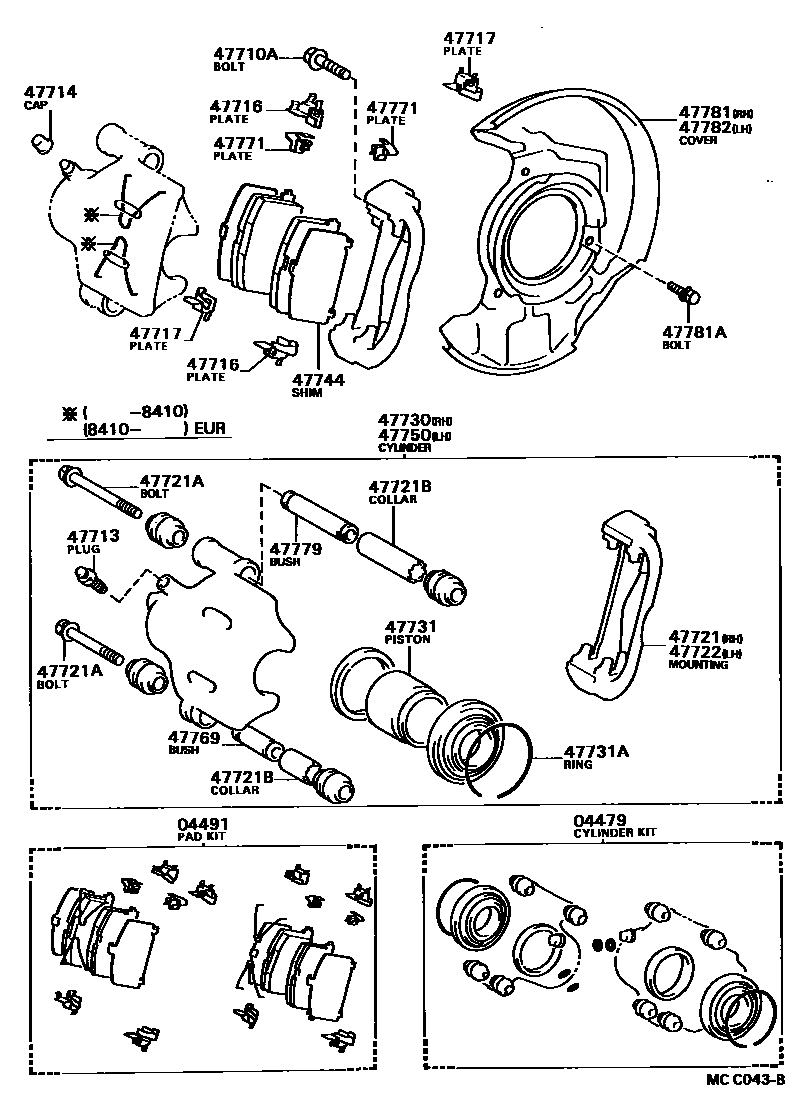

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-32010iAT151,CT150,ST150198310-198501

sub04479-32011

main04479-32011iAT151,CT150,ST15#198501-198711

04491PAD KIT, DISC BRAKE, FRONT

main04491-20170iAT151,CT150,ST150..EUR198310-198711

sub04491-20171

main04491-20250iAT151,CT150,ST15#..GEN,SAA,TH198601-198711

sub04491-20251

main04491-32010iAT151,CT150,ST150..GEN,SAA198310-198410

sub04491-32012

main04491-32011iAT151,CT150,ST15#..GEN,SAA,TH198410-198601

sub04491-16052

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040iAT151,CT150,ST15#198310-198711

*12-1.25PX25.8-19.5

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12040iAT151,CT150,ST150..EUR198310-198711

main47547-20010iAT151,CT150,ST15#..GEN,SAA,TH198310-198711

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAT151,CT150,ST15#198310-198711

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-32010iAT151,CT150,ST15#198310-198711

sub47716-32031

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-32010iAT151,CT150,ST15#198310-198711

sub47717-32031

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20070iAT151,CT150,ST150..EUR198310-198711

main47721-32010iAT151,CT150,ST15#..GEN,SAA,TH198310-198711

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003iAT151,CT150,ST15#198310-198711

*9-1.25PX71-25,*9-1.25PX73-25

main90119-09004iAT151,CT150,ST15#198310-198711

*9-1.25PX91-25,*9-1.25PX93-25

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-15004iAT151,CT150,ST15#198310-198711

L=12

main90387-15005iAT151,CT150,ST15#198310-198711

L=32

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-20070iAT151,CT150,ST150..EUR198310-198711

main47721-32010iAT151,CT150,ST15#..GEN,SAA,TH198310-198711

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12170iAT151,CT150,ST15#..GEN,SAA,TH198410-198608

sub47730-12171

main47730-12171iAT151,CT150,ST15#..GEN,SAA198608-198711

main47730-20160iAT151,CT150,ST150..EUR198310-198711

main47730-20170iAT151,CT150,ST150..GEN,SAA198310-198410

sub47730-12170

47731PISTON, FRONT DISC BRAKE

main47731-20060iAT151,CT150,ST150..EUR198310-198711

main47731-20070iAT151,CT150,ST15#..GEN,SAA,TH198310-198711

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001iAT151,CT150,ST15#198310-198711

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-20040iAT151,CT150,ST150..EUR198310-198711

main47744-32010iAT151,CT150,ST15#..GEN,SAA,TH198310-198711

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12170iAT151,CT150,ST15#..GEN,SAA,TH198410-198608

sub47750-12171

main47750-12171iAT151,CT150,ST15#..GEN,SAA198608-198711

main47750-20150iAT151,CT150,ST150..EUR198310-198711

main47750-20160iAT151,CT150,ST150..GEN,SAA198310-198410

sub47750-12170

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-32010iAT151,CT150,ST15#198310-198711

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-32010iAT151,CT150,ST150198310-198711

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-32010iAT151,CT150,ST150198310-198711

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-20140iAT151,CT150,ST150198310-198711

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iAT151,CT150,ST150198310-198711

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-20140iAT151,CT150,ST150198310-198711

22 parts on this diagram · 2 diagrams in section
