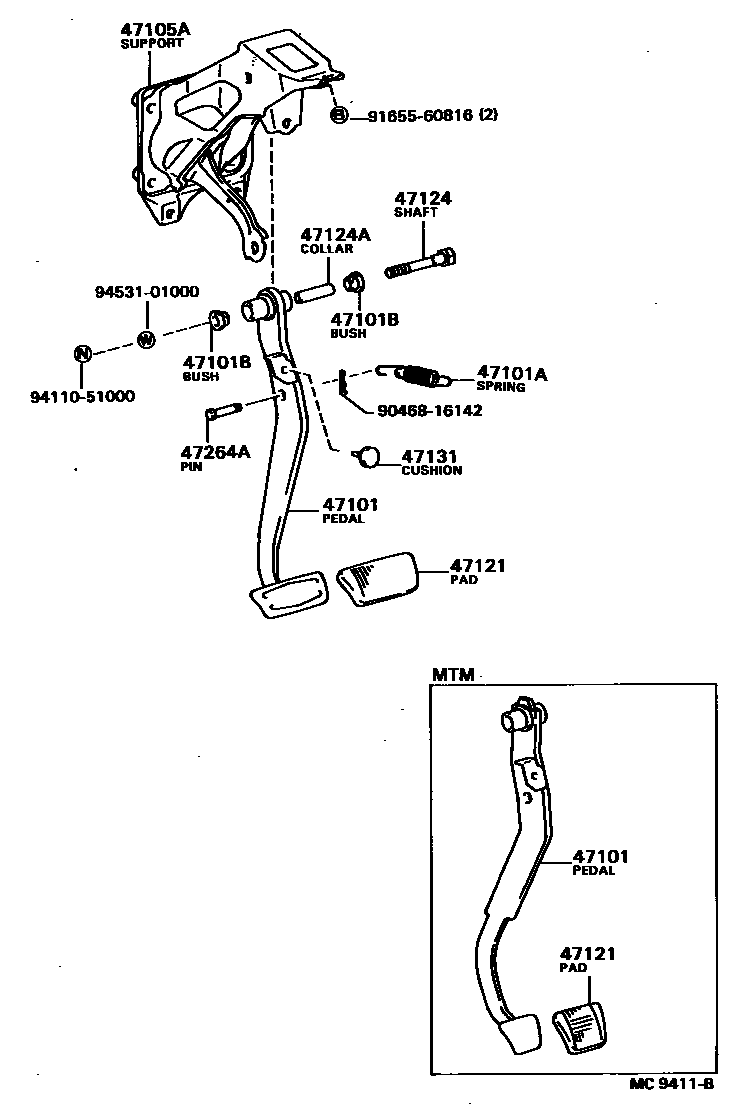

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-20260iAT151,ST15#..RHD..ATM198310-198711

main47101-20270iAT151,CT150,ST15#..RHD..MTM198310-198711

main47101-20280iAT151,CT150,ST150..LHD..MTM198310-198711

main47101-20290iAT151,ST150..LHD..ATM198310-198711

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12011iAT151,CT150,ST15#198310-198711

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iAT151,CT150,ST15#198603-198711

main90386-13192iAT151,CT150,ST15#198310-198603

47105ASUPPORT SUB-ASSY, BRAKE PEDAL

main55106-20190iAT151,CT150,ST150..RHD..MTM198310-198507

main55106-20191iAT151,CT150,ST15#..RHD..MTM198507-198711

main55106-20200iAT151,ST150..RHD..ATM198310-198507

main55106-20201iAT151,ST15#..RHD..ATM198507-198711

main55106-20210iAT151,CT150,ST150..LHD198310-198507

main55106-20211iAT151,CT150,ST150..LHD198507-198711

47121PAD, BRAKE PEDAL

main31321-14020iAT151,CT150,ST15#..MTM198310-198711

main47121-30050iAT151,ST15#..ATM198310-198711

47124SHAFT, BRAKE PEDAL

main90101-10015iAT151,CT150,ST15#198310-198711

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iAT151,CT150,ST15#198310-198711

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iAT151,CT150,ST15#198310-198602

main90541-06032iAT151,CT150,ST15#198602-198711

sub90541-06036

47264APIN(FOR PUSH ROD)

main90249-08051iAT151,CT150,ST15#198310-198711

9046816142

main90468-16142

9165560816

main91655-60816

9411051000

main94110-51000

9453101000

main94531-01000

13 parts on this diagram · 1 diagram in section
