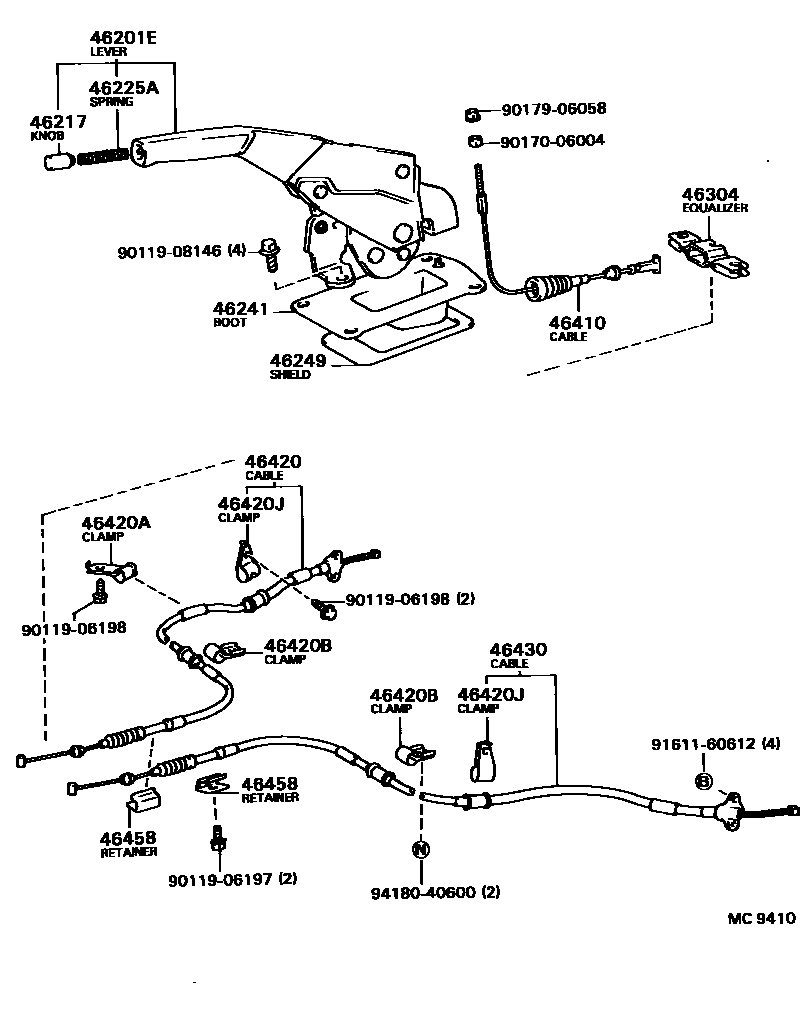

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-20120-02iCT150;AT151..EUR;AT151,ST150..STD,XL198310-198711

MAROON,RED/MAROON,TRIM3#

sub46201-20121

sub46201-20120

main46201-20120-03iAT151,CT150,ST150..DX,XL198310-198711

GRAY,GRAY,TRIM1#

sub46201-20121

sub46201-20120

main46201-20120-04iCT150;AT151..EUR;AT151,ST150..STD,XL198310-198508

BLUE,BLUE,TRIM8#

sub46201-20121

sub46201-20120

main46201-20120-14iAT151,CT150,ST150..DX,XL198508-198711

BLUE,BLUE,TRIM8#

sub46201-20121

sub46201-20120

main46201-20130-02iAT151,CT150,ST15#..GL198310-198711

MAROON,RED/MAROON,TRIM3#

sub46201-20131

sub46201-20130

main46201-20130-03iAT151,ST150..GL..(GEN,SAA)198310-198711

GRAY,GRAY,TRIM1#

sub46201-20131

sub46201-20130

main46201-20130-04iAT151,ST150..GL..(GEN,SAA)198310-198508

BLUE,BLUE,TRIM8#

sub46201-20131

sub46201-20130

main46201-20130-24iAT151,CT150,ST15#..GL198508-198711

BLUE,BLUE,TRIM8#

sub46201-20131

sub46201-20130

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-14iAT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..3FC,4F,5F198310-198405

BLUE,BLUE,TRIM8#

sub46217-10020

sub46217-20020

main46217-10020-22iAT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..3FC,4F,5F198310-198405

DEEP MAROON,RED/MAROON,TRIM3#

sub46217-10020

sub46217-20020

main46217-10020-33iAT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..3FC,4F,5F198310-198405

SHADOW GRAY,GRAY,TRIM1#

sub46217-10020

sub46217-20020

main46217-20020-02iAT151,CT150,ST15#198405-198711

MAROON,DEEP MAROON,TRIM3#

sub46217-20020

main46217-20020-03iAT151,CT150,ST15#198405-198711

GRAY,SHADOW GRAY,TRIM1#

sub46217-20020

main46217-20020-04iAT151,CT150,ST150198405-198508

BLUE,BLUE,TRIM8#

sub46217-20020

main46217-20020-24iAT151,CT150,ST15#198508-198711

BLUE,BLUE,TRIM8#

sub46217-20020

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iAT151,CT150,ST15#198310-198711

46241BOOT, PARKING BRAKE LEVER

main46241-20050iAT151,CT150,ST15#198310-198711

46249SHIELD, PARKING BRAKE HOLE

main46249-20020iAT151,CT150,ST15#198310-198711

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-20040iAT151,CT150,ST15#198310-198711

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-20230iAT151,CT150,ST15#198310-198711

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-39015iAT151,CT150,ST150198310-198507

main46420-39016iAT151,CT150,ST15#198507-198711

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01017iAT151,CT150,ST15#198310-198711

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01016iAT151,CT150,ST15#198310-198711

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01015iAT151,CT150,ST15#198310-198711

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-29015iAT151,CT150,ST150198310-198507

main46430-29016iAT151,CT150,ST15#198507-198711

46458RETAINER, CABLE

main46458-20020iAT151,CT150,ST15#198310-198711

sub46458-50010

9011906197

main90119-06197

9011906198

main90119-06198

9011908146

main90119-08146

9017006004

main90170-06004

9017906058

main90179-06058

9161160612

main91611-60612

9418040600

main94180-40600

20 parts on this diagram · 1 diagram in section
