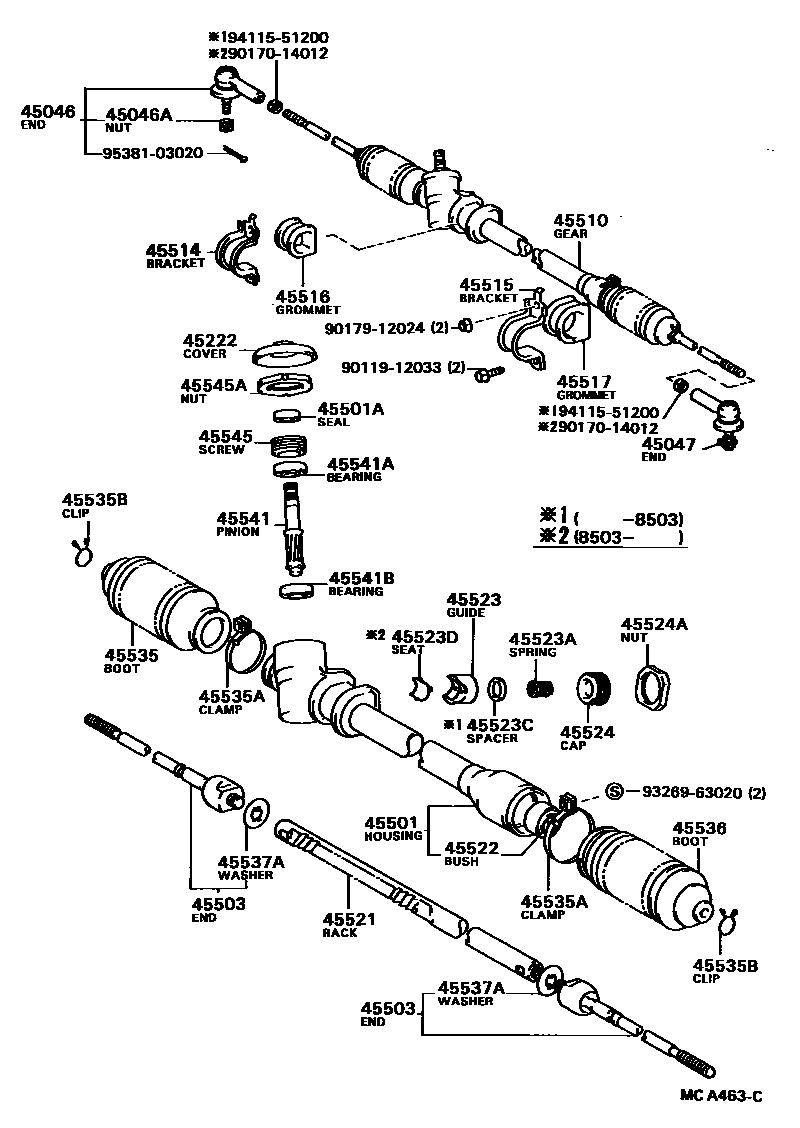

FRONT STEERING GEAR & LINK

0001 1 0003 1 0004 1 0006 1 0008 1 0009 1

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iAT151,CT150,ST15#198409-198711

main45046-29135iAT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..3FC,4F,5F198310-198409

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAT151,CT150,ST15#198310-198711

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iAT151,CT150,ST15#198409-198711

main45046-29135iAT151..LB..4FC;AT151..SED..LHD..4FC;AT151,CT150,ST150..3FC,4F,5F198310-198409

45222COVER, STEERING GEAR DUST

main45222-10030iAT151;ST150..LB..XL;ST150..SED..RHD..GEN;ST150..SED..XL..(SAA,TH);ST150..SED..LHD..XL..GEN198310-198711

45501HOUSING SUB-ASSY, STEERING RACK

main45501-12090iST150..SED..RHD;ST150..LB..RHD..XL198310-198711

sub45501-12110

main45501-12100iAT151..LHD198310-198711

sub45501-12120

45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)

main90311-15001iAT151;ST150..LB..XL;ST150..SED..RHD..GEN;ST150..SED..XL..(SAA,TH);ST150..SED..LHD..XL..GEN198310-198711

sub90311-15002

45503END SUB-ASSY, STEERING RACK

main45503-19035iST150..LB..XL;AT151..LB..4FC;ST150..SED..RHD;AT151..3FC,4F,5F;ST150..SED..LHD..XL;AT151..SED..LHD..4FC198310-198409

main45503-19036iAT151;ST150..LB..XL;ST150..SED..RHD..GEN;ST150..SED..XL..(SAA,TH);ST150..SED..LHD..XL..GEN198409-198711

45510GEAR ASSY, STEERING

main45510-12040iAT151..RHD..5F..EUG;AT151..LB..RHD..4FC198310-198409

sub45510-12041

sub45046-19175

sub90170-14012

main45510-12041iAT151..RHD..EUG198409-198711

sub45510-12042

main45510-12050iAT151..LHD..EUR198310-198409

sub45510-12051

sub45046-19175

sub90170-14012

main45510-12051iAT151..LHD..EUR198409-198711

sub45510-12091

main45510-12060iST150..RHD..XL198310-198409

sub45510-12061

sub45046-19175

sub90170-14012

main45510-12061iST150..SED..RHD..GL..GEN198409-198711

sub45510-12062

main45510-12070iST150..LHD..XL198310-198409

sub45510-12071

sub45046-19175

sub90170-14012

main45510-12071iST150..LHD..XL198409-198711

sub45510-12250

main45510-12080iST150..SED..RHD..GL198310-198409

sub45510-12081

sub45046-19175

sub90170-14012

main45510-12081iAT151..RHD..(GEN,TH)198409-198711

sub45510-12230

sub45222-10030

main45510-12081iST150..RHD..XL..GEN198508-198711

NEW ZEALAND SPEC

sub45510-12230

sub45222-10030

main45510-12090iAT151..LHD..GEN198310-198409

sub45510-12091

sub45046-19175

sub90170-14012

main45510-12091iAT151..LHD..(GEN,SAA)198409-198711

sub45510-12240

sub45222-10030

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-12040iAT151;ST150..LB..XL;ST150..SED..RHD..GEN;ST150..SED..XL..(SAA,TH);ST150..SED..LHD..XL..GEN198310-198711

main45514-20010iST150..GL..TH198508-198608

main45514-20010iAT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)198310-198711

W/POWER STEERING

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-12060iAT151;ST150..LB..XL;ST150..SED..RHD..GEN;ST150..SED..XL..(SAA,TH);ST150..SED..LHD..XL..GEN198310-198711

sub45515-12070

main45515-12070iAT151,CT150,ST150..DX,GL,XL198310-198711

W/POWER STEERING

main45515-12070iST150..GL..TH198508-198608

main45515-20030iAT151..LHD198508-198711

W/POWER STEERING

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-20010iAT151,CT150,ST15#198310-198711

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-12050iAT151;ST150..LB..XL;ST150..SED..RHD..GEN;ST150..SED..XL..(SAA,TH);ST150..SED..LHD..XL..GEN198310-198711

main45517-20020iAT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)198310-198711

W/POWER STEERING

main45517-20020iST150..GL..TH198508-198608

45521RACK, STEERING

main45521-12070iAT151..RHD..EUG198310-198711

sub45521-12071

main45521-12080iAT151..LHD..EUR198310-198711

sub45521-12120

sub45541-12060

sub90501-23007

main45521-12090iST150..SED..RHD..GL..GEN198310-198711

sub45521-12091

main45521-12100iST150..LHD..XL198310-198711

sub45521-20030

sub45541-12060

sub90501-23007

sub90501-26038

main45521-12110iAT151..RHD..(GEN,TH)198310-198711

main45521-12110iST150..RHD..XL..GEN198508-198711

NEW ZEALAND SPEC

main45521-12120iAT151..LHD..(GEN,SAA)198310-198711

45522BUSH, STEERING RACK

main45522-10021iAT151;ST150..LB..XL;ST150..SED..RHD..GEN;ST150..SED..XL..(SAA,TH);ST150..SED..LHD..XL..GEN198311-198711

main45522-10030iAT151;ST150..LB..XL;ST150..SED..RHD;ST150..SED..LHD..XL198310-198311

sub45522-10031

45523GUIDE, RACK(FOR STEERING GEAR)

main45523-16011iAT151;ST150..LB..XL;ST150..SED..RHD;ST150..SED..LHD..XL198310-198503

main45523-17012iAT151;ST150..LB..XL;ST150..SED..RHD..GEN;ST150..SED..XL..(SAA,TH);ST150..SED..LHD..XL..GEN198503-198711

sub45523-12040

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90501-23007iAT151;ST150..LB..XL;ST150..SED..RHD;ST150..SED..LHD..XL198310-198503

main90501-28007iAT151..GEN,SAA,TH198503-198711

main90501-30007iAT151..EUR198503-198711

45523CSPACER(FOR RACK GUIDE)

main90560-23003iAT151;ST150..LB..XL;ST150..SED..RHD;ST150..SED..LHD..XL198310-198503

45523DSEAT, RACK GUIDE

main44277-17010iAT151;ST150..LB..XL;ST150..SED..RHD..GEN;ST150..SED..XL..(SAA,TH);ST150..SED..LHD..XL..GEN198503-198711

45524CAP, STEERING RACK GUIDE SPRING

main45524-12020iAT151;ST150..LB..XL;ST150..SED..RHD..GEN;ST150..SED..XL..(SAA,TH);ST150..SED..LHD..XL..GEN198503-198711

main45524-16010iAT151;ST150..LB..XL;ST150..SED..RHD;ST150..SED..LHD..XL198310-198503

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main90179-36002iAT151;ST150..LB..XL;ST150..SED..RHD..GEN;ST150..SED..XL..(SAA,TH);ST150..SED..LHD..XL..GEN198310-198711

45535BOOT, STEERING RACK, NO.1

main45535-12011iAT151;ST150..LB..XL;ST150..SED..RHD..GEN;ST150..SED..XL..(SAA,TH);ST150..SED..LHD..XL..GEN198310-198711

45535ACLAMP(FOR STEERING RACK BOOT)

main90461-10273iAT151;ST150..LB..XL;ST150..SED..RHD..GEN;ST150..SED..XL..(SAA,TH);ST150..SED..LHD..XL..GEN198310-198711

NO.1

main90949-01082iAT151;ST150..LB..XL;ST150..SED..RHD..GEN;ST150..SED..XL..(SAA,TH);ST150..SED..LHD..XL..GEN198310-198711

NO.2

45535BCLIP(FOR STEERING RACK BOOT)

main90467-18003iAT151;ST150..LB..XL;ST150..SED..RHD..GEN;ST150..SED..XL..(SAA,TH);ST150..SED..LHD..XL..GEN198310-198711

45536BOOT, STEERING RACK, NO.2

main45536-12030iAT151;ST150..LB..XL;ST150..SED..RHD..GEN;ST150..SED..XL..(SAA,TH);ST150..SED..LHD..XL..GEN198310-198711

45537AWASHER, CLAW(FOR STEERING RACK END LOCK)

main90214-14002iAT151;ST150..LB..XL;ST150..SED..RHD..GEN;ST150..SED..XL..(SAA,TH);ST150..SED..LHD..XL..GEN198310-198711

45541PINION, STEERING

main45541-12030iAT151..RHD..EUG198310-198711

sub45541-12031

main45541-12040iAT151..LHD..EUR198310-198711

sub45521-12120

sub45521-20030

sub45541-12060

sub90501-23007

sub90501-26038

main45541-12050iST150..SED..RHD..GL198310-198711

main45541-12050iST150..RHD..XL..GEN198508-198711

NEW ZEALAND SPEC

main45541-12060iAT151..LHD..(GEN,SAA)198310-198711

45541ABEARING, RADIAL BALL(FOR STEERING PINION UPPER)

main90363-15003iAT151;ST150..LB..XL;ST150..SED..RHD..GEN;ST150..SED..XL..(SAA,TH);ST150..SED..LHD..XL..GEN198310-198711

45541BBEARING, RADIAL BALL(FOR STEERING PINION LOWER)

main90363-13001iAT151;ST150..LB..XL;ST150..SED..RHD..GEN;ST150..SED..XL..(SAA,TH);ST150..SED..LHD..XL..GEN198310-198711

45545SCREW, PINION BEARING ADJUSTING

main45545-10010iAT151;ST150..LB..XL;ST150..SED..RHD..GEN;ST150..SED..XL..(SAA,TH);ST150..SED..LHD..XL..GEN198310-198711

45545ANUT(FOR PINION BEARING ADJUSTING SCREW)

main90179-38001iAT151;ST150..LB..XL;ST150..SED..RHD..GEN;ST150..SED..XL..(SAA,TH);ST150..SED..LHD..XL..GEN198310-198711

9011912033

main90119-12033

9017014012

main90170-14012

9017912024

main90179-12024

9326963020

main93269-63020

9411551200

main94115-51200

9538103020

main95381-03020

36 parts on this diagram · 6 diagrams in section
