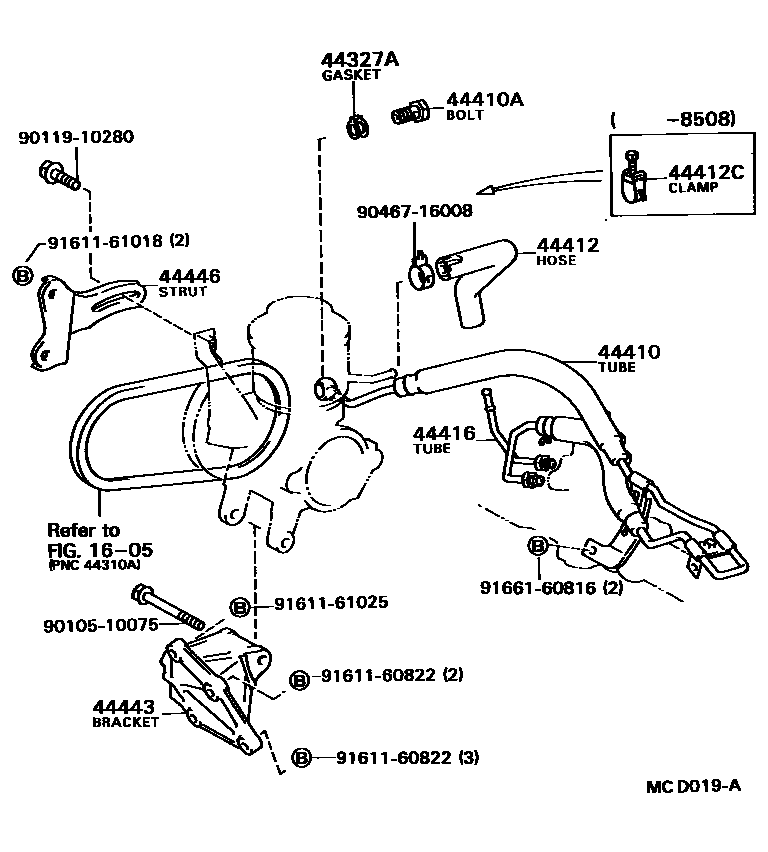

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iST150..GL..TH¥260198310-198711

44410TUBE ASSY, PRESSURE FEED

main44410-20061iST151;ST150..LB..RHD..5F;ST150..RHD..(3FC,4F);ST150..SED..5F..GL..TH;ST150..SED..RHD..5F..GEN¥16,300198310-198711

main44410-20110iAT151..LHD..(DX,GL,XL)¥32,100198310-198711

sub44410-20111¥27,300

main44410-20160iCT150..RHD¥32,500198310-198711

main44410-20180iAT151..LB..RHD..4FC;AT151..RHD..(3FC,4F,5F)..(GL,XL)¥35,400198310-198404

sub44410-20181¥30,000

main44410-20201iAT151..RHD..(GL,XL)..(EUR,GEN)¥35,600198404-198711

sub44410-20202¥30,100

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iAT151,CT150..(DX,GL,XL)..(EUR,GEN,SAA)¥610198310-198711

44412HOSE, RETURN

main44412-12120iAT151..RHD..(GL,XL)..(EUR,GEN)¥3,830198310-198711

44412CCLAMP(FOR RETURN HOSE)

main90460-01001iAT151..RHD..(GL,XL)¥580198310-198508

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-12140iAT151..RHD..(GL,XL)..(EUR,GEN)¥1,350198310-198711

main44416-20100iST150..RHD¥710198310-198508

sub44416-20200

main44416-20110iST151;ST150..RHD..3FC;ST150..LB..RHD..5F;ST150..SED..5F..GL..TH;ST150..SED..RHD..5F..GEN¥710198508-198711

sub44416-44010¥870

44443BRACKET, PUMP

main44443-12050iAT151..(DX,GL,XL)..(EUR,GEN,SAA)¥8,500198310-198711

main44443-20060iST150..GL..TH;ST15#..EUR,GEN,SAA¥5,300198508-198711

sub44443-20050¥5,300

main44443-32010iST150¥4,890198310-198508

44446STRUT, ADJUSTING

main44446-12030iAT151..(DX,GL,XL)..(EUR,GEN,SAA)¥1,630198310-198711

9010510075

main90105-10075¥180

9011910280

main90119-10280¥360

9046716008

main90467-16008¥240

9161160822

main91611-60822¥170

9161161018

main91611-61018¥130

9161161025

main91611-61025¥240

9166160816

main91661-60816¥130

16 parts on this diagram · 6 diagrams in section
