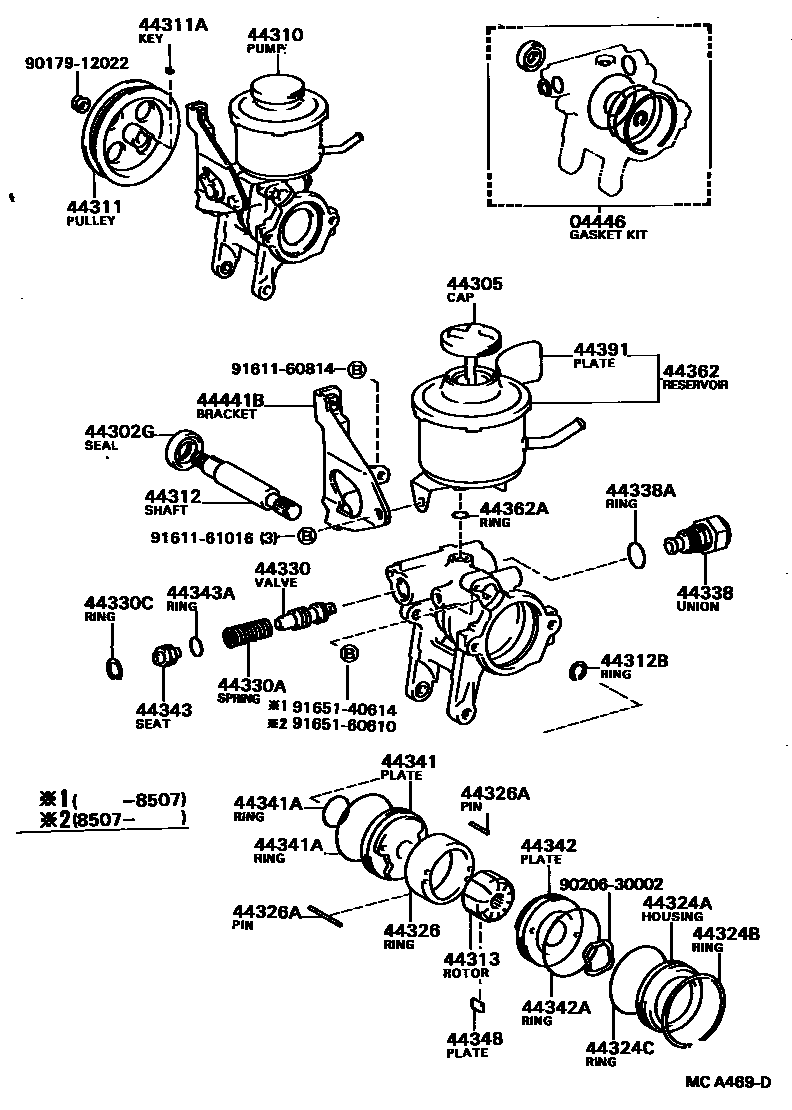

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1

04446GASKET KIT, POWER STEERING PUMP

main04446-12020iAT151,CT150..DX,GL,XL¥2,360198310-198508

sub04446-27010¥2,370

main04446-16010iST150¥5,700198310-198402

sub04446-16011¥5,100

main04446-16011iST150¥5,100198402-198508

main04446-20030iST150..GL..TH¥3,070198508-198711

sub04446-20031¥3,090

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-18007iAT151,CT150..DX,GL,XL¥240198310-198711

main90311-18008iST150¥540198310-198508

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-30020iAT151..(DX,GL,XL)..(EUR,GEN,SAA)¥1,950198310-198711

sub44305-22040¥1,940

main44305-32010iST150..GL..TH;CT150,ST15#..EUR,GEN,SAA¥1,560198310-198711

44310PUMP ASSY, VANE

main44320-12050iCT150¥82,200198310-198507

sub44320-12051¥81,700

main44320-12051iCT150¥81,700198507-198711

sub44320-12052¥81,300

main44320-12060iAT151..LHD..(DX,GL,XL)¥90,100198310-198507

sub44320-12061¥93,500

main44320-12061iAT151..LHD..(DX,GL,XL)¥93,500198507-198711

sub44320-12062¥93,500

main44320-12110iAT151..RHD..(GL,XL)¥90,100198310-198507

sub44320-12111¥93,500

main44320-12111iAT151..RHD..(GL,XL)..(EUR,GEN)¥93,500198507-198711

sub44320-12112¥93,200

main44320-20040iST150..EUG¥81,700198508-198711

sub44320-20041¥81,300

main44320-20080iST150¥82,100198310-198508

main44320-20100iST150..GL..TH;ST150..GEN,SAA¥82,400198508-198711

44311PULLEY, VANE PUMP

main44311-12030iCT150¥7,400198310-198711

main44311-12040iAT151..(DX,GL,XL)..(EUR,GEN,SAA)¥7,400198310-198711

main44311-20060iST150..GL..TH;ST15#..EUR,GEN,SAA¥7,400198508-198711

main44311-32010iST150¥8,100198310-198508

44311AKEY, VANE PUMP PULLEY

main90280-05008iST150..GL..TH¥220198310-198711

44312SHAFT, VANE PUMP

main44312-12020iST150¥2,940198310-198508

main44312-12030iST150..GL..TH¥2,950198310-198711

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iST150..GL..TH¥140198310-198711

44313ROTOR, VANE PUMP

main44313-12010iST150..GL..TH¥7,900198310-198711

NO MARK,NO MARK

sub44313-22040¥7,700

main44313-12020iAT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)¥7,900198310-198711

MARK 1,MARK 1

sub44313-22050¥7,700

main44313-12030iAT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)¥7,900198310-198711

MARK 2,MARK 2

sub44313-22060¥7,700

main44313-12040iAT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)¥7,900198310-198711

MARK 3,MARK 3

sub44313-22070¥7,700

main44313-12050iST150..GL..TH¥7,900198310-198711

MARK 4,MARK 4

sub44313-22080¥7,700

44324AHOUSING, PUMP, REAR

main44324-12030iAT151,CT150..DX,GL,XL¥13,100198310-198507

main44324-12031iAT151,CT150,ST15#..EUR,GEN,SAA¥6,100198507-198711

main44324-16010iST150¥1,080198409-198508

main44324-22030iST150¥15,500198402-198409

sub44324-22031¥15,300

main44324-32010iST150¥14,600198310-198402

sub44324-22030¥15,500

44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)

main90521-62002iAT151,CT150..DX,GL,XL¥220198310-198711

44324CRING, O(FOR PUMP HOUSING REAR)

main90301-52001iST150..GL..TH¥300198310-198711

44326RING, CAM(FOR VANE PUMP)

main44325-12060iST150¥9,300198310-198508

NO MARK,NO MARK

main44325-12070iST150¥9,300198310-198508

MARK 1,MARK 1

main44325-12080iST150¥9,300198310-198508

MARK 2,MARK 2

main44325-12090iST150¥9,300198310-198508

MARK 3,MARK 3

main44325-12100iST150¥9,300198310-198508

MARK 4,MARK 4

main44325-12110iAT151,CT150..DX,GL,XL¥8,800198310-198711

NO MARK,NO MARK

main44325-12120iAT151,CT150,ST15#..EUR,GEN,SAA¥8,800198310-198711

MARK 1,MARK 1

main44325-12130iAT151,CT150,ST15#..EUR,GEN,SAA¥8,800198310-198711

MARK 2,MARK 2

main44325-12140iAT151,CT150..DX,GL,XL¥8,800198310-198711

MARK 3,MARK 3

main44325-12150iST150..GL..TH¥8,800198310-198711

MARK 4,MARK 4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iST150..GL..TH¥150198310-198711

L=28,OD=4.0,L=28

main90250-04049iAT151,CT150,ST15#..EUR,GEN,SAA¥190198310-198711

L=43,OD=4.0,L=43

main90250-05008iST150¥240198310-198508

L=25,OD=5.0,L=25

main90250-05017iST150¥470198310-198508

L=43.5,OD=5.0,L=43.5

44330VALVE ASSY, FLOW CONTROL

main44330-12070iAT151..RHD..(GL,XL)..(EUR,GEN)¥7,900198310-198711

MARK A,MARK A

sub44330-12071¥8,600

main44330-12080iAT151..RHD..(GL,XL)..(EUR,GEN)¥7,900198310-198711

MARK B,MARK B

sub44330-12081¥8,600

main44330-12090iAT151..RHD..(GL,XL)..(EUR,GEN)¥7,900198310-198711

MARK C,MARK C

sub44330-12091¥8,600

main44330-12100iAT151..RHD..(GL,XL)..(EUR,GEN)¥7,900198310-198711

MARK D,MARK D

sub44330-12101¥8,600

main44330-12110iAT151..RHD..(GL,XL)..(EUR,GEN)¥7,900198310-198711

MARK E,MARK E

sub44330-12111¥8,600

main44330-12120iAT151..RHD..(GL,XL)..(EUR,GEN)¥7,900198310-198711

MARK F,MARK F

sub44330-12121¥8,600

main44330-12130iCT150¥8,100198310-198711

MARK A,MARK A

sub44330-12131¥8,600

main44330-12140iCT150¥8,100198310-198711

MARK B,MARK B

sub44330-12141¥8,600

main44330-12150iCT150,ST150¥8,100198310-198711

MARK C,MARK C

sub44330-12151¥8,600

main44330-12160iCT150,ST150¥8,100198310-198711

MARK D,MARK D

sub44330-12161¥8,600

main44330-12170iCT150¥8,100198310-198711

MARK E,MARK E

sub44330-12171¥8,600

main44330-12180iCT150¥8,100198310-198711

MARK F,MARK F

sub44330-12181¥8,600

main44330-14010iAT151..LHD..(DX,GL,XL)¥7,900198310-198711

MARK A,MARK A

sub44330-20010¥8,600

main44330-14020iST150..GL..TH;ST15#..EUR,GEN,SAA¥7,900198310-198711

MARK B,MARK B

sub44330-20020¥8,600

main44330-14030iAT151..LHD..(DX,GL,XL)¥7,900198310-198711

MARK C,MARK C

sub44330-20030¥8,600

main44330-14040iAT151..LHD..(DX,GL,XL)¥7,900198310-198711

MARK D,MARK D

sub44330-20040¥8,600

main44330-14050iST150..GL..TH;ST15#..EUR,GEN,SAA¥7,900198310-198711

MARK E,MARK E

sub44330-20050¥8,600

main44330-14060iST150..GL..TH;ST15#..EUR,GEN,SAA¥7,900198310-198711

MARK F,MARK F

sub44330-20060¥8,600

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iST150..GL..TH¥160198507-198711

main90501-12447iAT151,CT150,ST150..DX,GL,XL¥660198310-198507

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iST150..GL..TH¥260198310-198711

main96151-02200iST150¥230198310-198508

44338UNION, PRESSURE PORT

main44308-12020iCT150198310-198507

main44308-12022iCT150¥7,200198507-198711

sub44308-12042¥7,100

main44308-12030iAT151..RHD..(GL,XL)¥9,100198310-198507

sub44308-12032¥7,200

main44308-12032iAT151..RHD..(GL,XL)..(EUR,GEN)¥7,200198507-198711

sub44308-12042¥7,100

main44308-12040iAT151..LHD..(DX,GL,XL)¥7,200198310-198507

sub44308-12041¥7,600

main44308-12042iAT151..LHD..(DX,GL,XL)¥7,100198507-198711

main44308-20010iST150¥9,200198310-198405

sub44308-20011

main44308-20011iST150198405-198507

main44308-20012iST150¥4,460198507-198508

main44308-20020iST150..GL..TH;ST15#..EUR,GEN,SAA¥3,860198508-198711

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iST150..GL..TH¥300198310-198711

ID=19.5,OD=22.5

sub90301-19013¥260

main90301-22001iST150¥590198310-198508

OD=25.5,ID=22.5,25.5

main96711-19014iST150¥210198310-198508

OD=17.0,ID=13.0,OD=17.6

44341PLATE, VANE PUMP SIDE, FRONT

main44341-12020iST150¥2,920198310-198508

sub44341-30030¥2,910

main44341-12030iAT151,CT150,ST15#..EUR,GEN,SAA¥2,920198310-198711

sub44341-32010¥2,910

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-21001iST150¥320198310-198508

INNER

main90301-25001iAT151,CT150..DX,GL,XL¥300198310-198711

INNER

sub90301-25008¥300

main90301-52001iAT151,CT150,ST15#..EUR,GEN,SAA¥300198310-198711

OUTER

main90301-56002iST150¥350198310-198508

OUTER

44342PLATE, VANE PUMP SIDE, REAR

main44342-12010iST150¥6,500198310-198402

main44342-12020iAT151,CT150..DX,GL,XL¥6,200198310-198507

main44342-12021iAT151,CT150,ST15#..EUR,GEN,SAA¥3,350198507-198711

sub44342-32010¥4,150

main44342-22010iST150¥2,920198402-198508

sub44342-30020¥2,910

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-13004iST150¥260198402-198508

INNER

main90301-30004iST150¥260198402-198508

OUTER

main90301-37002iST150¥360198310-198402

main90301-52001iAT151,CT150..DX,GL,XL¥300198310-198711

44343SEAT, FLOW CONTROL SPRING

main44343-12010iAT151,CT150..DX,GL,XL¥1,240198310-198711

main44343-12030iST150¥1,190198310-198508

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19014iST150..GL..TH¥210198310-198711

main96711-19019iST150¥210198310-198508

44348PLATE, VANE PUMP

main44345-12010iST150..GL..TH¥660198310-198711

L=14.997,L=14.996-14.998,ROTOR NO MARK

main44345-12020iAT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)¥660198310-198711

L=14.995,L=14.994-14.996,ROTOR MARK 1

main44345-12030iST150..GL..TH¥660198310-198711

L=14.993,L=14.992-14.994,ROTOR MARK 2

main44345-12040iST150..GL..TH¥660198310-198711

L=14.991,L=14.990-14.992,ROTOR MARK 3

main44345-12050iST150..GL..TH¥660198310-198711

L=14.989,L=14.988-14.990,ROTOR MARK 4

44362RESERVOIR, OIL(FOR VANE PUMP)

main44306-12030iAT151..LHD..(DX,GL,XL)¥10,100198310-198711

main44306-12050iAT151..RHD..(GL,XL)..(EUR,GEN)¥10,000198310-198711

main44360-12020iCT150¥10,200198310-198711

main44360-20050iST150..GL..TH;ST15#..EUR,GEN,SAA¥6,700198310-198711

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main90301-12003iAT151..(DX,GL,XL)..(EUR,GEN,SAA)¥300198310-198711

sub90301-11016¥140

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-12010iAT151..RHD..(GL,XL)..(EUR,GEN)¥200198310-198711

main44391-12020iAT151..LHD..(DX,GL,XL)198310-198711

44441BBRACKET, PUMP, FRONT

main44441-12020iAT151..(DX,GL,XL)..(EUR,GEN,SAA)¥1,480198310-198711

9017912022

main90179-12022¥370

9020630002

main90206-30002¥300

9161160814

main91611-60814¥100

9161161016

main91611-61016¥270

9165140614

main91651-40614¥160

9165160610

main91651-60610¥100
