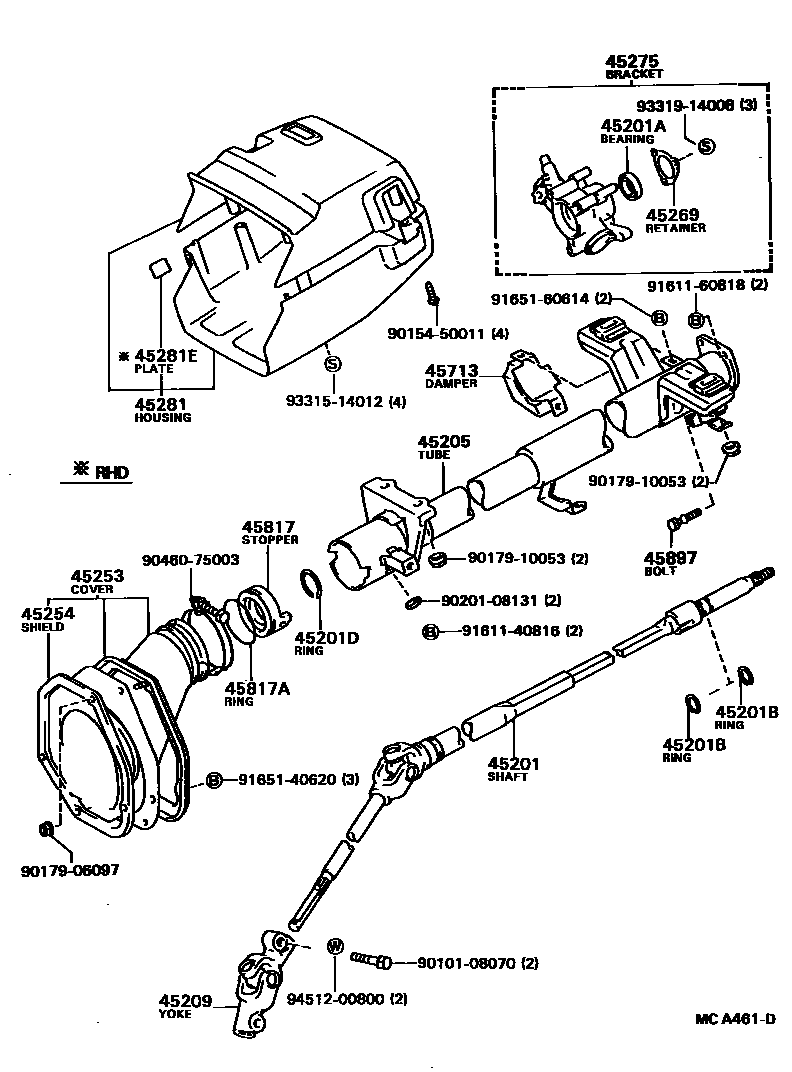

STEERING COLUMN & SHAFT

0001 1 0003 1

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-20110iAT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)198310-198711

W/POWER STEERING

main45210-20110iST150..GL..TH198508-198608

main45210-20150iAT151..RHD198310-198711

main45210-20160iAT151..LHD198310-198711

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iAT151,CT150,ST15#198310-198711

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iAT151,CT150,ST15#198310-198711

T=1.20,T=1.2

main90520-17196iAT151,CT150,ST15#198310-198711

T=1.35-1.45,T=1.4

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iAT151,CT150,ST15#198310-198711

45205TUBE SUB-ASSY, STEERING COLUMN

main45870-20110iAT151,ST150..XL..TH198310-198711

main45870-20120iAT151,ST15#..RHD..ATM..(EUR,GEN)198310-198711

main45870-20130iST150..GL..TH198508-198608

main45870-20130iAT151,CT150,ST15#..RHD..(EUR,GEN)198310-198711

W/TILT STEERING

main45870-20140iAT151,CT150,ST150..LHD198310-198711

main45870-20150iAT151,CT150,ST150..LHD198310-198711

W/TILT STEERING

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-32010iAT151;ST150..LB..XL;ST150..SED..RHD..GEN;ST150..SED..XL..(SAA,TH);ST150..SED..LHD..XL..GEN198310-198711

sub45209-10020

main45209-32020iST150..GL..TH198508-198608

sub45209-16010

main45209-32020iAT151,CT150,ST15#..(DX,GL,XL)..(EUR,GEN,SAA)198310-198711

W/POWER STEERING

sub45209-16010

45253COVER, STEERING COLUMN HOLE

main45025-20130iAT151,CT150,ST15#..RHD198310-198711

main45025-20140iAT151,CT150,ST150..LHD198310-198711

45254SHIELD, STEERING COLUMN HOLE

main45254-20080iAT151,CT150,ST15#..RHD198310-198711

main45254-20090iAT151,CT150,ST150..LHD198210-198711

45269RETAINER, MAIN SHAFT BEARING

main45269-10010iAT151,CT150,ST15#198310-198711

45275BRACKET, STEERING COLUMN, UPPER

main45280-20240iAT151,CT150,ST15#..RHD198310-198703

main45280-20241iAT151,CT150,ST15#..RHD198703-198711

sub45280-20261

main45280-20250iAT151,CT150,ST150..LHD198310-198508

main45280-20260iAT151,CT150,ST15#..RHD198310-198703

W/*EL

main45280-20261iAT151,CT150,ST15#..RHD198703-198711

W/*EL

main45280-20270iAT151,ST150..LHD..GL..(GEN,SAA)198310-198508

W/*EL

main45280-20310iAT151,CT150,ST150..LHD198508-198703

sub45280-20320

main45280-20311iAT151,CT150,ST150..LHD198703-198711

sub45280-20321

main45280-20320iAT151,ST150..LHD..GL..(GEN,SAA)198508-198703

W/*EL

main45280-20321iAT151,ST150..LHD..GL..(GEN,SAA)198703-198711

W/*EL

45281HOUSING, STEERING COLUMN

main45286-20923-02iAT151,CT150,ST150..LHD198310-198711

MAROON,RED/MAROON,TRIM3#

sub45286-20923

main45286-20923-03iAT151,CT150,ST150..LHD198310-198711

GRAY,GRAY,TRIM1#

sub45286-20923

main45286-20923-04iAT151,CT150,ST150..LHD198310-198508

BLUE,BLUE,TRIM8#

sub45286-20923

main45286-20923-14iAT151,CT150,ST150..LHD198508-198711

BLUE,BLUE,TRIM8#

sub45286-20923

main45286-20924-02iAT151,CT150,ST150..LHD198310-198711

MAROON,W/TILT STEERING,RED/MAROON,TRIM3#

sub45286-20924

main45286-20924-03iAT151,CT150,ST150..LHD198310-198711

GRAY,W/TILT STEERING,GRAY,TRIM1#

sub45286-20924

main45286-20924-04iAT151,CT150,ST150..LHD198310-198508

BLUE,W/TILT STEERING,BLUE,TRIM8#

sub45286-20924

main45286-20924-14iAT151,CT150,ST150..LHD198508-198711

BLUE,W/TILT STEERING,BLUE,TRIM8#

sub45286-20924

main45286-20925-02iAT151,CT150,ST15#..RHD..(EUR,GEN)198310-198711

DEEP MAROON,RED/MAROON,TRIM3#

sub45286-20925

main45286-20925-02iAT151,ST150..XL..TH198508-198608

MAROON,RED/MAROON,TRIM3#

sub45286-20925

main45286-20925-03iAT151,CT150,ST15#..RHD..(EUR,GEN)198310-198711

GRAY,GRAY,TRIM1#

sub45286-20925

main45286-20925-04iAT151,CT150,ST150..RHD198310-198608

BLUE,BLUE,TRIM8#

sub45286-20925

main45286-20925-14iAT151,CT150,ST15#..RHD..(EUR,GEN)198508-198711

BLUE,BLUE,TRIM8#

sub45286-20925

main45286-20926-02iST150..GL..TH198508-198608

MAROON,RED/MAROON,TRIM3#

sub45286-20926

main45286-20926-02iAT151,CT150,ST15#..RHD..(EUR,GEN)198310-198711

MAROON,W/TILT STEERING,RED/MAROON,TRIM3#

sub45286-20926

main45286-20926-03iST150..GL..TH198508-198608

GRAY,GRAY,TRIM1#

sub45286-20926

main45286-20926-03iAT151,CT150,ST15#..RHD..(EUR,GEN)198310-198711

GRAY,W/TILT STEERING,GRAY,TRIM1#

sub45286-20926

main45286-20926-04iAT151,CT150,ST150..RHD198310-198508

BLUE,W/TILT STEERING,BLUE,TRIM8#

sub45286-20926

main45286-20926-14iST150..GL..TH198508-198608

BLUE,BLUE,TRIM8#

sub45286-20926

main45286-20926-14iAT151,CT150,ST15#..RHD..(EUR,GEN)198508-198711

BLUE,W/TILT STEERING,BLUE,TRIM8#

sub45286-20926

45281EPLATE, SAFETY CAUTION

main45283-22010iAT151,CT150,ST15#..RHD198310-198711

45713DUMPER, STEERING SHAKE

main45713-20010iCT150198310-198508

45817STOPPER, STEERING SHAFT THRUST

main45808-20020iAT151,CT150,ST15#198310-198711

sub45808-20030

45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)

main90301-54002iAT151,CT150,ST15#198512-198711

main96711-24056iAT151,CT150,ST15#198310-198512

45897BOLT, STEERING LOCK SET

main45897-12020iAT151,CT150,ST15#198310-198711

9010108070

main90101-08070

9015450011

main90154-50011

9017906097

main90179-06097

9017910053

main90179-10053

9020108131

main90201-08131

9046075003

main90460-75003

9161140816

main91611-40816

9161160818

main91611-60818

9165140620

main91651-40620

9165160614

main91651-60614

9331514012

main93315-14012

9331914008

main93319-14008

9451200800

main94512-00800

29 parts on this diagram · 2 diagrams in section
