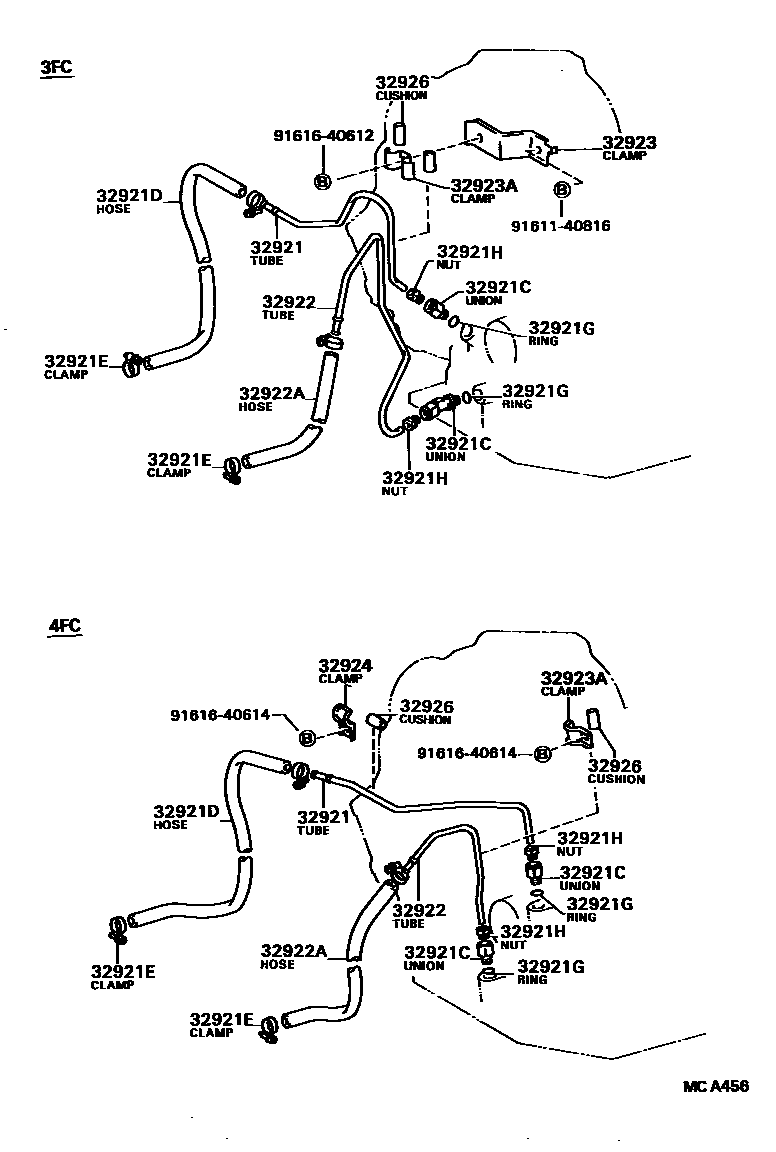

OIL COOLER & TUBE (ATM)

0001 1 0003 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-12200iAT151..4FC198401-198503

main32921-12220iAT151..3FC198310-198711

main32921-12310iAT151..4FC198503-198711

main32921-20200iST150..3FC198310-198711

main32921-20220iST15#..4FC198508-198711

32921CUNION(FOR OIL COOLER TUBE)

main32901-32010iST150..3FC198609-198711

OUTLET

main90404-14007iAT151,ST150..3FC198310-198711

INLET

main90404-14007iAT151,ST15#..4FC198401-198711

main90407-14004iAT151..3FC198310-198711

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-14052iAT151..ATM198310-198503

main90445-14053iST150..3FC198310-198503

sub90445-14092

main90445-16026iAT151..ATM198503-198711

main90445-16027iST150..3FC198503-198711

main90445-16028iST15#..4FC198508-198711

sub90445-16030

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085iAT151,ST150..ATM198310-198503

sub90460-20004

main90460-18002iAT151,ST15#..ATM198503-198711

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iAT151,ST15#..ATM198310-198711

32921HNUT, FLARE(FOR OIL COOLER TUBE)

main90402-14004iAT151..4FC198405-198711

OUTLET

main90402-14007iAT151,ST15#..4FC198401-198711

INLET

main96310-11400iAT151,ST150..3FC198310-198405

main96310-11400iAT151..LB..4FC;AT151..SED..LHD..4FC198401-198405

OUTLET

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-12190iAT151..4FC198401-198503

main32922-12210iAT151..3FC198310-198503

main32922-12240iAT151..4FC198503-198711

main32922-12250iAT151..3FC198503-198711

main32922-20200iST150..3FC198310-198609

main32922-20210iST15#..4FC198508-198711

main32922-32030iST150..3FC198609-198711

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-14080iAT151,ST150..ATM198310-198503

main90445-16019iAT151,ST150..3FC198503-198711

sub90445-16022

main90445-16022iAT151..4FC198503-198711

main90445-16024iST15#..4FC198508-198711

sub90445-15016

sub90467-13039

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-12070iAT151..3FC198310-198608

sub32923-12071

main32923-12071iAT151..3FC198608-198711

main32923-32010iST150..3FC198310-198711

sub32923-20090

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90462-10082iAT151,ST15#..4FC198401-198711

main90462-12085iAT151,ST150..3FC198310-198711

32924CLAMP, OIL COOLER TUBE, NO.2

main90462-10082iAT151,ST15#..4FC198401-198711

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011iAT151,ST15#..ATM198310-198711

L=25,ID=8

9161140816

main91611-40816

9161640612

main91616-40612

9161640614

main91616-40614

15 parts on this diagram · 2 diagrams in section
