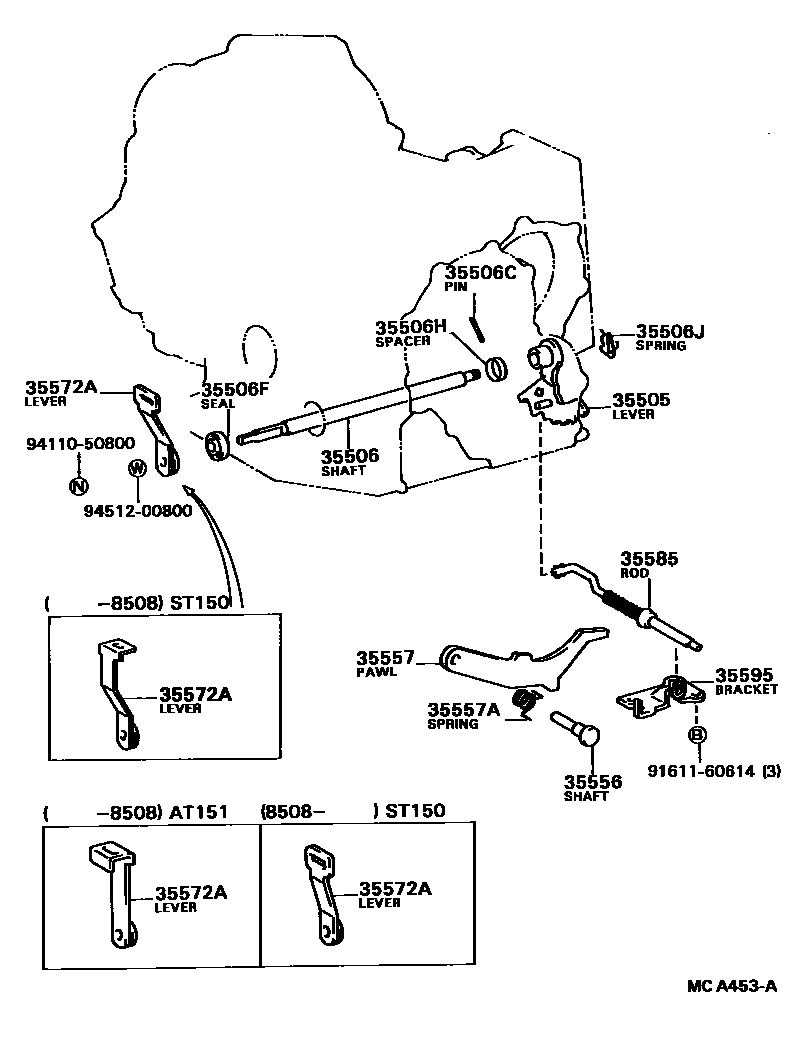

THROTTLE LINK & VALVE LEVER (ATM)

0001 1 0002 1 0003 1

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-12020iAT151,ST15#..4FC198401-198711

sub35505-12030

main35505-32011iAT151,ST150..3FC198310-198711

sub35505-20010

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35561-12020iAT151,ST15#..4FC198401-198711

main35561-32010iAT151,ST150..3FC198310-198711

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iAT151,ST15#..ATM198310-198711

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iAT151,ST15#..ATM198310-198711

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iAT151,ST15#..ATM198310-198711

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iAT151,ST150..3FC198310-198711

main90524-11001iAT151,ST15#..4FC198401-198711

35556SHAFT, PARKING LOCK PAWL

main35556-12020iAT151,ST15#..4FC198401-198711

main35556-32010iAT151,ST150..3FC198310-198711

35557PAWL, PARKING LOCK

main35557-12020iAT151,ST15#..4FC198401-198711

main35557-32010iAT151,ST150..3FC198310-198404

main35557-32020iAT151,ST150..3FC198404-198711

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21003iAT151,ST15#..4FC198412-198711

main90508-26047iAT151,ST150..3FC198310-198711

main90508-26058iAT151..4FC198401-198412

sub90508-21003

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-12050iAT151..3FC198310-198508

main35572-12060iAT151..4FC198401-198508

main35572-20120iST150..3FC198310-198508

main35572-20130iAT151,ST15#..4FC198508-198711

main35572-20140iAT151..3FC198508-198711

main35572-32010iST150..3FC198508-198708

sub35572-32011

main35572-32011iST150..3FC198708-198711

35585ROD, PARKING LOCK

main35501-12010iAT151,ST15#..4FC198401-198711

main35501-32010iAT151,ST150..3FC198310-198711

35595BRACKET, PARKING LOCK PAWL

main35595-32010iAT151,ST150..3FC198310-198711

9161160614

main91611-60614

9411050800

main94110-50800

9451200800

main94512-00800

15 parts on this diagram · 3 diagrams in section
