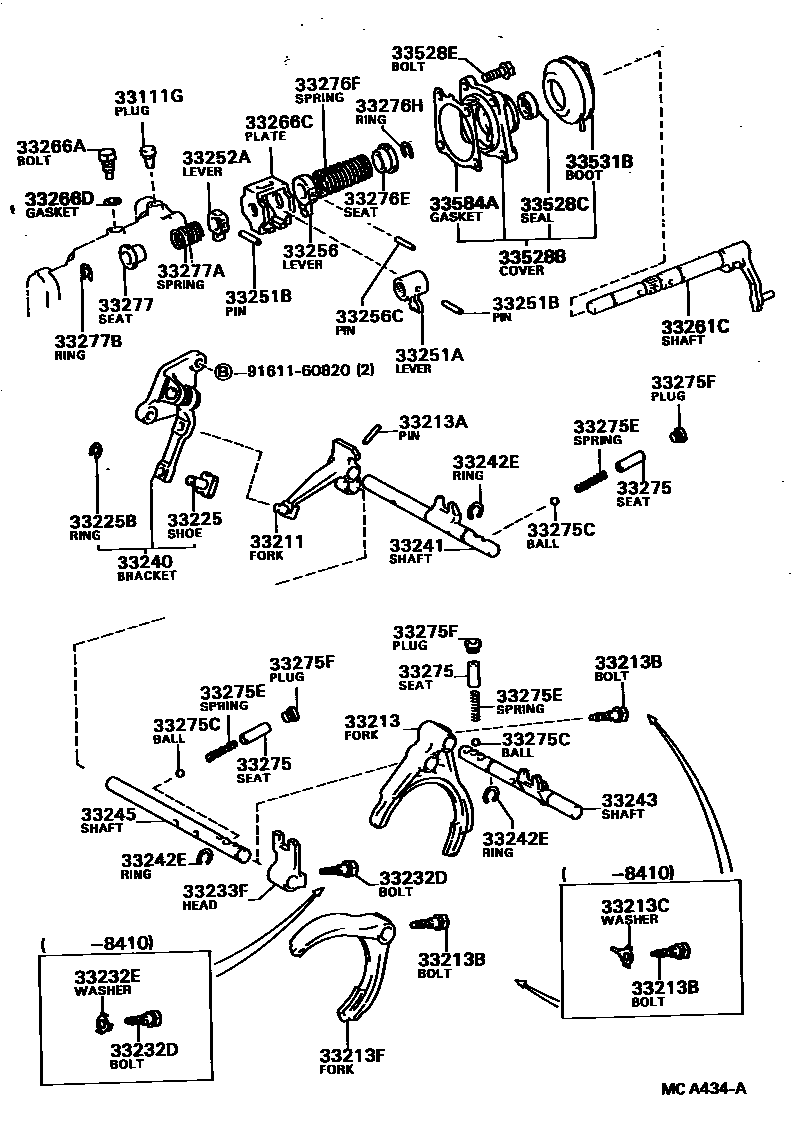

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33211FORK, REVERSE SHIFT
33213FORK, 1ST & 2ND SHIFT
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33213CWASHER, LOCK(FOR SHIFT FORK SET)
33213FFORK, 3RD & 4TH SHIFT
33225SHOE, SHIFT ARM
33225BRING, E(FOR SHIFT ARM SHOE)
33232DBOLT (FOR SHIFT HEAD SET)
33232EWASHER, LOCK (FOR SHIFT HEAD SET)
33233FHEAD, 3RD & 4TH SHIFT
33240BRACKET ASSY, REVERSE SHIFT ARM
33241SHAFT, REVERSE SHIFT FORK
33242SHAFT, GEAR SHIFT FORK, NO.1
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33243SHAFT, 1ST & 2ND SHIFT FORK
33245SHAFT, 3RD & 4TH SHIFT FORK
33251ALEVER, SHIFT, INNER NO.1
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=47.0
L=25.5
33252ALEVER, SHIFT, INNER NO.2
33256LEVER, SELECT INNER
33256CPIN, SLOTTED SPRING (FOR SELECT INNER LEVER)
33261CSHAFT, SHIFT & SELECT LEVER
33266ABOLT (FOR SHIFT INTERLOCK PLATE)
33266CPLATE, SHIFT INTERLOCK
33266DGASKET (FOR SHIFT INTERLOCK PLATE)
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=10.7
33275CBALL (FOR SHIFT DETENT)
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
33275FPLUG (FOR SHIFT DETENT BALL)
33276ESEAT, SELECT SPRING, NO.1
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33276HRING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT)
33277SEAT, SELECT SPRING, NO.2
33277ASPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
33277BRING, E (FOR SELECT SPRING NO.2 SEAT)
33528BCOVER, CONTROL SHAFT
33528CSEAL, OIL (FOR CONTROL SHAFT COVER)
33528EBOLT (FOR CONTROL SHAFT COVER)
*10-1.25PX25-19.8
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
33584AGASKET, CONTROL SHIFT LEVER RETAINER
9161160820
43 parts on this diagram · 6 diagrams in section
