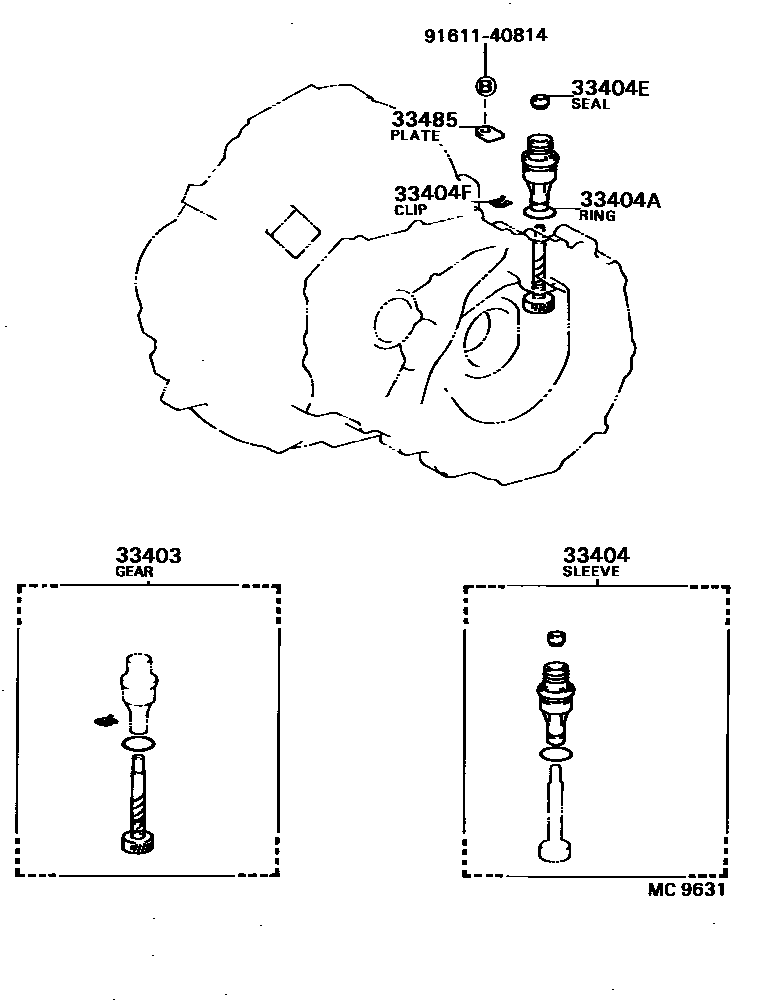

SPEEDOMETER DRIVEN GEAR (MTM)
33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
N=31,MARK 31:35,N=31,175/70SR13 TIRE
N=30,MARK 30:35,N=30,165SR13 TIRE
N=22,MARK 22:25
33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
9161140814
main91611-40814
7 parts on this diagram · 2 diagrams in section
