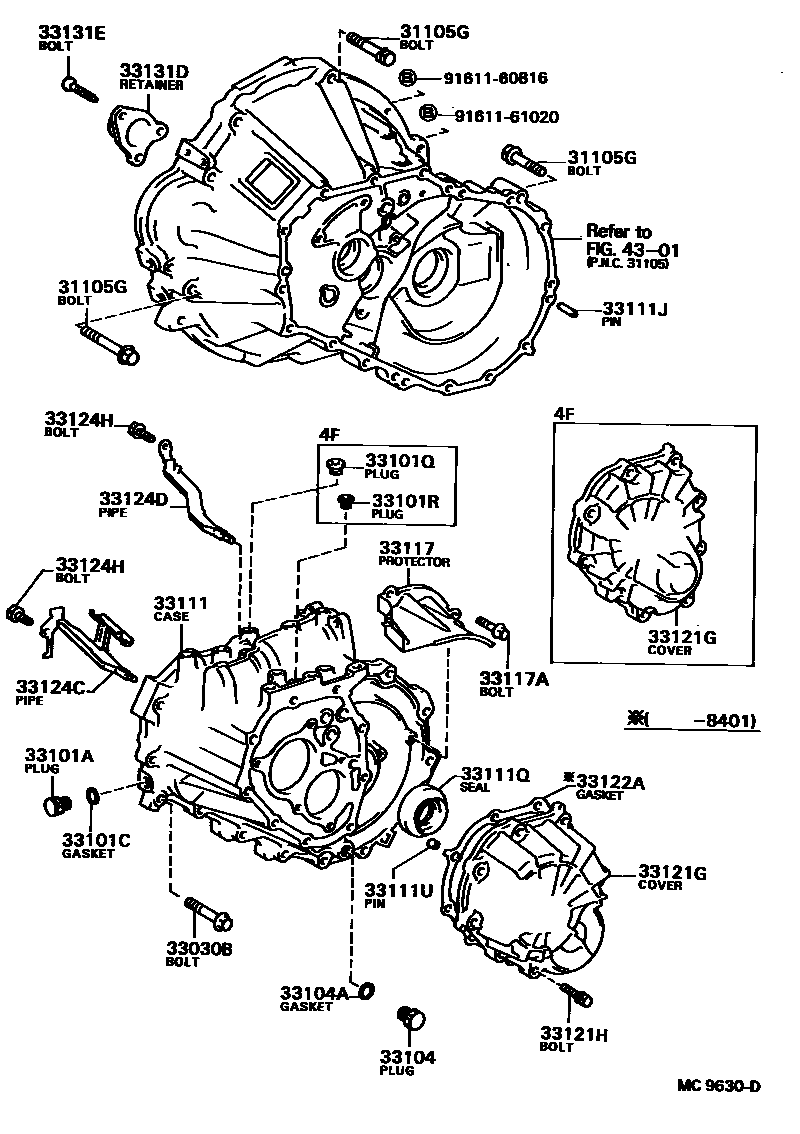

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iCT150,ST15#..MTM¥180198408-198711

*8-1.25PX18-15,*8-1.25PX18-15

sub91641-H0820¥90

main90105-10055iCT150,ST150..MTM¥260198310-198408

*10-1.25PX43-26,*10-1.25PX43-26

sub90105-10077¥260

main90105-10077iAT151,CT150,ST15#..MTM¥260198310-198711

*10-1.25PX43-26,*10-1.25PX43-26

main90119-12042iAT151..MTM¥260198310-198711

*12-1.25PX75-30,*12-1.25PX75-30

main90119-12168iAT151,CT150,ST15#..MTM¥170198310-198711

*12-1.25PX55-30,*12-1.25PX55-30

main91651-41022iST15#..MTM¥160198607-198711

*10-1.25PX22-22,*10-1.25PX22-22

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042iCT150,ST15#..MTM¥300198310-198711

*8-1.25PX45-27.5

sub90105-08430¥100

main90105-08064iAT151..MTM¥190198310-198711

*8-1.25PX51-28

sub90105-08353¥100

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18002iCT150,ST15#..MTM¥580198310-198711

main90341-18006iAT151..MTM¥180198310-198711

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18007iAT151,CT150,ST150..MTM¥210198310-198408

sub90430-18008¥110

main90430-18008iAT151,CT150,ST15#..MTM¥110198408-198711

33101QPLUG, NO.1(FOR TRANSMISSION CASE)

main90341-10065iST150..4F¥220198310-198711

main90341-14008iAT151..4F¥130198310-198711

33101RPLUG, NO.2(FOR TRANSMISSION CASE)

main90341-10065iAT151..4F¥220198310-198711

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAT151,CT150,ST15#..MTM¥180198310-198711

main90341-18057iCT150,ST150..MTM¥350198310-198502

33104AGASKET, DRAIN PLUG(MTM)

main90430-18007iAT151,CT150,ST150..MTM¥210198310-198408

sub90430-18008¥110

main90430-18008iAT151,CT150,ST15#..MTM¥110198408-198711

33111CASE, MANUAL TRANSMISSION

main33111-12170iAT151..MTM¥35,100198310-198608

sub33111-16040¥35,000

main33111-16040iAT151..MTM¥35,000198608-198711

sub33111-16070¥35,000

sub90109-12073¥230

main33111-32011iCT150,ST150..MTM¥38,800198310-198404

sub33111-32H00¥38,700

main33111-32012iCT150,ST150..MTM¥39,000198404-198507

sub33111-32013¥39,100

sub90341-16001¥330

main33111-32013iCT150,ST15#..MTM¥39,100198507-198604

sub33111-32014¥35,600

sub33151-32011¥2,500

main33111-32014iCT150,ST15#..MTM¥35,600198604-198711

sub33111-20140¥35,500

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iAT151,CT150,ST15#..MTM¥120198310-198711

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34008iAT151..MTM¥310198310-198711

sub90311-34017¥270

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iAT151..MTM¥120198310-198711

L=11,OD=11

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-12011iAT151..MTM¥1,080198310-198711

sub33117-16010¥730

main33117-32010iCT150,ST150..MTM¥2,010198310-198408

sub33117-32011¥2,010

main33117-32011iCT150,ST15#..MTM¥2,010198408-198711

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iAT151,CT150,ST15#..MTM¥180198310-198711

sub91641-H0820¥90

33121GCOVER, MANUAL TRANSMISSION CASE

main33102-12010iAT151..4F¥15,500198310-198711

main33102-12020iAT151..5F¥15,600198310-198711

sub33102-12021¥9,800

main33102-32010iCT150,ST150..MTM¥13,500198310-198404

sub33102-32011¥14,600

main33102-32011iCT150,ST15#..MTM¥14,600198404-198711

sub33102-32012¥16,300

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08057iCT150,ST150..MTM¥280198310-198404

main90105-08089iCT150,ST15#..MTM¥190198404-198711

sub90105-08273¥170

main91611-60835iAT151..MTM¥90198310-198711

33122AGASKET, MANUAL TRANSMISSION CASE COVER

main33122-12040iAT151..MTM¥210198310-198401

main33122-32010iCT150,ST150..MTM¥700198310-198404

sub33122-32011¥750

main33122-32011iCT150,ST150..MTM¥750198404-198504

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12010iAT151..MTM¥1,190198310-198711

main33124-32010iCT150,ST15#..MTM¥740198310-198510

sub33124-32011¥790

main33124-32011iCT150,ST15#..MTM¥790198510-198711

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12020iAT151..MTM¥1,190198310-198711

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60812iAT151..MTM¥140198310-198411

sub91611-B0812¥70

main91611-60820iAT151..MTM¥200198411-198711

sub91611-G0820¥160

main91651-60618iCT150,ST15#..MTM¥90198310-198711

33131DRETAINER, BEARING, FRONT

main33131-12070iAT151..MTM¥1,780198310-198708

sub33131-12071¥1,760

main33131-12071iAT151..MTM¥1,760198708-198711

sub33131-12080¥1,760

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028iAT151..MTM¥70198310-198711

4301

9161160816

main91611-60816¥230

9161161020

main91611-61020¥240

25 parts on this diagram · 2 diagrams in section
