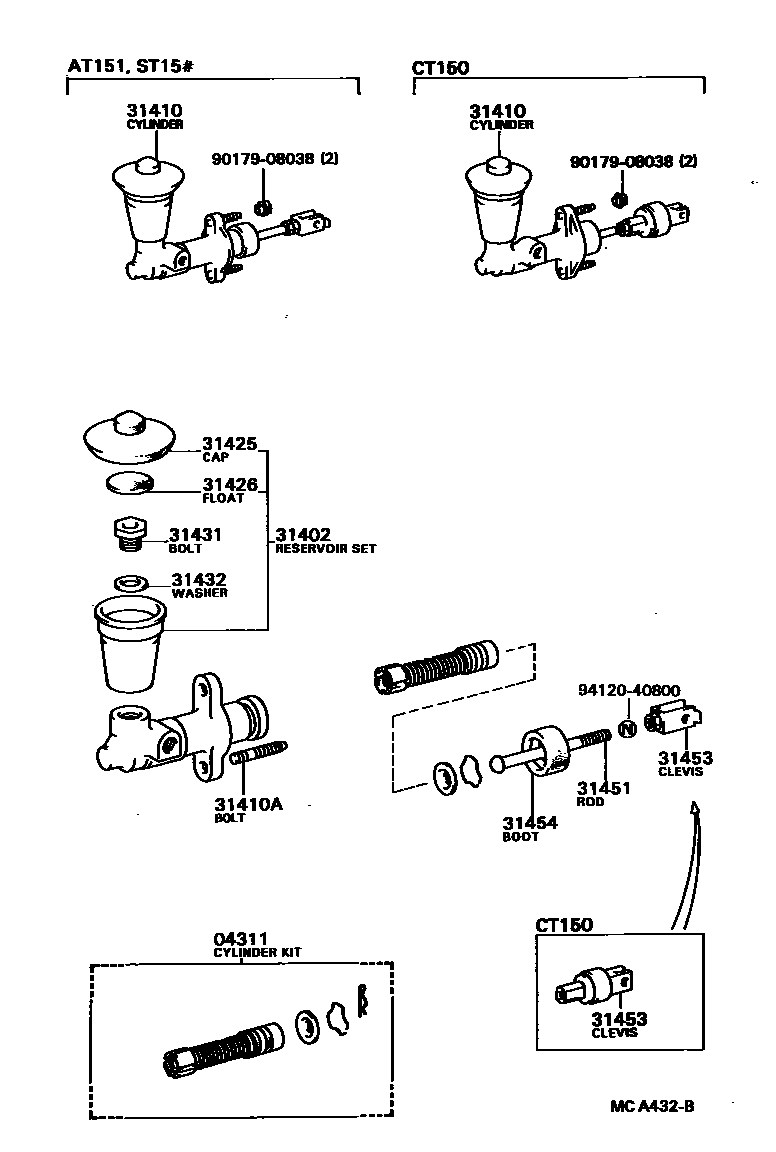

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12030iAT151..MTM198310-198402

sub04311-12031

main04311-14030iCT150198609-198704

sub04311-14031

main04311-14031iCT150198704-198710

sub04311-14032

main04311-14032iCT150198710-198711

sub04311-28010

main04311-30080iCT150198310-198609

sub04311-14020

main04311-32010iST150..MTM198310-198409

sub04311-32011

main04311-32020iAT151,ST150..MTM198409-198505

sub04311-32021

main04311-32021iAT151,ST15#..MTM198505-198704

sub04311-32022

main04311-32022iAT151,ST15#..MTM198704-198711

sub04311-32023

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-12010iAT151..MTM198310-198402

sub31402-30030

main31402-30030iCT150,ST150..MTM198310-198711

31410CYLINDER ASSY, CLUTCH MASTER

main31410-20190iST150..RHD..MTM198310-198409

sub31410-20390

main31410-20191iAT151,ST150..RHD..MTM198409-198505

sub31410-20192

main31410-20192iAT151,ST15#..RHD..MTM198505-198704

sub31410-20193

main31410-20193iAT151,ST15#..RHD..MTM198704-198710

sub31410-20194

main31410-20194iAT151,ST15#..RHD..MTM198710-198711

sub31410-20411

main31410-20210iCT150..RHD198310-198704

sub31410-20211

main31410-20211iCT150..RHD198704-198709

sub31410-20212

main31410-20220iAT151..RHD..MTM198310-198402

sub31410-20221

main31410-20230iST150..LHD..MTM198310-198409

sub31410-20400

main31410-20231iAT151,ST150..LHD..MTM198409-198505

sub31410-20232

main31410-20232iAT151,ST150..LHD..MTM198505-198704

sub31410-20233

main31410-20233iAT151,ST150..LHD..MTM198704-198710

sub31410-20234

main31410-20234iAT151,ST150..LHD..MTM198710-198711

main31410-20240iAT151..LHD..MTM198310-198402

sub31410-20241

main31410-20250iCT150..LHD198310-198703

sub31410-20251

main31410-20251iCT150..LHD198703-198710

sub31410-20252

main31410-20252iCT150..LHD198710-198711

main31410-20430iCT150..RHD198709-198711

sub31410-20431

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iAT151,CT150,ST15#..RHD..MTM198310-198711

main90116-08181iAT151,CT150,ST150..LHD..MTM198310-198711

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31440-35010iAT151..MTM198310-198402

sub47230-20040

main47230-20040iCT150,ST150..MTM198310-198711

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iAT151,CT150,ST15#..MTM198310-198711

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iAT151,CT150,ST15#..MTM198310-198711

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iAT151,CT150,ST15#..MTM198310-198711

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22070iCT150198609-198711

main31451-30060iCT150198310-198609

main31451-32010iAT151,ST15#..MTM198310-198711

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28011iCT150198412-198711

sub31404-28012

main31404-30041iCT150198310-198412

main31453-22010iAT151,ST15#..MTM198310-198610

sub31453-35010

main31453-35010iAT151,ST15#..MTM198610-198711

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iAT151,ST15#..MTM198310-198711

main31454-24010iCT150198310-198711

9017908038

main90179-08038

9412040800

main94120-40800

13 parts on this diagram · 2 diagrams in section
