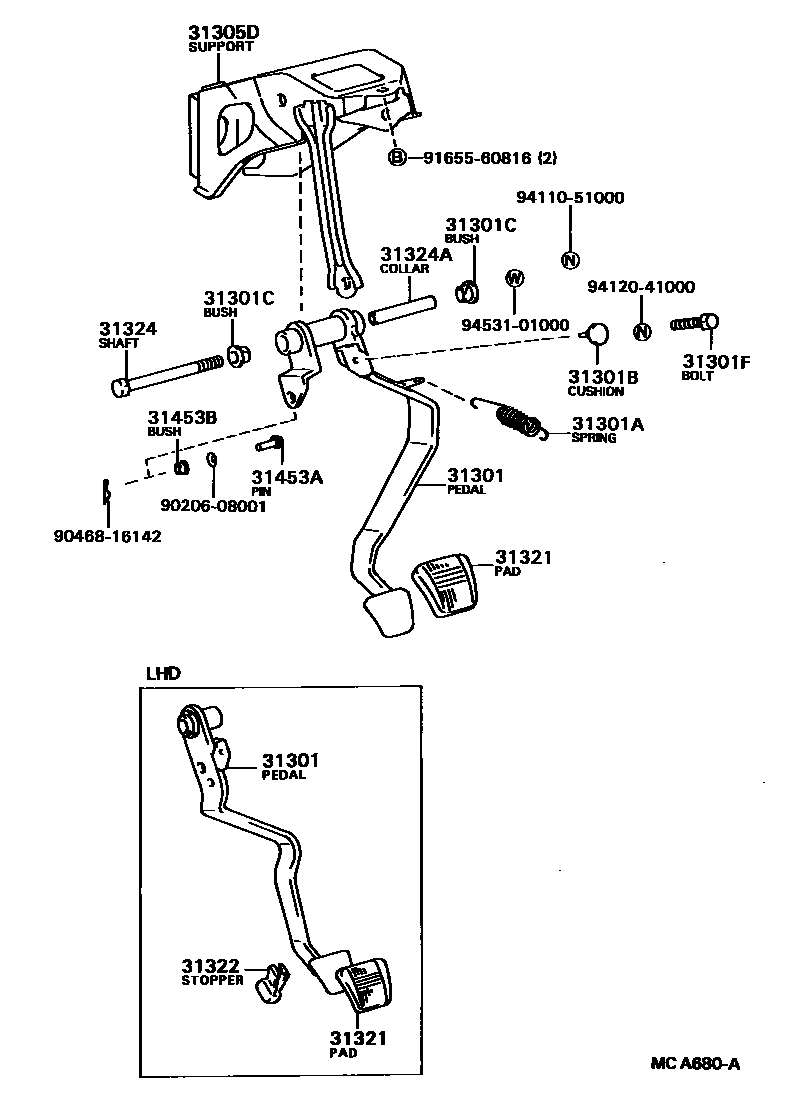

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-20170iAT151,CT150,ST15#..RHD..MTM198310-198711

main31301-20190iAT151,CT150,ST150..LHD..MTM198310-198711

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14003iAT151,CT150,ST15#..MTM198310-198711

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iAT151,CT150,ST15#..MTM198310-198711

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iAT151,CT150,ST15#..MTM198603-198711

main90386-13192iAT151,CT150,ST15#..MTM198310-198603

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iAT151,CT150,ST15#..MTM198310-198711

31305DSUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-20050iAT151,CT150,ST150..RHD..MTM198310-198507

main55107-20051iAT151,CT150,ST15#..RHD..MTM198507-198711

main55107-20060iAT151,CT150,ST150..LHD..MTM198310-198711

31321PAD, CLUTCH PEDAL

main31321-14020iAT151,CT150,ST15#..MTM198310-198711

31322STOPPER, CLUTCH PEDAL

main31322-20010iAT151,CT150,ST150..LHD..MTM198310-198711

31324SHAFT, CLUTCH PEDAL

main90101-10015iAT151,CT150,ST150..LHD..MTM198310-198711

main90101-10100iAT151,CT150,ST15#..RHD..MTM198310-198711

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10002iAT151,CT150,ST15#..RHD..MTM198310-198711

main90387-10003iAT151,CT150,ST150..LHD..MTM198310-198711

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iAT151,CT150,ST15#..MTM198310-198711

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iAT151,CT150,ST15#..MTM198310-198711

9020608001

main90206-08001

9046816142

main90468-16142

9165560816

main91655-60816

9411051000

main94110-51000

9412041000

main94120-41000

9453101000

main94531-01000

18 parts on this diagram · 2 diagrams in section
