CLUTCH & RELEASE FORK

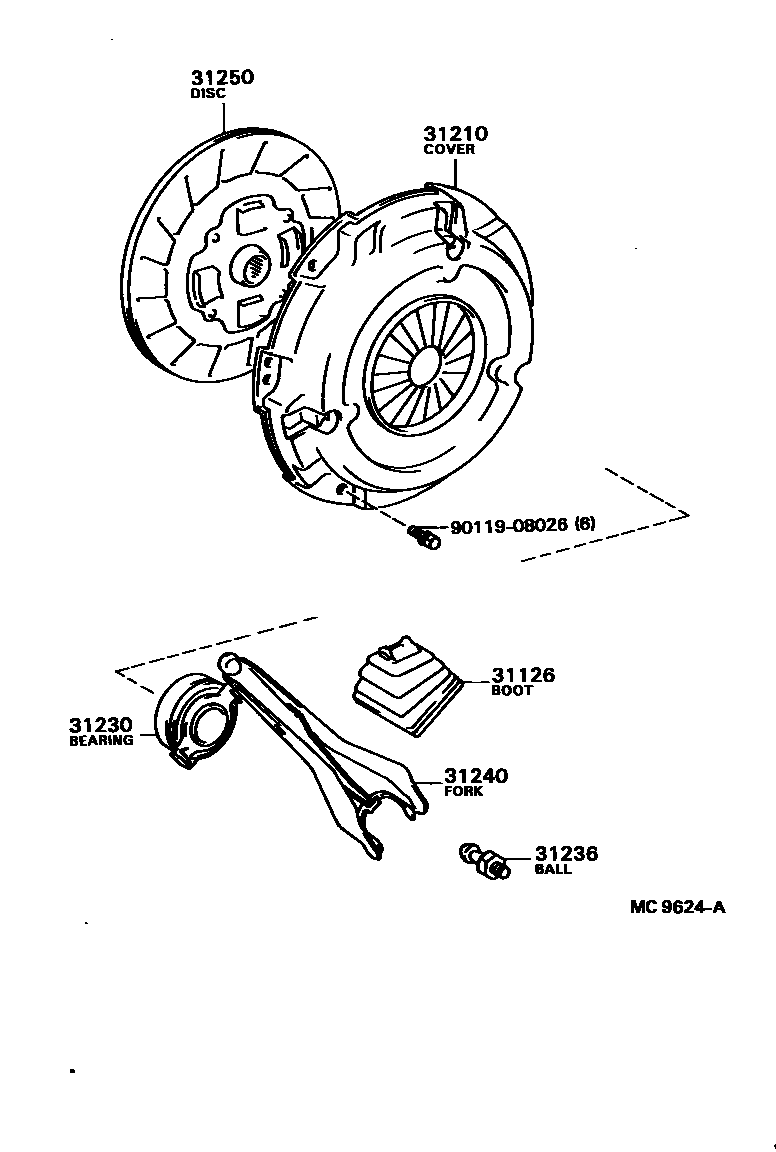

Parts diagram
31126BOOT, CLUTCH RELEASE FORK
main31126-12050i198310-198701
sub31126-12051
main31126-12051i198701-198711
main31126-32010i198310-198711
31210COVER ASSY, CLUTCH
main31210-12100i198310-198506
sub31210-12180
main31210-16100i198704-198711
sub31210-16101
main31210-20190i198310-198704
sub31210-32030
main31210-20200i198506-198704
sub31210-16100
main31210-32010i198508-198608
sub31210-32060
main31210-32020i198508-198608
sub31210-32030
main31210-32030i198608-198711
sub31210-32120
main31210-32050i198609-198711
sub31210-32051
main31210-32060i198608-198609
sub31210-32061
31230BEARING ASSY, CLUTCH RELEASE
main31230-12100i198606
sub31230-12140
main31230-12130i198310-198606
sub31230-12100
main31230-16060i198708-198711
sub31230-16061
main31230-32020i198310-198711
sub31230-32100
main31230-32040i198310-198609
sub31230-32020
31236BALL, RELEASE FORK
main31236-12011i198310-198711
main31236-30030i198310-198711
31240FORK ASSY, CLUTCH RELEASE
main31204-12050i198310-198711
main31204-32010i198310-198711
31250DISC ASSY, CLUTCH
main31250-12142i198310-198402
sub31250-12143
main31250-12143i198402-198601
sub31250-12144
main31250-12144i198601-198708
sub31250-12200
main31250-12160i198310-198312
sub31250-12162
main31250-12162i198312-198407
sub31250-12163
main31250-12163i198407-198711
sub31250-12220
main31250-12200i198708-198711
sub31250-12201
main31250-32021i198310-198312
sub31250-32023
main31250-32023i198312-198409
sub31250-32024
main31250-32024i198409-198609
sub31250-32025
main31250-32025i198609-198711
sub31250-32026
main31250-32032i198508-198711
sub31250-32041
9011908026
main90119-08026

7 parts on this diagram · 2 diagrams in section
