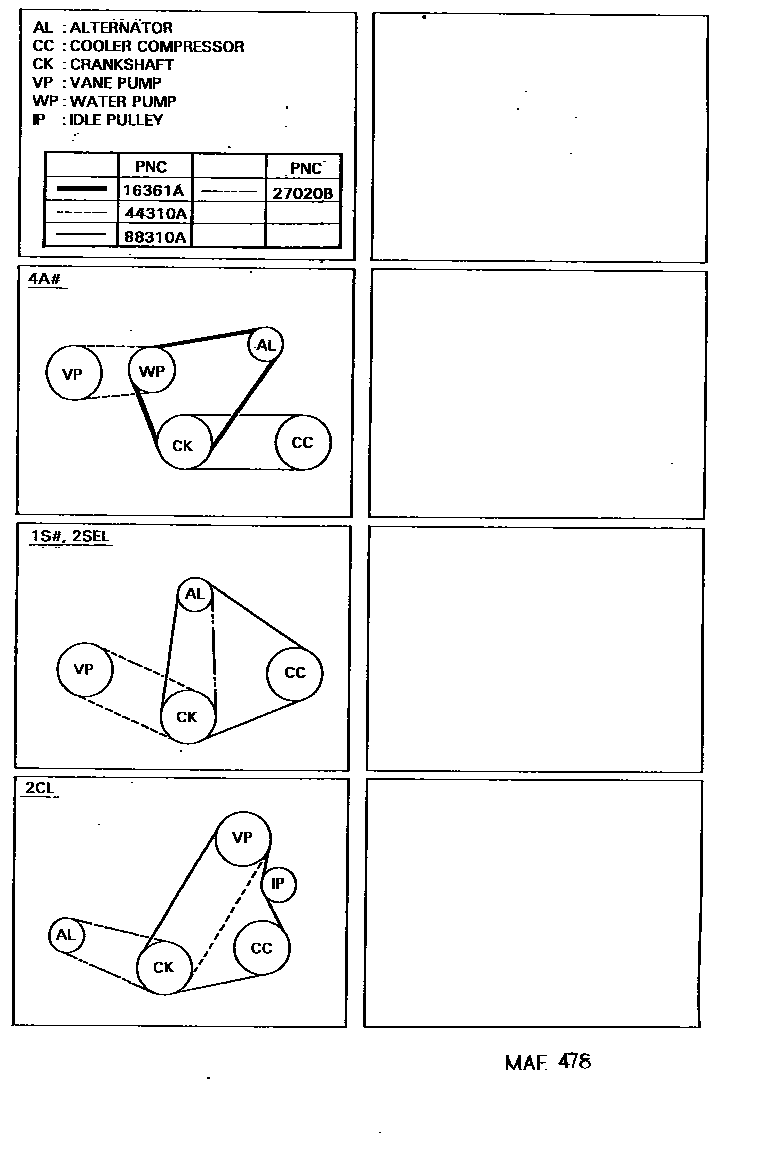

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main99365-00970i4AL#..AT151198310-198711

sub99365-20970

27020BBELT, V(FOR ALTERNATOR)

main90916-02125i2CL..CT150198310-198502

12V 55A,60A

sub90916-02140

main90916-02140i2CL..CT150198502-198711

12V 55A,60A

main99365-01000i1S#,2SEL..ST15#198310-198711

12V 45A,50A,55A,60A,70A

sub99365-81000

44310ABELT, V(FOR VANE PUMP)

main99363-50630iAT151..(DX,GL,XL)..(EUR,GEN,SAA)198310-198711

sub99363-80630

main99363-50760iST150..GL..TH;ST15#..EUR,GEN,SAA198310-198711

sub99363-80760

main99365-51120iCT150198310-198711

sub99365-81120

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00875iAT151..FRG198608-198711

sub99332-10875

main99322-10875iAT151..SAA;AT151..LHD..EUG198310-198711

sub99322-50875

main99365-51110iST15#198310-198711

sub99365-81110

main99365-51210iCT150..GEN198310-198711

sub99365-21210

4 parts on this diagram · 1 diagram in section
