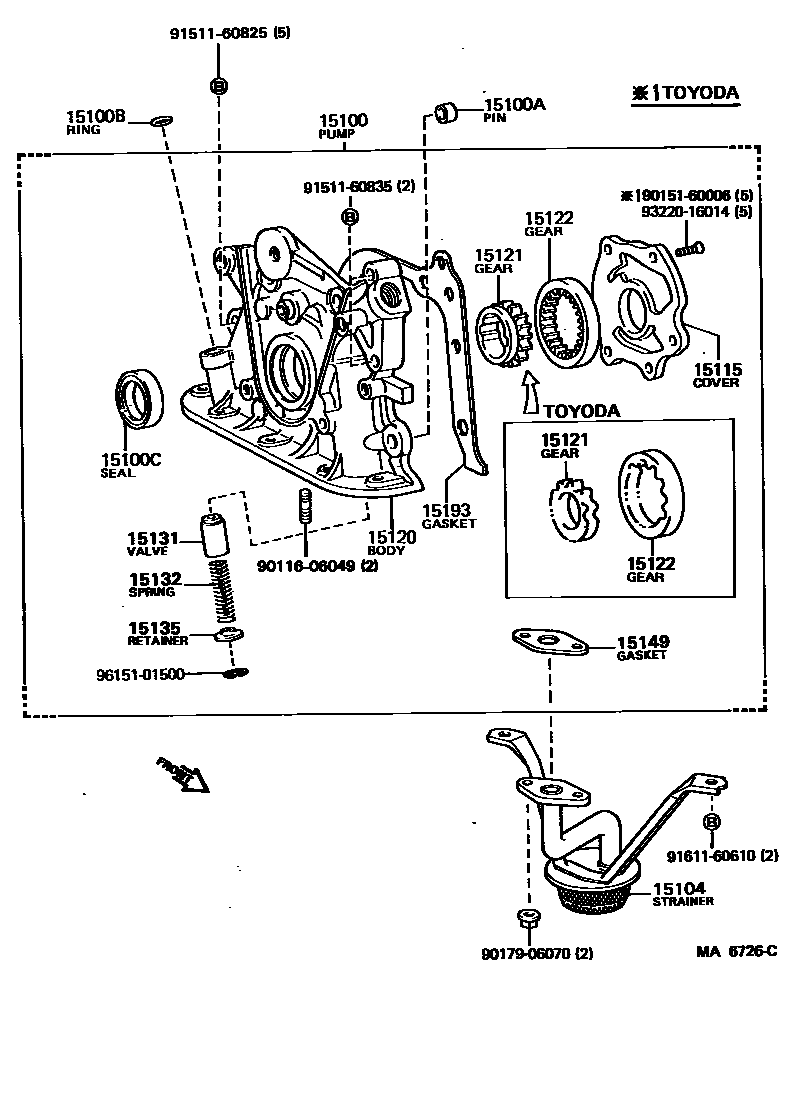

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

15100PUMP ASSY, OIL

main15100-15020i4AL#..AT151198511-198711

main15100-19015i4AL#..AT151198310-198511

sub15100-15020

main15100-63010i1S#,2SEL..ST15#198310-198711

main15100-64020i2CL..CT150198310-198711

sub15100-64021

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021i4AL#..AT151198310-198711

15100BRING, O(FOR OIL PUMP)

main15188-63010i1S#,2SEL..ST15#198310-198711

main96711-19010i4AL#..AT151198310-198711

15100CSEAL(FOR OIL PUMP)

main15165-64010i2CL..CT150198310-198505

main15165-70010i1S#,2SEL..ST15#198310-198711

main90029-21007i2CL..CT150198505-198711

sub90029-21020

main90311-32001i4AL#..AT151198310-198711

sub90311-32018

15104STRAINER SUB-ASSY, OIL

main15104-15080i4AL#..AT151198310-198711

sub15104-15090

main15104-63021i1S#,2SEL..ST15#198310-198711

main15104-64020i2CL..CT150198310-198505

main15104-64021i2CL..CT150198505-198711

sub15104-64060

15115COVER, OIL PUMP

main15115-15010i4AL#..AT151198310-198511

AISIN

main15115-15020i4AL#..AT151198511-198711

AISIN

main15115-15030i4AL#..AT151198505-198711

TOYODA

sub15115-16060

15120BODY SUB-ASSY, OIL PUMP

main15101-15020i4AL#..AT151198511-198711

AISIN

main15101-15030i4AL#..AT151198505-198711

TOYODA

main15120-15011i4AL#..AT151198310-198511

AISIN

15121GEAR, OIL PUMP DRIVE

main15121-15010i4AL#..AT151198310-198511

AISIN

main15121-15030i4AL#..AT151198505-198711

TOYODA

sub15103-15H00

15122GEAR, OIL PUMP DRIVEN

main15122-15010i4AL#..AT151198310-198511

AISIN

main15122-15030i4AL#..AT151198505-198711

TOYODA

sub15103-15H00

15131VALVE, OIL PUMP RELIEF

main15131-15030i4AL#..AT151198505-198711

TOYODA

main15131-24010i1S#,2SEL..ST15#198310-198711

AISIN

main15131-64020i2CL..CT150198310-198711

15132SPRING, OIL PUMP RELIEF VALVE

main15132-15030i4AL#..AT151198505-198711

TOYODA

main15132-40010i4AL#..AT151198310-198711

AISIN

main15132-76011i2CL..CT150198310-198711

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i1S#,2SEL..ST15#198310-198711

AISIN

main15135-15030i4AL#..AT151198505-198711

TOYODA

15149GASKET, OIL STRAINER FLANGE

main15149-15010i4AL#..AT151198310-198711

sub15149-15011

15193GASKET, OIL PUMP

main15193-64021i2CL..CT150198310-198711

sub15193-64022

main15197-15011i4AL#..AT151198310-198711

sub15197-15012

main15197-63010i1S#,2SEL..ST15#198310-198609

sub15197-63020

main15197-63020i1S#,2SEL..ST15#198609-198711

sub15197-63021

9011606049

main90116-06049

9015160006

main90151-60006

9017906070

main90179-06070

9151160825

main91511-60825

9151160835

main91511-60835

9161160610

main91611-60610

9322016014

main93220-16014

9615101500

main96151-01500

22 parts on this diagram · 4 diagrams in section
