CRANKSHAFT & PISTON

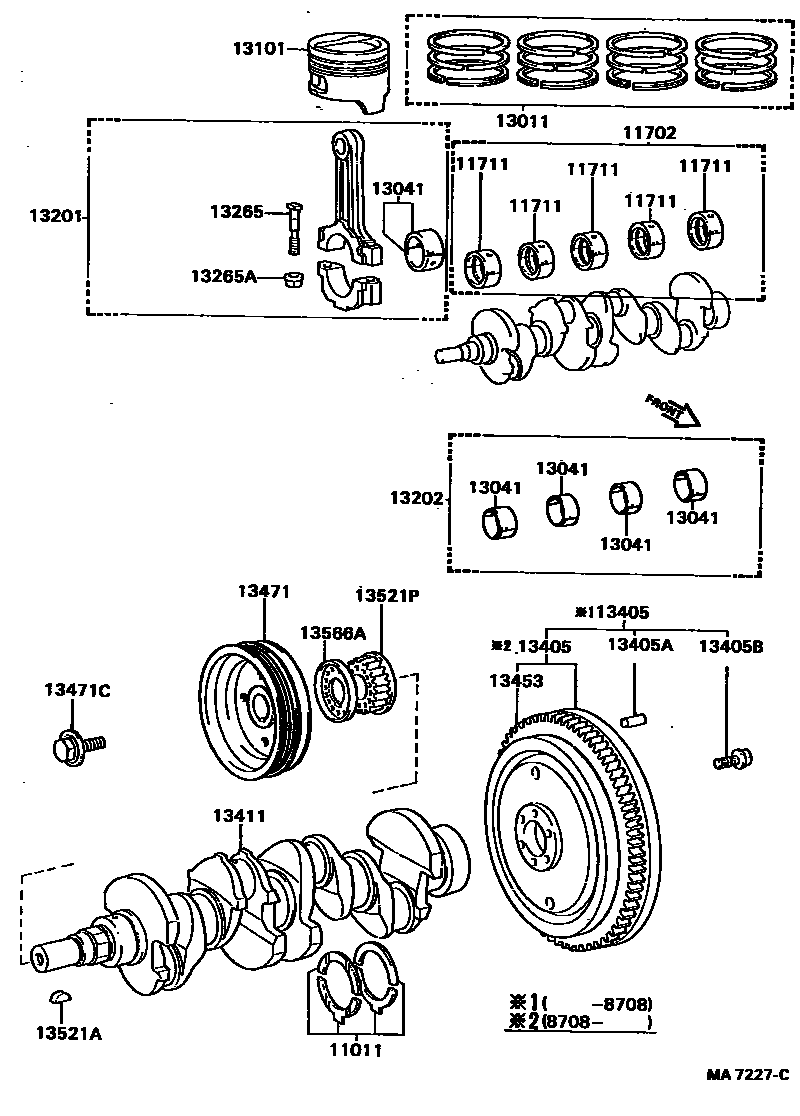

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-15010i198310-198711
STD
sub11011-15020
main11011-25010i198310-198711
STD
main11011-64010i198310-198711
STD,STD
main11012-64010i198310-198711
O/S 0.125,O/S 0.125
main11013-64010i198310-198711
O/S 0.250,O/S 0.250
11702BEARING SET, CRANKSHAFT
main11704-15050i198310-198711
U/S 0.25,U/S 0.25
sub11704-16010
main11704-63021i198507-198711
U/S 0.25,U/S 0.25
sub11704-63022
main11704-64030i198310-198508
U/S 0.25,U/S 0.25
sub11704-64040
main11704-64050i198508-198711
U/S 0.25,U/S 0.25
11711BEARING, CRANKSHAFT
main11071-63020-01i198507-198711
NO.3 MARK"1",MARK 1
sub11071-63021
main11071-63020-02i198507-198711
NO.3 MARK"2",MARK 2
sub11071-63021
main11071-63020-03i198507-198711
NO.3 MARK"3",MARK 3
sub11071-63021
main11071-63020-04i198608-198711
NO.3 MARK"4",MARK 4
sub11071-63021
main11071-63020-05i198608-198711
NO.3 MARK"5",MARK 5
sub11071-63021
main11701-15030-01i198310-198403
MARK"1",MARK 1
sub11701-16010
main11701-15030-02i198310-198403
MARK"2",MARK 2
sub11701-16010
main11701-15030-03i198310-198403
MARK"3",MARK 3
sub11701-16010
main11701-15050-01i198407-198711
MARK"1",MARK 1
sub11701-16010
main11701-15050-02i198407-198711
MARK"2",MARK 2
sub11701-16010
main11701-15050-03i198407-198711
MARK"3",MARK 3
sub11701-16010
main11701-15050-04i198608-198711
MARK"4",MARK 4
sub11701-16010
main11701-15050-05i198608-198711
MARK"5",MARK 5
sub11701-16010
main11701-16010-01i198403-198407
MARK"1",MARK 1
main11701-16010-02i198403-198407
MARK"2",MARK 2
main11701-16010-03i198403-198407
MARK"3",MARK 3
main11701-63020-01i198310-198507
NO.3 MARK"1",MARK 1
sub11071-63020
main11701-63020-02i198310-198507
NO.3 MARK"2",MARK 2
sub11071-63020
main11701-63020-03i198310-198507
NO.3 MARK"3",MARK 3
sub11071-63020
main11701-63021-01i198507-198711
NO.1,2,4,5 MARK"1",MARK 1
sub11701-63022
main11701-63021-02i198507-198711
NO.1,2,4,5 MARK"2",MARK 2
sub11701-63022
main11701-63021-03i198507-198711
NO.1,2,4,5 MARK"3",MARK 3
sub11701-63022
main11701-63021-04i198608-198711
NO.1,2,4,5 MARK"4",MARK 4
sub11701-63022
main11701-63021-05i198608-198711
NO.1,2,4,5 MARK"5",MARK 5
sub11701-63022
main11701-64030-01i198310-198508
MARK "1",MARK 1
sub11701-64040
main11701-64030-02i198310-198508
MARK "2",MARK 2
sub11701-64040
main11701-64030-03i198310-198508
MARK "3",MARK 3
sub11701-64040
main11701-64050-01i198508-198711
MARK "1",MARK 1
main11701-64050-02i198508-198711
MARK "2",MARK 2
main11701-64050-03i198508-198711
MARK "3",MARK 3
main11701-70012-01i198310-198507
NO.1,2,4,5 MARK"1",MARK 1
sub11701-63021
main11701-70012-02i198310-198507
NO.1,2,4,5 MARK"2",MARK 2
sub11701-63021
main11701-70012-03i198310-198507
NO.1,2,4,5 MARK"3",MARK 3
sub11701-63021
13011RING SET, PISTON
main13011-16011i198608-198711
STD
main13011-16031i198310-198505
STD
sub13011-16032
main13011-16032i198505-198711
STD,STD
main13011-63030i198310-198707
STD,STD
sub13011-63031
main13011-63031i198707-198711
STD,STD
main13011-64110i198310-198508
STD
sub13011-64150
main13011-64170i198508-198711
STD,STD
main13011-74040i198508-198709
STD,STD
sub13011-74041
main13011-74041i198709-198711
STD
main13013-16011i198608-198711
O/S 0.50
main13013-16031i198310-198505
O/S 0.50
sub13013-16032
main13013-16032i198505-198711
O/S 0.50,O/S 0.50
main13013-63030i198310-198707
O/S 0.50,O/S 0.50
sub13013-63031
main13013-63031i198707-198711
O/S 0.50,O/S 0.50
main13013-64110i198310-198508
O/S 0.50
sub13013-64150
main13013-64170i198508-198711
O/S 0.50,O/S 0.50
main13013-74040i198508-198709
O/S 0.50,O/S 0.50
sub13013-74041
main13013-74041i198709-198711
O/S 0.50
main13014-63030i198310-198707
O/S 0.75,O/S 0.75
sub13014-63031
main13014-63031i198707-198711
O/S 0.75,O/S 0.75
main13014-74040i198508-198709
O/S 0.75,O/S 0.75
sub13014-74041
main13015-63030i198310-198707
O/S 1.00,O/S 1.00
sub13015-63031
main13015-63031i198707-198711
O/S 1.00,O/S 1.00
main13015-74040i198508-198709
O/S 1.00,O/S 1.00
sub13015-74041
main13015-74041i198709-198711
O/S 1.00
main13041-74041i198709-198711
O/S 0.75
13041BEARING, CONNECTING ROD
main13041-15030-01i198310-198711
MARK"1",MARK 1
sub13041-15031
main13041-15030-02i198310-198711
MARK"2",MARK 2
sub13041-15031
main13041-15030-03i198310-198711
MARK"3",MARK 3
sub13041-15031
main13041-63020-01i198310-198711
MARK"1",MARK 1
main13041-63020-02i198310-198711
MARK"2",MARK 2
main13041-63020-03i198310-198711
MARK"3",MARK 3
main13041-64030-01i198310-198502
MARK"1",MARK 1
sub13041-64031
main13041-64030-02i198310-198502
MARK"2",MARK 2
sub13041-64031
main13041-64030-03i198310-198502
MARK"3",MARK 3
sub13041-64031
main13041-64031-01i198502-198508
MARK"1",MARK 1
sub13041-64041
main13041-64031-02i198502-198508
MARK"2",MARK 2
sub13041-64041
main13041-64031-03i198502-198508
MARK"3",MARK 3
sub13041-64041
main13041-64050-01i198508-198711
MARK"1",MARK 1
main13041-64050-02i198508-198711
MARK"2",MARK 2
main13041-64050-03i198508-198711
MARK"3",MARK 3
13101PISTON SUB-ASSY, W/PIN
main13101-16010i198310-198711
STD,STD
main13101-16050i198508-198711
STD,STD
main13101-16050i198508-198711
STD,STD,SINGAPORE SPEC
main13101-63010i198508-198607
STD,NEW ZEALAND SPEC
main13101-63010i198310-198607
STD
main13101-63011i198607-198711
STD,STD,NEW ZEALAND SPEC
main13101-63011i198607-198711
STD,STD
main13101-63020i198310-198607
STD
main13101-63021i198607-198711
STD
main13101-64030i198310-198508
STD
main13101-64080i198508-198701
STD,STD
main13101-64090i198508-198711
STD,STD
main13101-74020i198508-198607
STD
main13101-74021i198607-198711
STD
main13103-16010i198310-198711
O/S 0.50,O/S 0.50
main13103-16050i198508-198711
O/S 0.50,O/S 0.50
main13103-16050i198508-198711
O/S 0.50,O/S 0.50,SINGAPORE SPEC
main13103-63010i198508-198607
O/S 0.50,NEW ZEALAND SPEC
main13103-63010i198310-198607
O/S 0.50
main13103-63011i198607-198711
O/S 0.50,O/S 0.50,NEW ZEALAND SPEC
main13103-63011i198607-198711
O/S 0.50,O/S 0.50
main13103-63020i198310-198607
O/S 0.50
main13103-63021i198607-198711
O/S 0.50
main13103-64030i198310-198508
O/S 0.50
main13103-64080i198508-198701
O/S 0.50,O/S 0.50
main13103-64090i198508-198711
O/S 0.50,O/S 0.50
main13103-74020i198508-198607
O/S 0.50
main13103-74021i198607-198711
O/S 0.50
main13104-63010i198310-198607
O/S 0.75
main13104-63010i198508-198607
O/S 0.75,NEW ZEALAND SPEC
main13104-63011i198607-198711
O/S 0.75,O/S 0.75
main13104-63011i198607-198711
O/S 0.75,O/S 0.75,NEW ZEALAND SPEC
main13104-63020i198310-198607
O/S 0.75
main13104-63021i198607-198711
O/S 0.75
main13104-74020i198508-198607
O/S 0.75
main13104-74021i198607-198711
O/S 0.75
main13105-63010i198508-198607
O/S 1.00,NEW ZEALAND SPEC
main13105-63010i198310-198607
O/S 1.00
main13105-63011i198607-198711
O/S 1.00,O/S 1.00,NEW ZEALAND SPEC
main13105-63011i198607-198711
O/S 1.00,O/S 1.00
main13105-63020i198310-198607
O/S 1.00
main13105-63021i198607-198711
O/S 1.00
main13105-74020i198508-198607
O/S 1.00
main13105-74021i198607-198711
O/S 1.00
13201ROD SUB-ASSY, CONNECTING
main13201-19055i198310-198711
sub13201-19056
main13201-69015i198310-198405
sub13201-69055
main13201-69035i198310-198508
sub13201-69036
main13201-69036i198508-198508
sub13201-69037
main13201-69055i198405-198711
main13201-69065i198508-198711
sub13201-69135
13202BEARING SET, CONNECTING ROD
main13204-15030i198310-198711
U/S 0.25,U/S 0.25
sub13204-15031
main13204-63020i198310-198711
U/S 0.25,U/S 0.25
main13204-64031i198310-198508
U/S 0.25,U/S 0.25
sub13204-64041
main13204-64050i198508-198711
U/S 0.25,U/S 0.25
13265BOLT, CONNECTING ROD
main13265-15020i198310-198708
sub13265-16010
sub90170-09003
main13265-16010i198708-198711
main13265-49015i198310-198711
main13265-63010i198310-198711
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
main90170-09001i198310-198708
main90170-09003i198708-198711
main90179-09001i198310-198711
main90179-10042i198310-198711
13405FLYWHEEL SUB-ASSY
main13405-15030i198708-198711
main13405-19075i198310-198708
sub13405-15030
main13405-69056i198310-198711
sub13405-63020
main13405-69065i198310-198711
sub13405-64020
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-08054i198310-198711
L=23,OD=8
main90250-08120i198310-198711
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
main90105-10042i198310-198711
main90105-10071i198310-198711
13411CRANKSHAFT
main13411-15030i198310-198701
sub13411-15040
main13411-15040i198701-198711
sub13411-15050
main13411-63010i198310-198711
main13411-64010i198310-198412
sub13411-64011
main13411-64011i198412-198702
sub13411-64900
13453GEAR, FLYWHEEL RING
main13453-10010i198310-198711
main13453-20010i198310-198711
main13453-64011i198310-198711
13471PULLEY, CRANKSHAFT
main13408-63020i198310-198711
main13408-64031i198310-198711
main13470-15020i198310-198711
sub13470-15010
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90105-12012i198310-198601
main90105-14011i198310-198506
main90119-12101i198601-198711
main90119-14015i198506-198711
main91511-61435i198310-198711
sub90105-14089
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
main90280-05010i198310-198609
main95161-10519i198310-198711
main95161-20622i198310-198711
sub95161-30622
13521PPULLEY, CRANKSHAFT TIMING
main13521-15010i198310-198711
main13521-63010i198310-198711
main13521-64010i198310-198711
sub13521-64011
13566AGUIDE, TIMING BELT
main13566-15010i198310-198711
main13566-64010i198310-198711
sub13566-64011
main13567-63010i198310-198711

20 parts on this diagram · 3 diagrams in section
