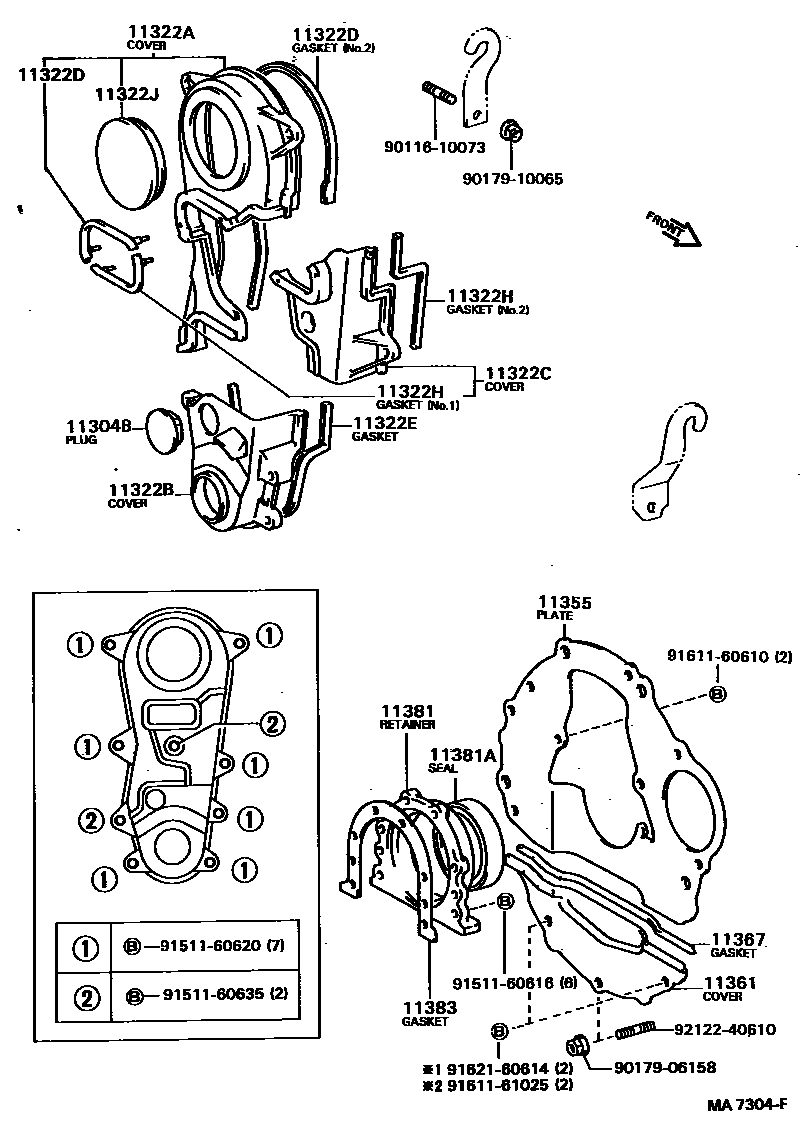

TIMING GEAR COVER & REAR END PLATE
11304COVER, TIMING CHAIN OR BELT, NO.2
11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
OD=64
OD=34
11322BCOVER, TIMING BELT, NO.2
11322DGASKET, TIMING BELT COVER, NO.1
NO.2
NO.1
11322EGASKET, TIMING BELT COVER, NO.2
11322HGASKET, TIMING BELT COVER, NO.3
NO.2
NO.1
11322JRETAINER(FOR TIMING BELT COVER)
sub90950-01497
11367GASKET, FLYWHEEL HOUSING UNDER
9011610073
main90116-10073
9017906158
main90179-06158
9017910065
main90179-10065
9151160616
main91511-60616
9151160620
main91511-60620
9151160635
main91511-60635
9161160610
main91611-60610
9161161025
main91611-61025
9162160614
main91621-60614
9212240610
main92122-40610
25 parts on this diagram · 3 diagrams in section
