AIR BAG

89170ACOMPUTER ASSY, AIRBAG

mainSU00310073iZN8..RHD..C202311

DESTINATION CODE=K2

mainSU00310073iZN8..RHD..C202311

DESTINATION CODE=KV

mainSU00310073iZN8..RHD..C202311

DESTINATION CODE=KY

mainSU00310073iZN8..RHD..C202311

DESTINATION CODE=KC

mainSU00310073iZN8..EUR..B202210-202310

mainSU00310074iZN8..CHI..B202206-202310

mainSU00311255iZN8..GRA202408

DESTINATION CODE=KA

89173ASENSOR, AIRBAG, FRONT RH

mainSU00308983iZN8..B202203-202209

subSU003-11257¥5,300

mainSU00311257iZN8..B202209-202310

89174ASENSOR, AIRBAG, FRONT LH

mainSU00308983iZN8..B202203-202209

subSU003-11257¥5,300

mainSU00311257iZN8..D202209-202310

89860SENSOR ASSY, SIDE AIRBAG, RH

mainSU00308580iZN8202203-202207

subSU003-11189¥14,400

mainSU00311189iZN8..D202207-202310

89860ASENSOR ASSY, SIDE AIRBAG, LH

mainSU00308580iZN8202203-202207

subSU003-11189¥14,400

mainSU00311189iZN8..D202207-202310

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

mainSU00308579iZN8202203-202310

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

mainSU00308579iZN8..C202203-202310

SU00300008

mainSU003-00008¥20

SU00300053

mainSU003-00053¥30

SU00302827

mainSU003-02827¥130

SU00302878

mainSU003-02878¥90

SU00311033

mainSU003-11033¥130

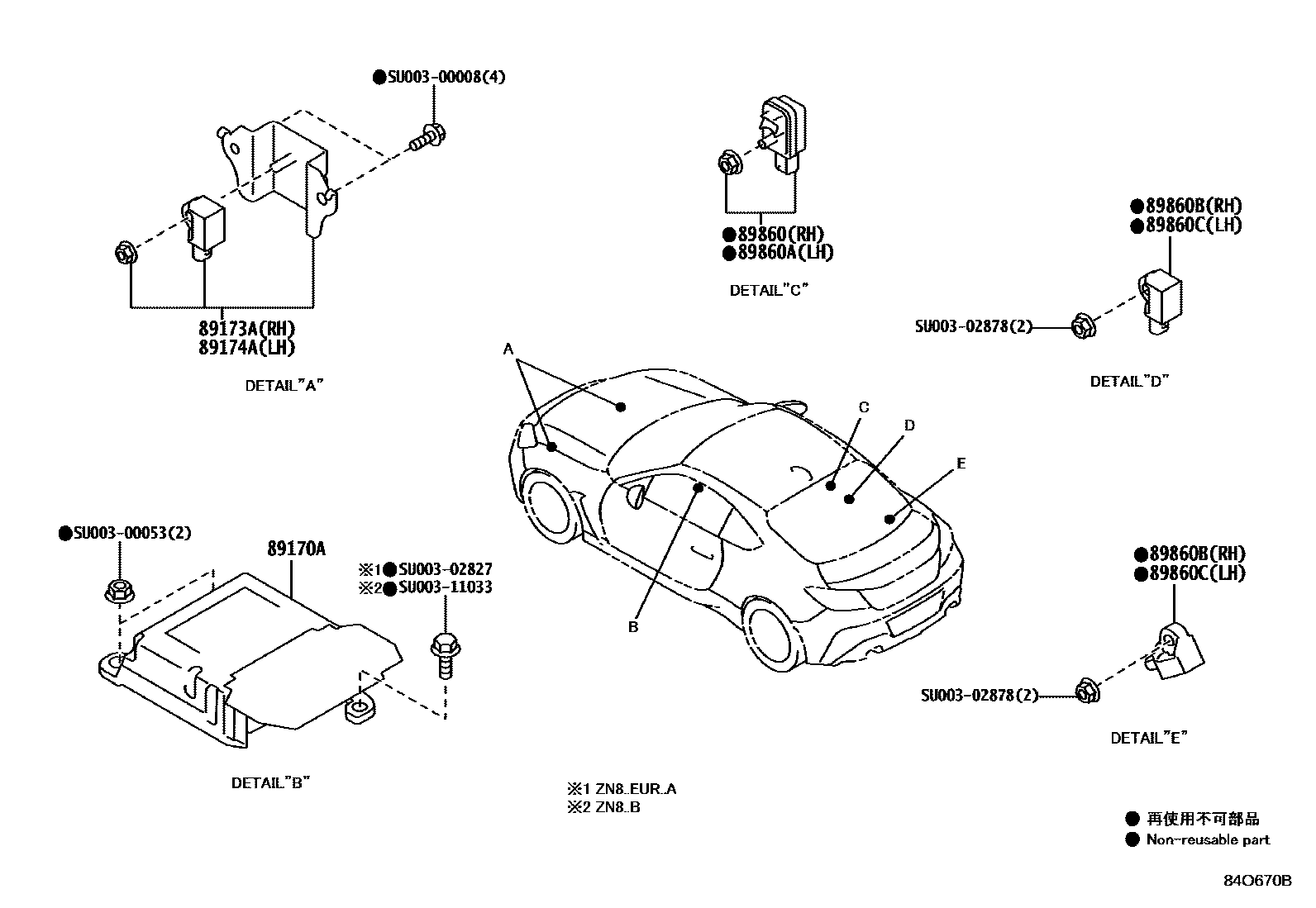

12 parts on this diagram · 1 diagram in section
