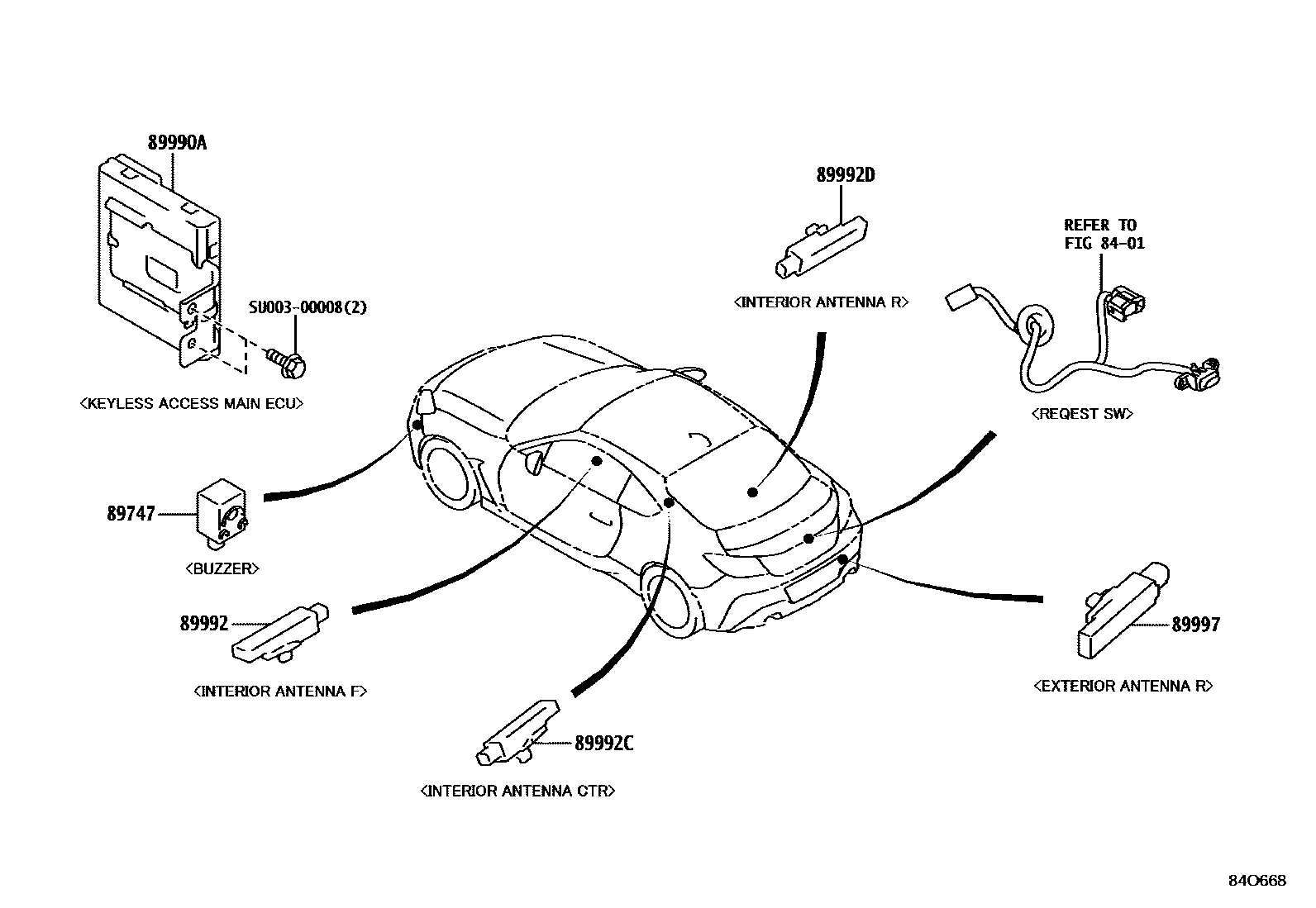

WIRELESS DOOR LOCK

0001 1 0002 1

8401

89747BUZZER, WIRELESS DOOR LOCK

mainSU00308526iZN8..B202203-202310

89990ACOMPUTER ASSY, SMART KEY

mainSU00310029iZN8..LHD..B202203-202310

subSU003-11878

mainSU00310308iZN8..RHD..B202207-202208

mainSU00310309iZN8..RHD..A202206-202207

DESTINATION CODE=KV

subSU003-11042

mainSU00311521iZN8..LHD..C202311

mainSU00312011iZN8..RHD..(BASE,HIGH)..D202408

DESTINATION CODE=KY

mainSU00312011iZN8..RHD..(BASE,HIGH)..D202408

DESTINATION CODE=K2

mainSU00312011iZN8..RHD..(BASE,HIGH)..D202408

DESTINATION CODE=KA

mainSU00312011iZN8..RHD..(BASE,HIGH)..D202408

DESTINATION CODE=KC

mainSU00312012iZN8..LHD..D202408

89992OSCILLATOR, INDOOR ELECTRICAL KEY

mainSU00310706iZN8202203-202403

subSU003-12047

mainSU00312047iZN8..C202404

89992COSCILLATOR, INDOOR ELECTRICAL KEY, NO.2

mainSU00310707iZN8202203-202403

subSU003-12048

mainSU00312048iZN8..C202404

89992DOSCILLATOR, INDOOR ELECTRICAL KEY, NO.3

mainSU00310707iZN8202203-202403

subSU003-12048

mainSU00312048iZN8..C202404

89997ANTENNA, ELECTRICAL KEY

mainSU00310708iZN8202203-202401

subSU003-12014

mainSU00312014iZN8..C202401

SU00300008

mainSU003-00008

8 parts on this diagram · 2 diagrams in section
