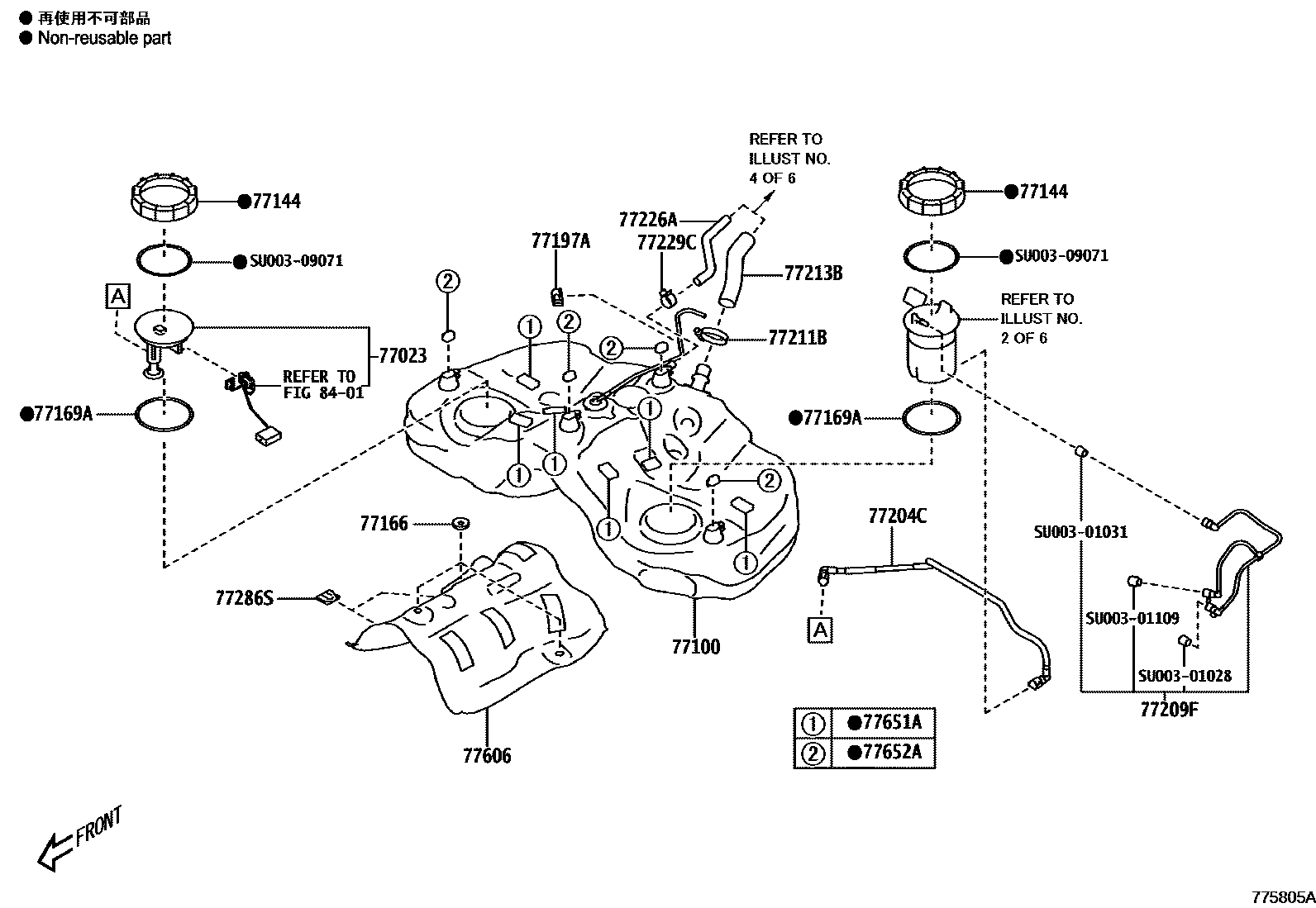

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL SUCTION TUBE(FUEL PUMP) 0004 1FUEL TANK BAND & PROTECTOR 0005 1FUEL TANK BAND & PROTECTOR 0006 1CHARCOAL CANISTER & FILLER PI0007 1CHARCOAL CANISTER & FILLER PI0008 1FUEL(BRAKE) PIPE 0009 1FUEL LID

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

mainSU00309073iZN8..D202203-202310

77100TANK ASSY, FUEL

mainSU00309062iZN8..EUR..B202203-202310

mainSU00309609iZN8..CHI..B202206-202310

77144RETAINER, FUEL PUMP GAUGE

mainSU00309068iZN8..B202203-202310

77166CUSHION, FUEL TANK PROTECTOR

mainSU00301042iZN8..D202203-202310

77169AGASKET, FUEL SUCTION TUBE SET

mainSU00309066iZN8..C202203-202310

mainSU00309610iZN8..CHI..B202206-202310

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

mainSU00309524iZN8..D202203-202310

77204CTUBE SUB-ASSY, FUEL TANK MAIN, NO.2

mainSU00309537iZN8202203-202310

77209FTUBE SUB-ASSY, FUEL TANK MAIN

mainSU00309534iZN8202203-202310

77211BCLAMP (FOR FUEL FILLER PIPE)

mainSU00308444iZN8..B202203-202310

77213BHOSE, FUEL TANK TO FILLER PIPE

mainSU00309538iZN8202203-202310

mainSU00310574iZN8..CHI..B202206-202310

77226ATUBE, FUEL TANK BREATHER, NO.6

mainSU00309539iZN8202203-202310

77229CCLAMP, BREATHER TUBE

mainSU00301024iZN8202203-202310

subSU003-01025¥160

77286SCUSHION, FUEL TANK PROTECTOR

mainSU00310559iZN8..D202203-202310

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

mainSU00309532iZN8..C202203-202310

77651ACUSHION, FUEL TANK, NO.1

mainSU00301047iZN8..D202203-202310

77652ACUSHION, FUEL TANK, NO.2

mainSU00309529iZN8..B202203-202310

8401

SU00301028

mainSU003-01028¥160

SU00301031

mainSU003-01031¥60

SU00301109

mainSU003-01109¥120

SU00309071

mainSU003-09071¥700

21 parts on this diagram · 9 diagrams in section
