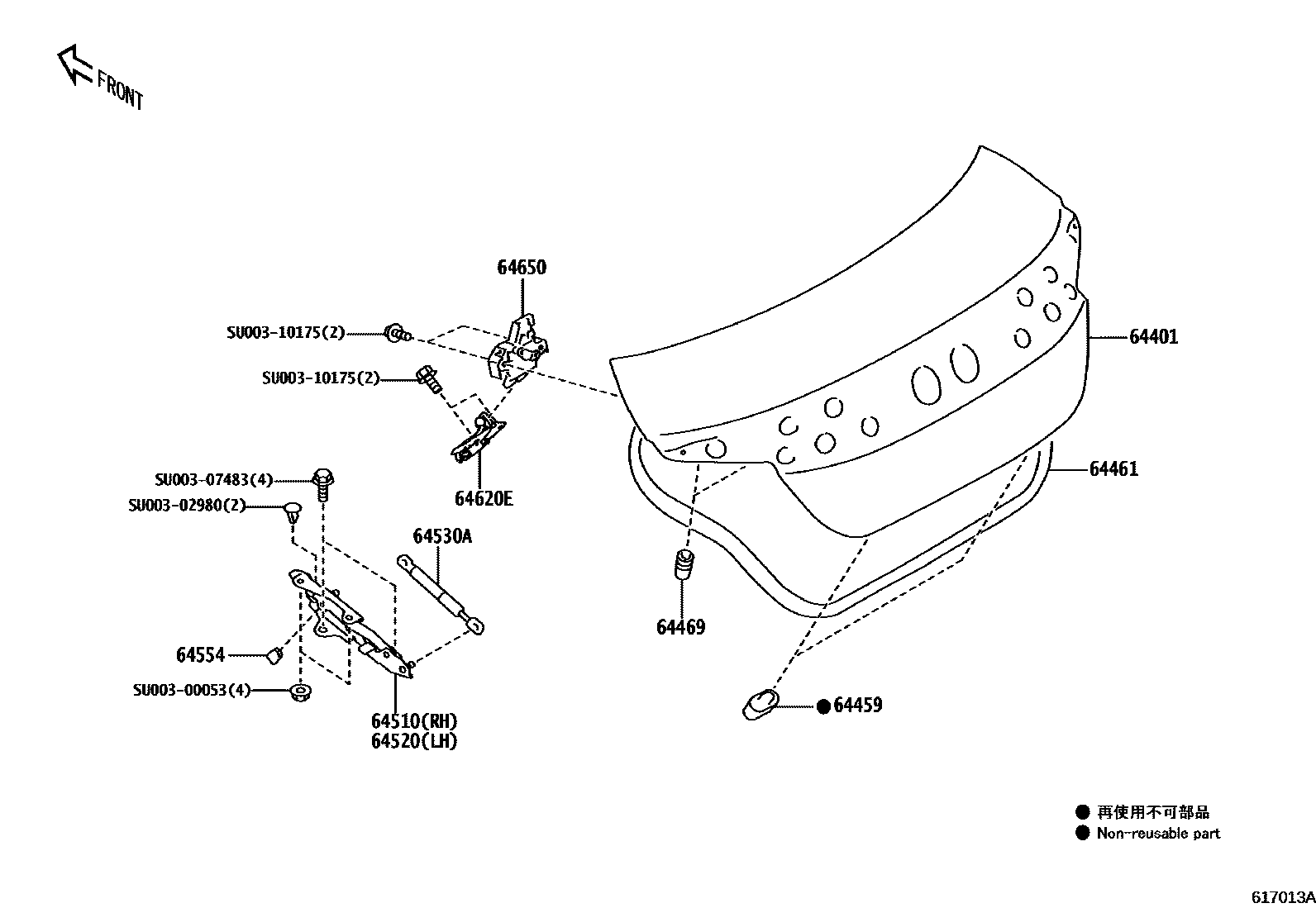

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

mainSU00310877iZN8202203-202310

64459CUSHION, LUGGAGE COMPARTMENT DOOR

mainSU00309192iZN8202203-202310

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

mainSU00309191iZN8202203-202310

64469CUSHION, LUGGAGE COMPARTMENT DOOR, NO.2

mainSU00309193iZN8202203-202409

subSU003-12261

mainSU00312261iZN8..C,D202409

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

mainSU00309187iZN8202203-202310

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

mainSU00309188iZN8202203-202310

64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR

mainSU00309189iZN8202203-202310

64554STOPPER, LUGGAGE DOOR BALANCER

mainSU00301471iZN8202203-202310

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

mainSU00309190iZN8202203-202310

64650CLOSER ASSY, LUGGAGE DOOR

mainSU00310326iZN8202203-202310

SU00300053

mainSU003-00053

SU00302980

mainSU003-02980

SU00307483

mainSU003-07483

SU00310175

mainSU003-10175

14 parts on this diagram · 1 diagram in section
