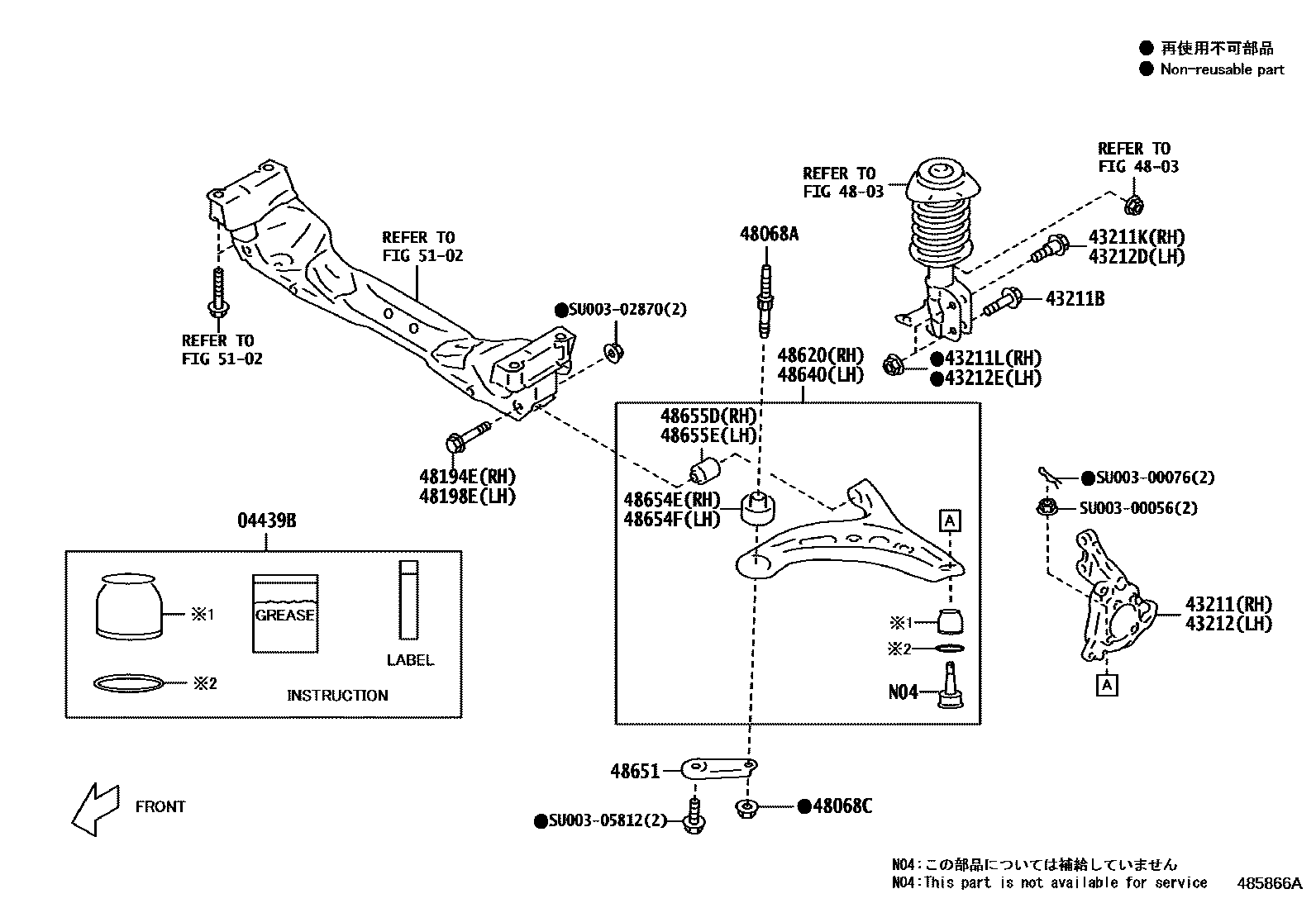

FRONT AXLE ARM & STEERING KNUCKLE

04439BCOVER KIT, FRONT SUSPENSION LOWER ARM BALL JOINT DUST

mainSU00311201iZN8202203-202310

43211KNUCKLE, STEERING, RH

mainSU00307497iZN8202203-202310

43211BBOLT (FOR ABSORBER SETTING)

mainSU00302818iZN8202203-202310

43211KBOLT (FOR STEERING KNUCKLE RH)

mainSU00302805iZN8202203-202310

43211LNUT (FOR STEERING KNUCKLE RH)

mainSU00302889iZN8202203-202310

43212KNUCKLE, STEERING, LH

mainSU00307498iZN8202203-202310

43212DBOLT (FOR STEERING KNUCKLE LH)

mainSU00302805iZN8202203-202310

43212ENUT (FOR STEERING KNUCKLE LH)

mainSU00302889iZN8202203-202310

4803

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

mainSU00307310iZN8202203-202310

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

mainSU00302871iZN8202203-202310

48194ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH

mainSU00300399iZN8202203-202310

48198ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH

mainSU00300399iZN8202203-202310

48620ARM ASSY, FRONT SUSPENSION, LOWER RH

mainSU00310055iZN8202203-202310

48640ARM ASSY, FRONT SUSPENSION LOWER, LH

mainSU00310056iZN8202203-202310

48651PLATE, LOWER ARM SUPPORT

mainSU00300359iZN8202203-202310

48654EBUSH, FRONT LOWER ARM, NO.1 RH

mainSU00300357iZN8202203-202310

48654FBUSH, FRONT LOWER ARM, NO.1 LH

mainSU00300357iZN8202203-202310

48655DBUSH, FRONT LOWER ARM, NO.2 RH

mainSU00300356iZN8202203-202310

48655EBUSH, FRONT LOWER ARM, NO.2 LH

mainSU00300356iZN8202203-202310

5102

SU00300056

mainSU003-00056¥60

SU00300076

mainSU003-00076¥60

SU00302870

mainSU003-02870¥190

SU00305812

mainSU003-05812¥300

25 parts on this diagram · 1 diagram in section
