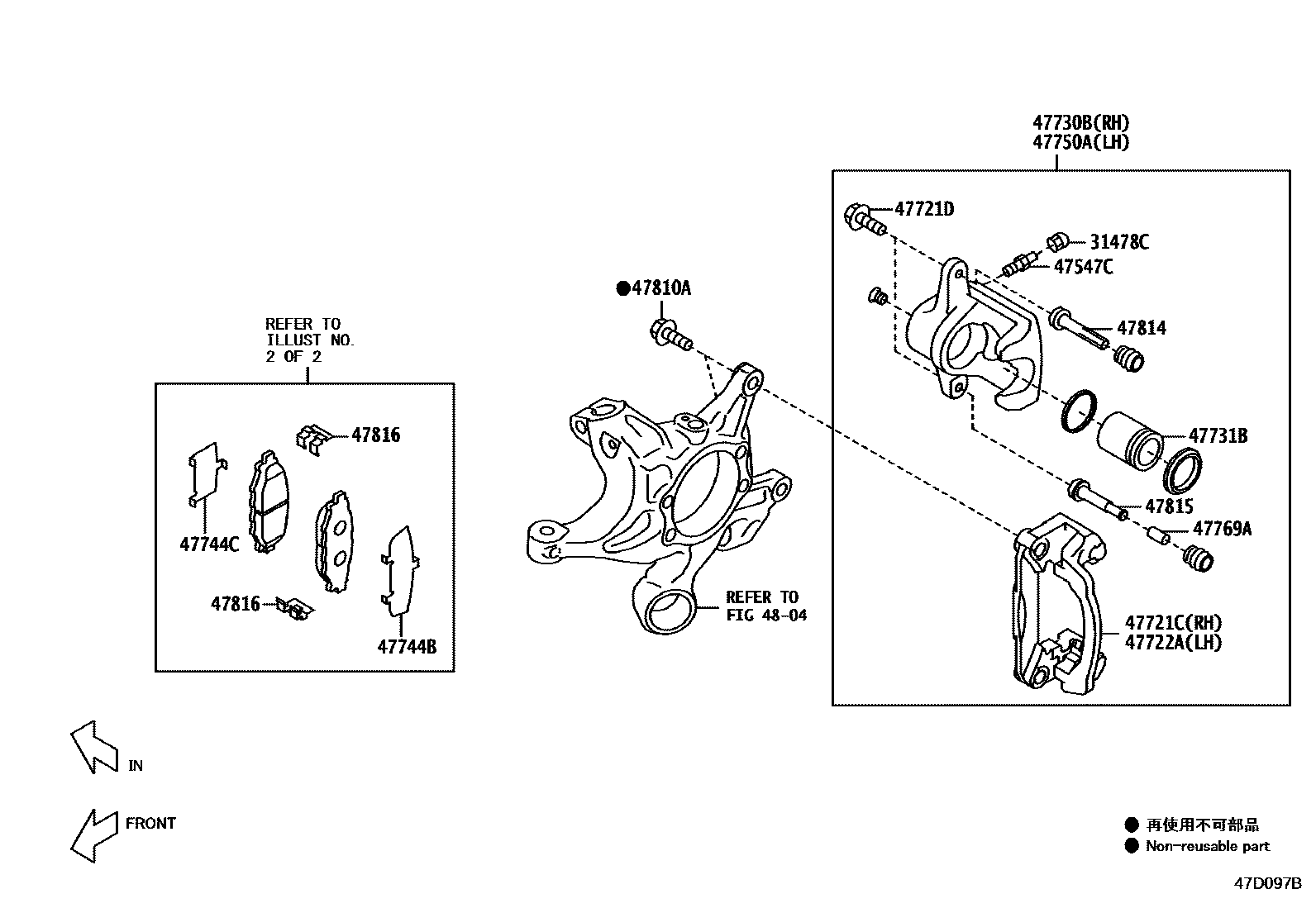

REAR DISC BRAKE CALIPER & DUST COVER
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
1POD TYPE
2POD TYPE
47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH
47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH
47730BCYLINDER ASSY, REAR DISC BRAKE, RH
subSU003-12034
OPTION CODE=FH
OPTION CODE=FF
OPTION CODE=XB
OPTION CODE=AX
OPTION CODE=XX
OPTION CODE=AD
OPTION CODE=XD
OPTION CODE=FB
OPTION CODE=FD
OPTION CODE=FX
OPTION CODE=AB
47731BPISTON, REAR DISC BRAKE
47744BSHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE)
OPTION CODE=XX
OPTION CODE=AB
OPTION CODE=XB
OPTION CODE=AX
OPTION CODE=AD
OPTION CODE=XD
OPTION CODE=FB
OPTION CODE=FD
OPTION CODE=FX
OPTION CODE=FF
OPTION CODE=FH
47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)
OPTION CODE=XD
OPTION CODE=FB
OPTION CODE=FD
OPTION CODE=FX
OPTION CODE=AB
OPTION CODE=XB
OPTION CODE=AX
OPTION CODE=XX
OPTION CODE=AD
OPTION CODE=FF
OPTION CODE=FH
47750ACYLINDER ASSY, DISC BRAKE, REAR LH
subSU003-12035
OPTION CODE=FH
OPTION CODE=FF
OPTION CODE=FD
OPTION CODE=AB
OPTION CODE=XB
OPTION CODE=AX
OPTION CODE=XX
OPTION CODE=AD
OPTION CODE=XD
OPTION CODE=FB
OPTION CODE=FX
47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47810ABOLT, HEXAGON(FOR REAR CALIPER)
OPTION CODE=FF
OPTION CODE=FH
OPTION CODE=FD
OPTION CODE=FX
OPTION CODE=AB
OPTION CODE=XB
OPTION CODE=AX
OPTION CODE=XX
OPTION CODE=AD
OPTION CODE=XD
OPTION CODE=FB
47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
1POD TYPE
2POD TYPE
47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47816PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
1POD TYPE
2POD TYPE
4804
16 parts on this diagram · 4 diagrams in section
