FRONT DISC BRAKE CALIPER & DUST COVER

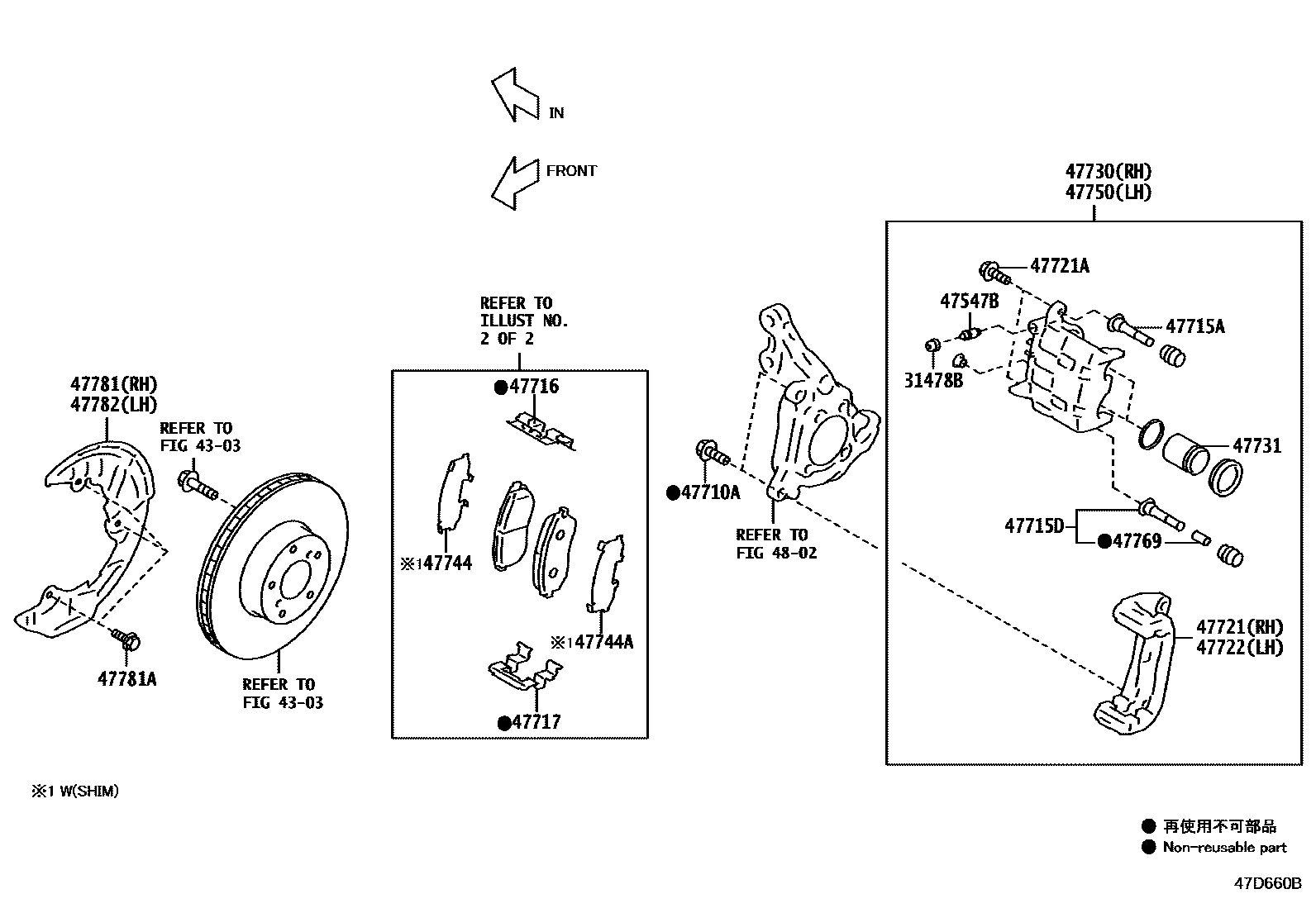

Parts diagram
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
mainSU00301627i202203-202310
subSU003-12086¥60
mainSU00301627i202311-202401
2POD TYPE
subSU003-12086¥60
mainSU00306296i202311
4POD TYPE
mainSU00312086i202401
2POD TYPE
4303
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
mainSU00300582i202203-202310
mainSU00300582i202311
2POD TYPE
mainSU00306295i202311
4POD TYPE
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
mainSU00306369i202311
M12X54
mainSU00307586i202311
M12-19,##
mainSU00307586i202203-202206
M12-19
47715APIN, FRONT DISC BRAKE CYLINDER SLIDE
mainSU00305830i202203-202310
mainSU00305830i202311
2POD TYPE
mainSU00306288i202311
4POD TYPE
47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
mainSU00305829i202203-202310
47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
mainSU00300578i202311
OPTION CODE=XD
mainSU00300578i202311
OPTION CODE=FB
mainSU00300578i202311
OPTION CODE=FD
mainSU00300578i202311
OPTION CODE=FX
mainSU00300578i202311
OPTION CODE=AB
mainSU00300578i202311
OPTION CODE=XB
mainSU00300578i202311
OPTION CODE=AX
mainSU00300578i202311
OPTION CODE=XX
mainSU00300578i202311
OPTION CODE=AD
mainSU00300578i202203-202310
mainSU00306290i202408
OPTION CODE=FF
mainSU00306290i202408
OPTION CODE=FH
47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
mainSU00300577i202203-202310
47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH
mainSU00300572i202203-202310
mainSU00300572i202311
OPTION CODE=AB
mainSU00300572i202311
OPTION CODE=XB
mainSU00300572i202311
OPTION CODE=AX
mainSU00300572i202311
OPTION CODE=XX
mainSU00300572i202311
OPTION CODE=AD
mainSU00300572i202311
OPTION CODE=XD
mainSU00300572i202311
OPTION CODE=FB
mainSU00300572i202311
OPTION CODE=FD
mainSU00300572i202311
OPTION CODE=FX
mainSU00306297i202408
OPTION CODE=FF
mainSU00306297i202408
OPTION CODE=FH
47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
mainSU00300575i202203-202310
47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH
mainSU00300573i202311
OPTION CODE=AX
mainSU00300573i202203-202310
mainSU00300573i202311
OPTION CODE=AB
mainSU00300573i202311
OPTION CODE=XB
mainSU00300573i202311
OPTION CODE=XX
mainSU00300573i202311
OPTION CODE=AD
mainSU00300573i202311
OPTION CODE=XD
mainSU00300573i202311
OPTION CODE=FB
mainSU00300573i202311
OPTION CODE=FD
mainSU00300573i202311
OPTION CODE=FX
mainSU00306297i202408
OPTION CODE=FH
mainSU00306297i202408
OPTION CODE=FF
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
mainSU00310486i202311-202401
OPTION CODE=AB
subSU003-12031¥32,700
mainSU00310486i202311-202401
OPTION CODE=XB
subSU003-12031¥32,700
mainSU00310486i202311-202401
OPTION CODE=AX
subSU003-12031¥32,700
mainSU00310486i202311-202401
OPTION CODE=XX
subSU003-12031¥32,700
mainSU00310486i202311-202401
OPTION CODE=AD
subSU003-12031¥32,700
mainSU00310486i202311-202401
OPTION CODE=XD
subSU003-12031¥32,700
mainSU00310486i202311-202401
OPTION CODE=FB
subSU003-12031¥32,700
mainSU00310486i202311-202401
OPTION CODE=FD
subSU003-12031¥32,700
mainSU00310486i202311-202401
OPTION CODE=FX
subSU003-12031¥32,700
mainSU00310486i202203-202310
subSU003-12031¥32,700
mainSU00311424i202408
OPTION CODE=FH
mainSU00311424i202408
OPTION CODE=FF
mainSU00312031i202401
OPTION CODE=AD
mainSU00312031i202401
OPTION CODE=XD
mainSU00312031i202401
OPTION CODE=FB
mainSU00312031i202401
OPTION CODE=FD
mainSU00312031i202401
OPTION CODE=FX
mainSU00312031i202401
OPTION CODE=AB
mainSU00312031i202401
OPTION CODE=XB
mainSU00312031i202401
OPTION CODE=AX
mainSU00312031i202401
OPTION CODE=XX
47731PISTON, FRONT DISC BRAKE
mainSU00300634i202203-202310
47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
mainSU00306293i202203-202310
47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)
mainSU00306294i202203-202310
47750CYLINDER ASSY, DISC BRAKE, LH
mainSU00310502i202203-202310
subSU003-12032¥32,700
mainSU00310502i202311-202401
OPTION CODE=AB
subSU003-12032¥32,700
mainSU00310502i202311-202401
OPTION CODE=XB
subSU003-12032¥32,700
mainSU00310502i202311-202401
OPTION CODE=AX
subSU003-12032¥32,700
mainSU00310502i202311-202401
OPTION CODE=XX
subSU003-12032¥32,700
mainSU00310502i202311-202401
OPTION CODE=AD
subSU003-12032¥32,700
mainSU00310502i202311-202401
OPTION CODE=XD
subSU003-12032¥32,700
mainSU00310502i202311-202401
OPTION CODE=FB
subSU003-12032¥32,700
mainSU00310502i202311-202401
OPTION CODE=FD
subSU003-12032¥32,700
mainSU00310502i202311-202401
OPTION CODE=FX
subSU003-12032¥32,700
mainSU00311425i202408
OPTION CODE=FH
mainSU00311425i202408
OPTION CODE=FF
mainSU00312032i202401
OPTION CODE=FD
mainSU00312032i202401
OPTION CODE=FX
mainSU00312032i202401
OPTION CODE=AB
mainSU00312032i202401
OPTION CODE=XB
mainSU00312032i202401
OPTION CODE=AX
mainSU00312032i202401
OPTION CODE=XX
mainSU00312032i202401
OPTION CODE=AD
mainSU00312032i202401
OPTION CODE=XD
mainSU00312032i202401
OPTION CODE=FB
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
mainSU00300576i202203-202310
47781COVER, DISC BRAKE DUST, FRONT RH
mainSU00300583i202311
OPTION CODE=AD
mainSU00300583i202203-202310
mainSU00300583i202311
OPTION CODE=AB
mainSU00300583i202311
OPTION CODE=XB
mainSU00300583i202311
OPTION CODE=AX
mainSU00300583i202311
OPTION CODE=XX
mainSU00300583i202311
OPTION CODE=XD
mainSU00300583i202311
OPTION CODE=FB
mainSU00300583i202311
OPTION CODE=FD
mainSU00300583i202311
OPTION CODE=FX
mainSU00311422i202408
OPTION CODE=FF
mainSU00311422i202408
OPTION CODE=FH
47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
mainSU00302783i202203-202310
47782COVER, DISC BRAKE DUST, FRONT LH
mainSU00300584i202203-202310
mainSU00300584i202311
OPTION CODE=AB
mainSU00300584i202311
OPTION CODE=XB
mainSU00300584i202311
OPTION CODE=AX
mainSU00300584i202311
OPTION CODE=XX
mainSU00300584i202311
OPTION CODE=AD
mainSU00300584i202311
OPTION CODE=XD
mainSU00300584i202311
OPTION CODE=FB
mainSU00300584i202311
OPTION CODE=FD
mainSU00300584i202311
OPTION CODE=FX
mainSU00311423i202408
OPTION CODE=FF
mainSU00311423i202408
OPTION CODE=FH
4802

21 parts on this diagram · 4 diagrams in section
