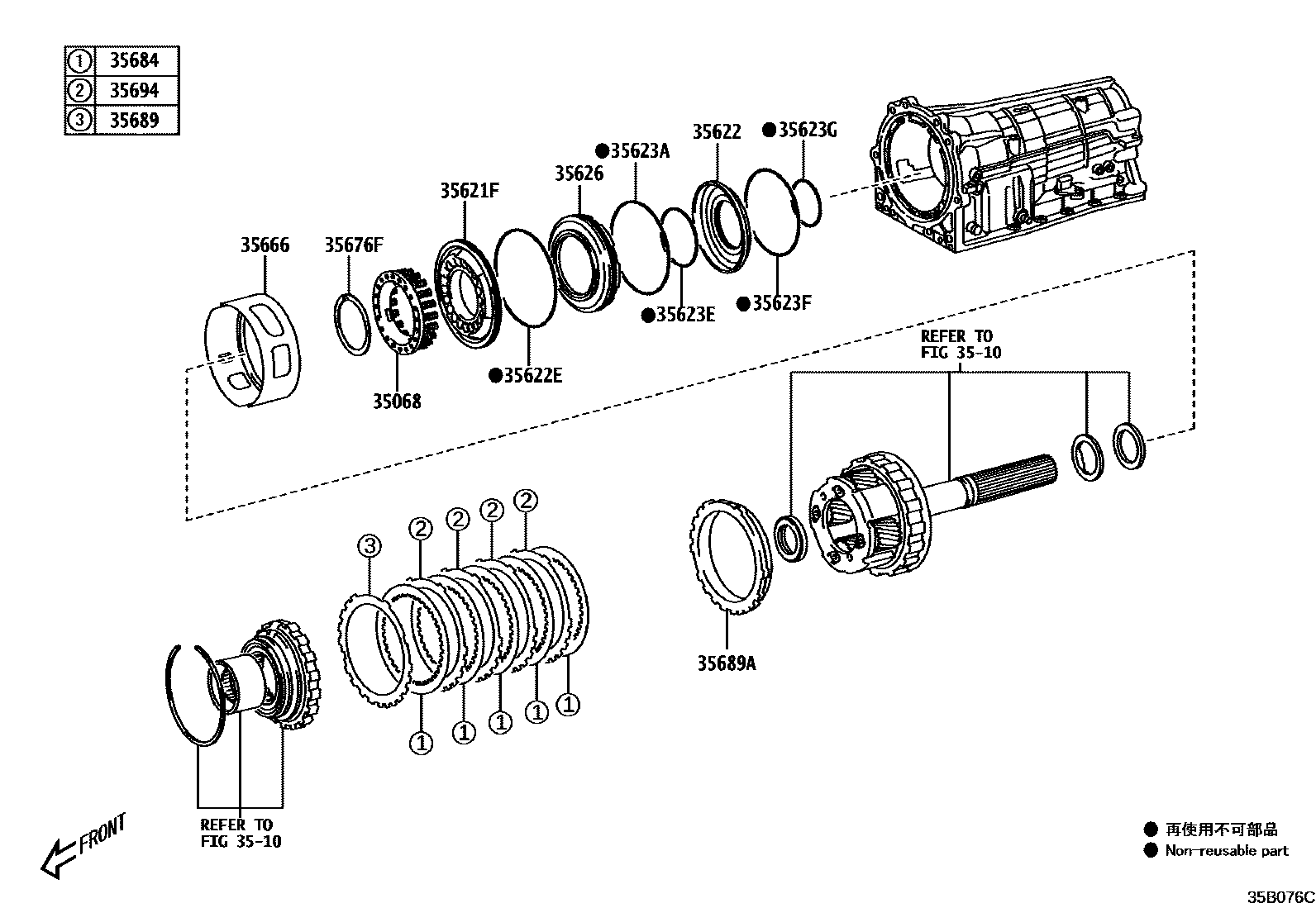

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

mainSU00303662iZN8..6FC..B202206-202310

3510

35621FPISTON, BRAKE, NO.1

mainSU00303707iZN8..6FC202203-202206

35622PISTON, BRAKE, NO.2

mainSU00303709iZN8..6FC202203-202206

35622ERING, O (FOR BRAKE PISTON NO.2)

mainSU00303608iZN8..6FC202203-202206

35623ARING, O (FOR BRAKE PISTON NO.3 )

mainSU00303606iZN8..6FC202203-202206

35623ERING, O, NO.1 (FOR BRAKE PISTON)

mainSU00303602iZN8..6FC..B202206-202310

35623FRING, O, NO.2 (FOR BRAKE PISTON)

mainSU00303603iZN8..6FC..B202206-202310

35623GRING, O, NO.3 (FOR BRAKE PISTON)

mainSU00303601iZN8..6FC..C202311

35626SLEEVE, BRAKE REACTION

mainSU00303708iZN8..6FC..D202408

35666TUBE, BRAKE APPLY

mainSU00303740iZN8..6FC202203-202206

35676FRING, SNAP (FOR TRANSMISSION CASE)

mainSU00303530iZN8..6FC..D202408

35684DISC, BRAKE, NO.4

mainSU00305188×5iZN8..6FC202203-202206

35689FLANGE, BRAKE, NO.4

mainSU00305642iZN8..6FC..CHI..B202206-202310

T=1.8 MARK 0,DESTINATION CODE=K2

mainSU00305643iZN8..LHD..6FC..D202408

T=1.97 MARK 1,DESTINATION CODE=KR

mainSU00305644iZN8..RHD..6FC..(BASE,HIGH)..D202408

T=2.11 MARK 3,DESTINATION CODE=K2

mainSU00305645iZN8..LHD..6FC..D202408

T=2.25 MARK 4,DESTINATION CODE=KF

mainSU00305646iZN8..6FC..CHI..B202206-202310

T=2.39 MARK 5,DESTINATION CODE=KR

mainSU00305647iZN8..6FC..CHI..B202206-202310

T=2.53 MARK 7

mainSU00305648iZN8..6FC..CHI..B202206-202310

T=2.67 MARK 8,DESTINATION CODE=KY

mainSU00305649iZN8..6FC..CHI..B202206-202310

T=2.81 MARK 10,DESTINATION CODE=KC

mainSU00305650iZN8..LHD..6FC..D202408

T=2.95 MARK 11,DESTINATION CODE=KV

mainSU00305651iZN8..LHD..6FC..D202408

T=3.09 MARK 12,DESTINATION CODE=KA

35689AFLANGE, BRAKE, NO.4

mainSU00303785iZN8..6FC202203-202206

35694PLATE, BRAKE, NO.4

mainSU00303796×4iZN8..6FC202203-202206

16 parts on this diagram · 1 diagram in section
