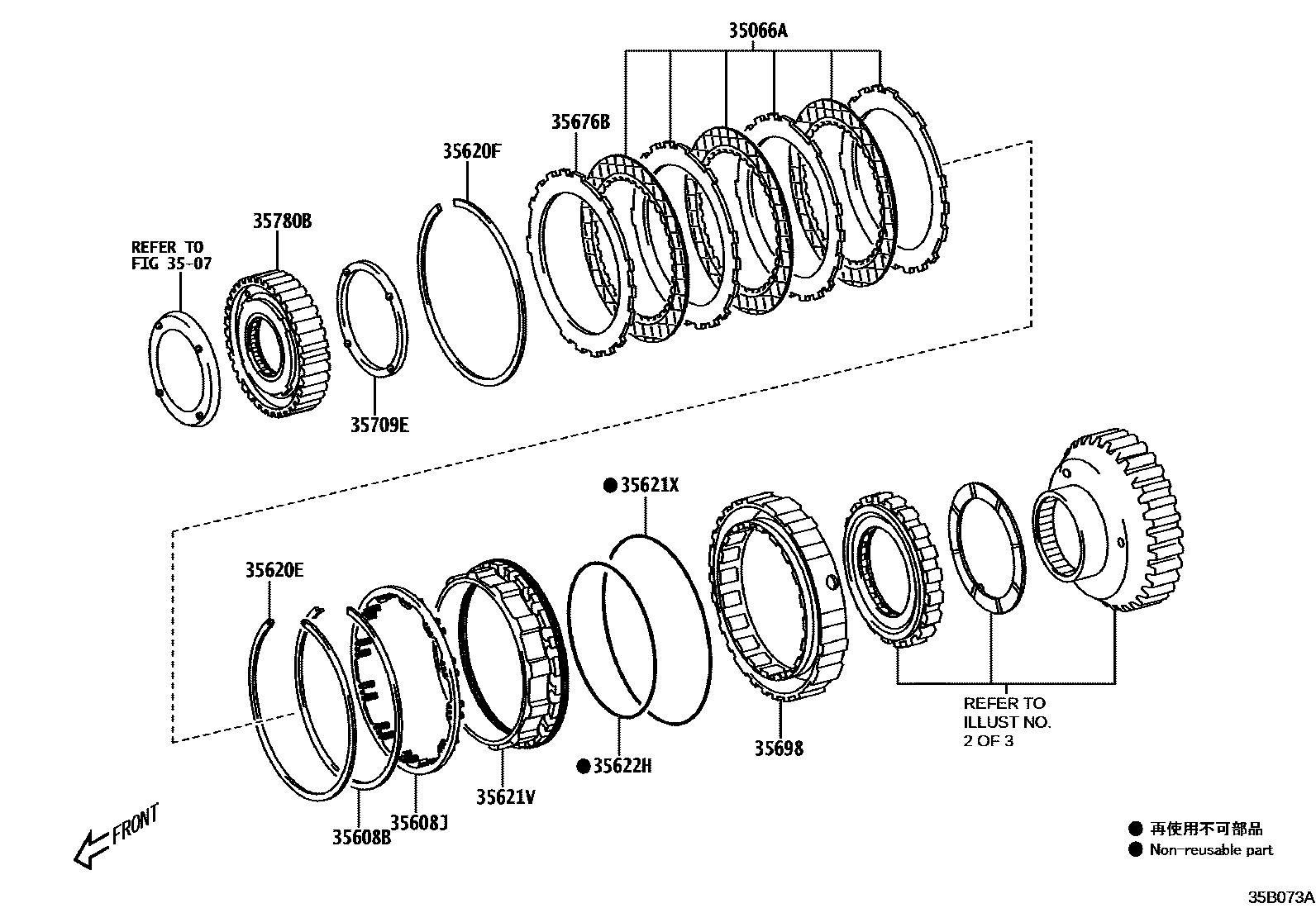

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1TX6A 0002 1TX6A 0003 1TX6A

35066ADISC SET, BRAKE, NO.1

mainSU00310713iZN8..6FC..B202203-202310

3507

35608BRING, HOLE SNAP (FOR BRAKE PISTON RETURN SPRING)

mainSU00303548iZN8..6FC..C202203-202310

35608JSPRING SUB-ASSY, BRAKE PISTON RETURN

mainSU00304149iZN8..6FC..C202203-202310

35620ERING, HOLE SNAP (FOR BRAKE PISTON RETURN SPRING)

mainSU00303542iZN8..6FC..C202203-202310

35620FRING, HOLE SNAP (FOR BRAKE NO.1 FLANGE)

mainSU00303543iZN8..6FC..C202203-202310

35621PISTON, BRAKE, NO.1

mainSU00303705iZN8..6FC202203-202310

35621VPISTON, BRAKE, NO.1

mainSU00310717iZN8..6FC..C202203-202310

35621XRING, O (FOR BRAKE PISTON NO.1)

mainSU00304142iZN8..6FC..C202203-202310

35622HRING, O (FOR BRAKE PISTON NO.2)

mainSU00303611iZN8..6FC202203

35676BFLANGE, BRAKE, NO.1

mainSU00303779iZN8..6FC202203-202310

35698CYLINDER, BRAKE, NO.1

mainSU00304151iZN8..6FC202203-202310

35709EWASHER (FOR CENTER SUPPORT)

mainSU00303493iZN8..6FC202203-202310

35780BCLUTCH ASSY, 1 WAY N0.2

mainSU00303814iZN8..6FC202203-202310

14 parts on this diagram · 3 diagrams in section
