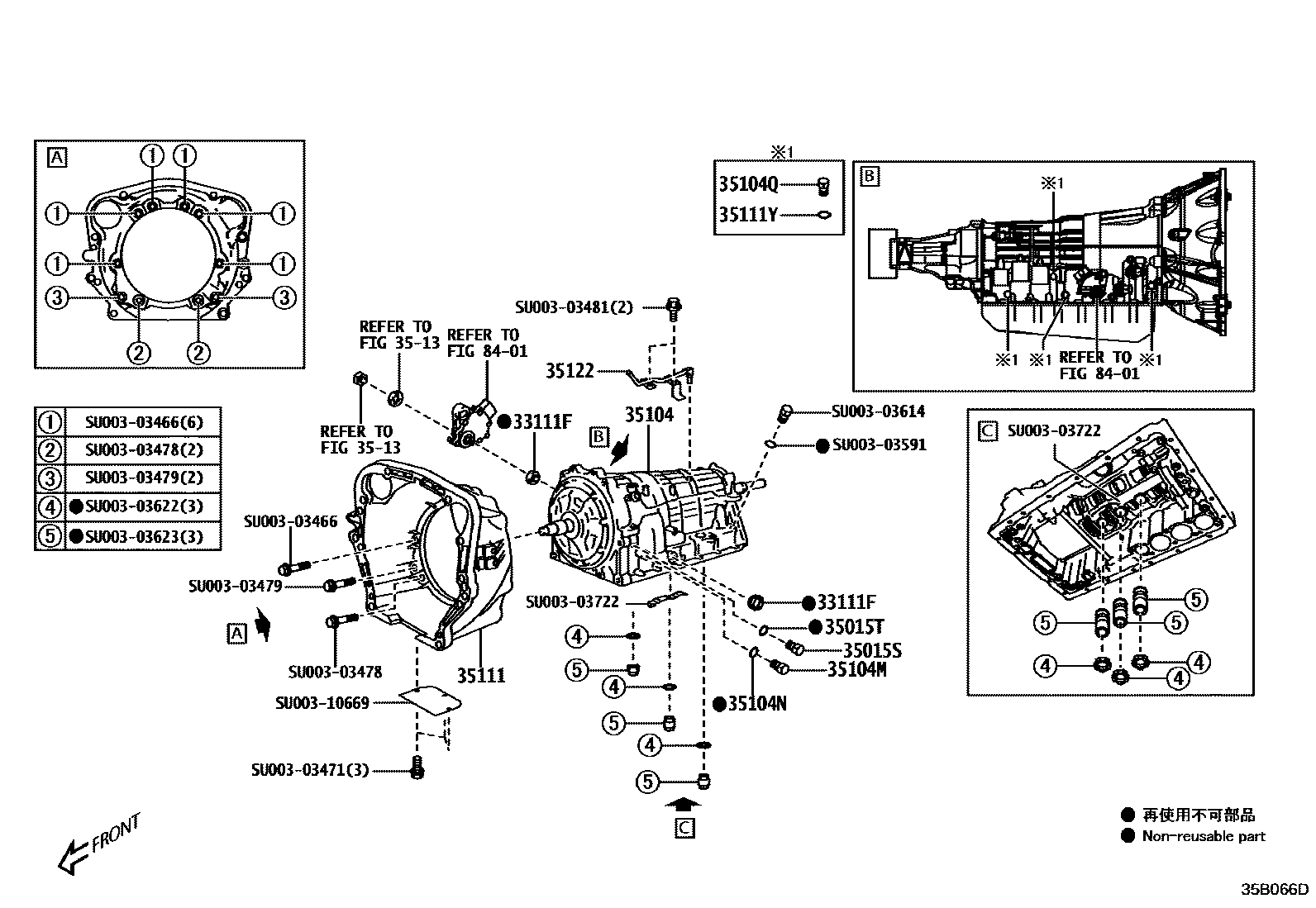

TRANSMISSION CASE & OIL PAN (ATM)

0001 1TX6A 0002 1TX6A 0003 1TX6A 0004 1TX6A

33111FSEAL, OIL(FOR TRANSMISSION CASE)

mainSU00303628iZN8..6FC202203-202310

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

mainSU00303612iZN8..6FC202203-202310

35015TRING, O(FOR TRANSMISSION CASE ADAPTER)

mainSU00303589iZN8..6FC202203-202310

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

mainSU00303666iZN8..6FC202203-202310

35104MPLUG, REFILL(ATM)

mainSU00303615iZN8..6FC202203-202310

35104NRING, O (FOR REFILL PLUG)

mainSU00303590iZN8..6FC202203-202310

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

mainSU00303612iZN8..6FC202203-202310

35111HOUSING, AUTOMATIC TRANSMISSION

mainSU00310668iZN8..6FC202203-202310

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

mainSU00303589iZN8..6FC202203-202310

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

mainSU00303850iZN8..6FC202203-202310

3513

8401

SU00303466

mainSU003-03466¥190

SU00303471

mainSU003-03471¥150

SU00303478

mainSU003-03478¥190

SU00303479

mainSU003-03479¥210

SU00303481

mainSU003-03481¥150

SU00303591

mainSU003-03591¥150

SU00303614

mainSU003-03614¥190

SU00303622

mainSU003-03622¥480

SU00303623

mainSU003-03623¥480

SU00303722

mainSU003-03722¥440

SU00310669

mainSU003-10669¥890

23 parts on this diagram · 4 diagrams in section
