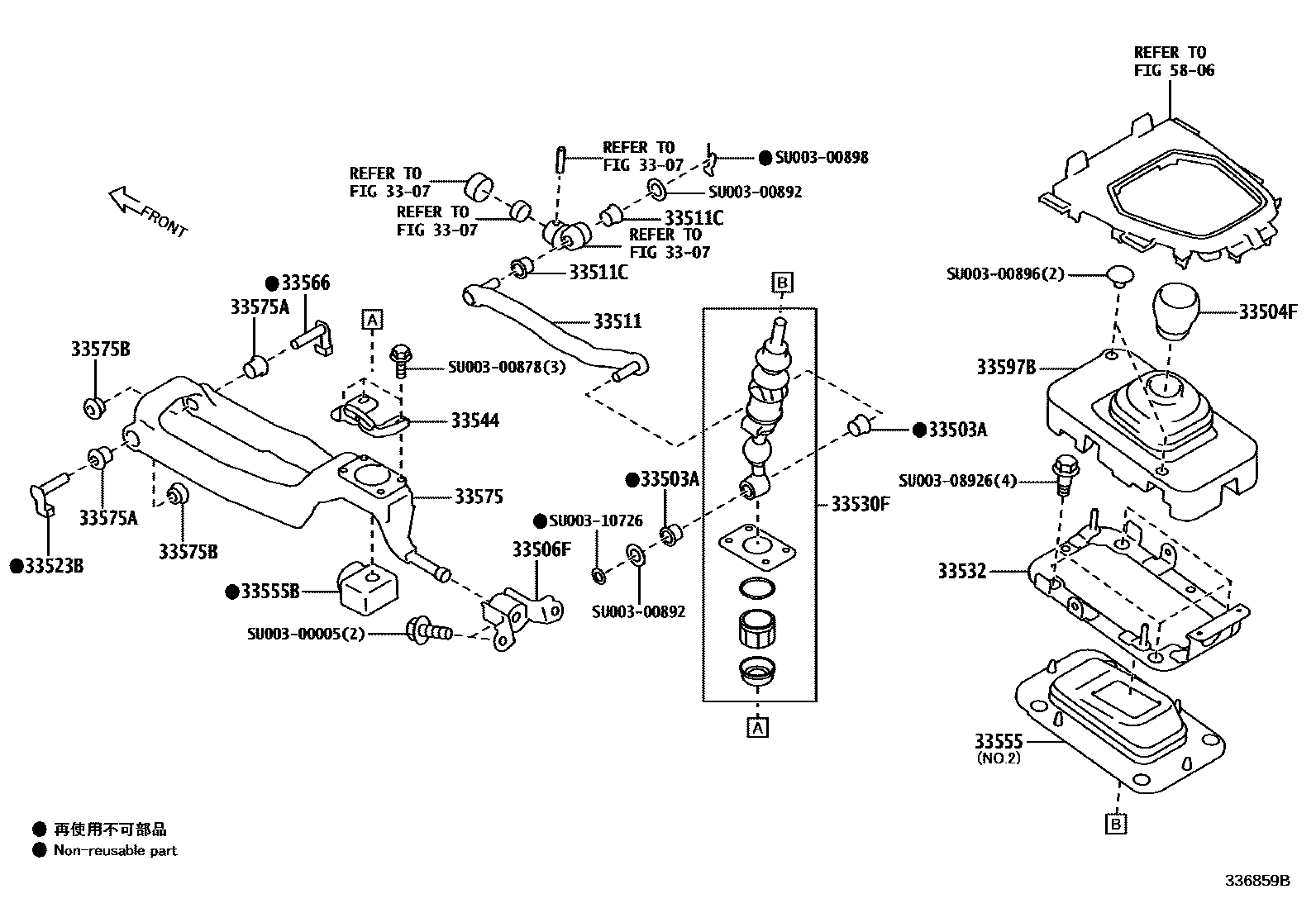

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

3307

33503ACOLLAR(FOR SHIFT LEVER)

mainSU00308874iZN8..6F202203-202310

33504FKNOB SUB-ASSY, SHIFT LEVER

mainSU00308873iZN8..6F202203-202310

mainSU00308880iZN8..6FC..D202203-202310

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

mainSU00300890iZN8..6F..B202203-202310

33511SHAFT, CONTROL (FOR FLOOR SHIFT)

mainSU00310725iZN8..6F202203-202405

subSU003-12027

mainSU00312027iZN8..6F..C202405

33511CCOLLAR (FOR CONTROL SHAFT)

mainSU00300886iZN8..6F..B202203-202310

33523BPIN, SHIFT LEVER (FOR FLOOR SHIFT)

mainSU00300900iZN8..6F202203-202310

mainSU00300925iZN8..6FC..C202203-202310

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

mainSU00308868iZN8..6F202203-202207

mainSU00311043iZN8..6F..B202208-202310

33532PLATE, DUST BOOT

mainSU00308875iZN8..6F202203-202310

33544INSERT, SHIFT LEVER, NO.1

mainSU00308869iZN8..6F202203-202310

33555BOOT, SHIFT LEVER

mainSU00308801iZN8..6F..HIGH..C202203-202310

TRIM3#,NO.1:REFER ILLUST.

mainSU00308802iZN8..RHD..6FC..HIGH..C202203-202310

TRIM3#

mainSU00308870iZN8..6F..C202203-202310

NO.2:REFER ILLUST.

mainSU00309374iZN8..6F202203-202310

TRIM2#,NO.1:REFER ILLUST.

mainSU00309375iZN8..RHD..6FC202203-202310

TRIM2#

mainSU00309698iZN8..LHD..6FC..C202203-202310

TRIM2#

mainSU00309699iZN8..LHD..6FC..HIGH202203-202310

TRIM3#

mainSU00311114iZN8..6F..ORA202206-202310

NO.1:REFER ILLUST.

mainSU00311115iZN8..RHD..6FC..ORA202206-202310

mainSU00311116iZN8..LHD..6FC..ORA202206-202310

mainSU00311886iZN8..6F..GRA202408

mainSU00311887iZN8..6FC..GRA202408

33555BBOOT, SHIFT & SELECT LEVER

mainSU00300881iZN8..6F..B202203-202310

33566PIN, SHIFT LEVER STOP

mainSU00300899iZN8..6F202203-202310

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

mainSU00300887iZN8..6F202203-202310

33575ABUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER)

mainSU00300888iZN8..6F202203-202310

33575BBUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER)

mainSU00300889iZN8..6F202203-202310

33597BSEAT, SHIFT LEVER, NO.1 (FOR FLOOR SHIFT)

mainSU00308871iZN8..6F202203-202310

5806

SU00300005

mainSU003-00005

SU00300878

mainSU003-00878

SU00300892

mainSU003-00892

SU00300896

mainSU003-00896

SU00300898

mainSU003-00898

SU00308926

mainSU003-08926

SU00310726

mainSU003-10726

25 parts on this diagram · 7 diagrams in section
