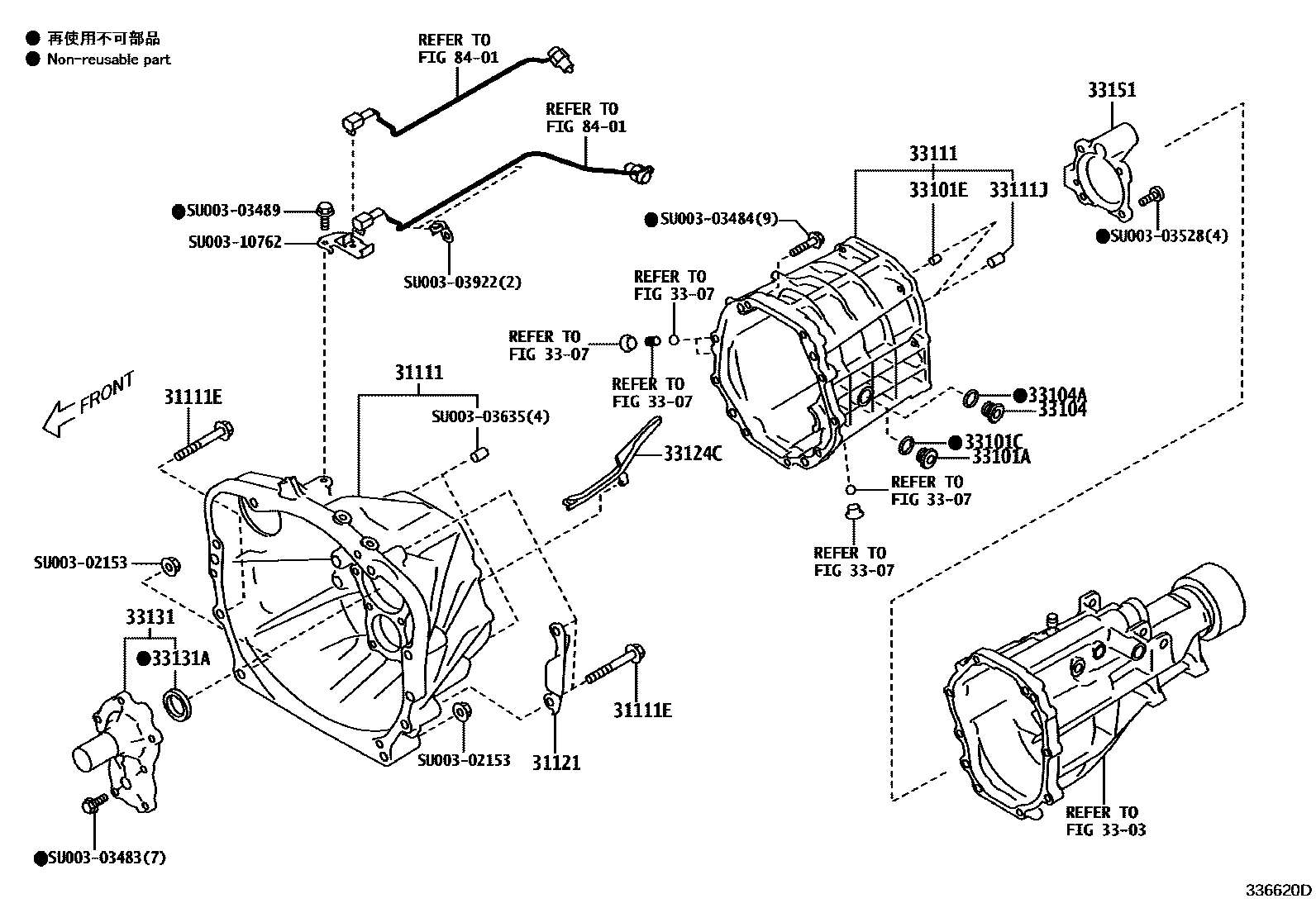

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1TL70 0002 1TL70

31111HOUSING, CLUTCH

mainSU00308028iZN8..6F202203-202310

31111EBOLT(FOR TRANSAXLE & ENGINE SETTING)

mainSU00302144iZN8..6F202203-202206

31121COVER, CLUTCH HOUSING, NO.1

mainSU00300818iZN8..6F202203-202310

3303

3307

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

mainSU00303617iZN8..6F202203-202310

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

mainSU00303626iZN8..6F202203-202310

33101EPIN, STRAIGHT(FOR TRANSMISSION CASE)

mainSU00303636iZN8..6F202203-202310

33104PLUG SUB-ASSY, DRAIN(MTM)

mainSU00303618iZN8..6F202203-202310

33104AGASKET, DRAIN PLUG(MTM)

mainSU00303626iZN8..6F202203-202310

33111CASE, MANUAL TRANSMISSION

mainSU00310765iZN8..6F202203-202310

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

mainSU00303635iZN8..6F202203-202310

33124CPIPE, OIL RECEIVER, NO.1(MTM)

mainSU00303860iZN8..6F202203-202310

33131RETAINER, BEARING, FRONT(MTM)

mainSU00303853iZN8..6F202203-202310

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

mainSU00303631iZN8..6F202203-202310

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

mainSU00303852iZN8..6F202203-202310

8401

SU00302153

mainSU003-02153¥80

SU00303483

mainSU003-03483¥740

SU00303484

mainSU003-03484¥870

SU00303489

mainSU003-03489¥630

SU00303528

mainSU003-03528¥480

SU00303635

mainSU003-03635¥580

SU00303922

mainSU003-03922¥580

SU00310762

mainSU003-10762¥610

25 parts on this diagram · 2 diagrams in section
