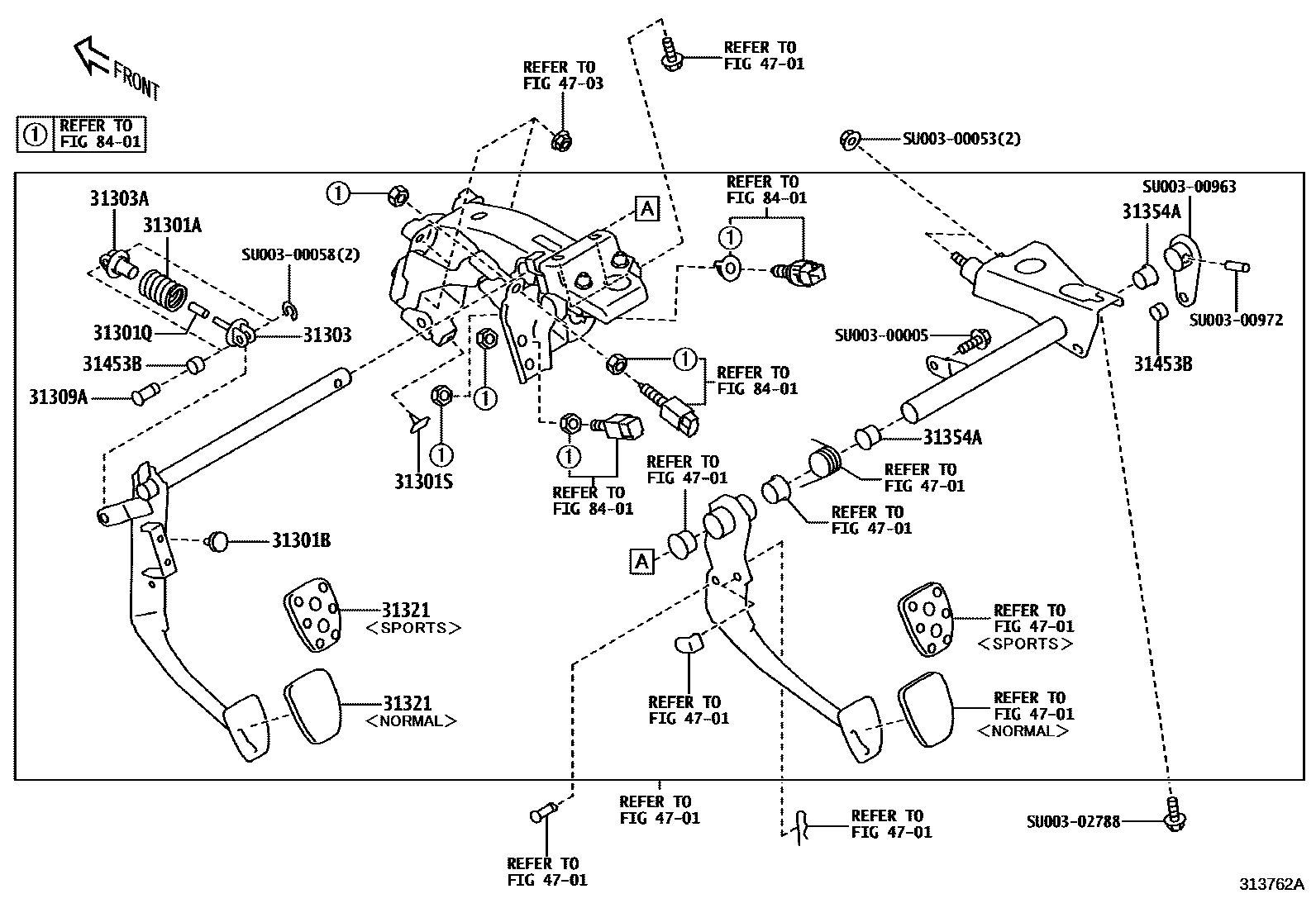

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

mainSU00309053iZN8..RHD..6F..B202203-202310

31301ASPRING(FOR CLUTCH PEDAL)

mainSU00310061iZN8..6F202203-202310

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

mainSU00300975iZN8..6F202203-202310

31301QBUSH(FOR CLUTCH PEDAL SPRING)

mainSU00300968iZN8..6F202203-202310

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

mainSU00307282iZN8..RHD..6F..C202203-202310

mainSU00307283iZN8..LHD..6F202203-202310

31303ROD SUB-ASSY, PEDAL RETURN SPRING

mainSU00300973iZN8..6F202203-202310

31303AROD SUB-ASSY, PEDAL RETURN SPRING

mainSU00300974iZN8..6F..D202203-202310

31309APIN, W/HOLE(FOR PEDAL RETURN SPRING CLEVIS)

mainSU00302937iZN8..6F..B202203-202310

31321PAD, CLUTCH PEDAL

mainSU00300961iZN8..6F..BASE..B202203-202310

OPTION CODE=XD

mainSU00300961iZN8..6F..BASE..B202206-202310

OPTION CODE=XF

mainSU00300961iZN8..6F..BASE202203-202310

OPTION CODE=XX

mainSU00300961iZN8..6F..BASE202203-202310

OPTION CODE=XB

mainSU00300971iZN8..6F..BASE..C202203-202310

OPTION CODE=AB

mainSU00300971iZN8..6F..BASE..C202203-202310

OPTION CODE=AX

mainSU00300971iZN8..6F..BASE..C202203-202310

OPTION CODE=AD

mainSU00300971iZN8..6F..BASE..C202311

OPTION CODE=FB

mainSU00300971iZN8..6F..BASE..C202311

OPTION CODE=FD

mainSU00300971iZN8..6F..BASE..C202311

OPTION CODE=FX

mainSU00300971iZN8..6F..BASE..C202311

OPTION CODE=FF

mainSU00300971iZN8..6F..BASE..C202311

OPTION CODE=FH

mainSU00300971iZN8..6F..(HIGH,ORA)..B202206-202310

OPTION CODE=AF

31354ABUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)

mainSU00300966iZN8..LHD..6F..B202203-202310

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

mainSU00300969iZN8..6F202203-202310

4701

4703

8401

SU00300005

mainSU003-00005

SU00300053

mainSU003-00053

SU00300058

mainSU003-00058

SU00300963

mainSU003-00963

SU00300972

mainSU003-00972

SU00302788

mainSU003-02788

20 parts on this diagram · 4 diagrams in section
