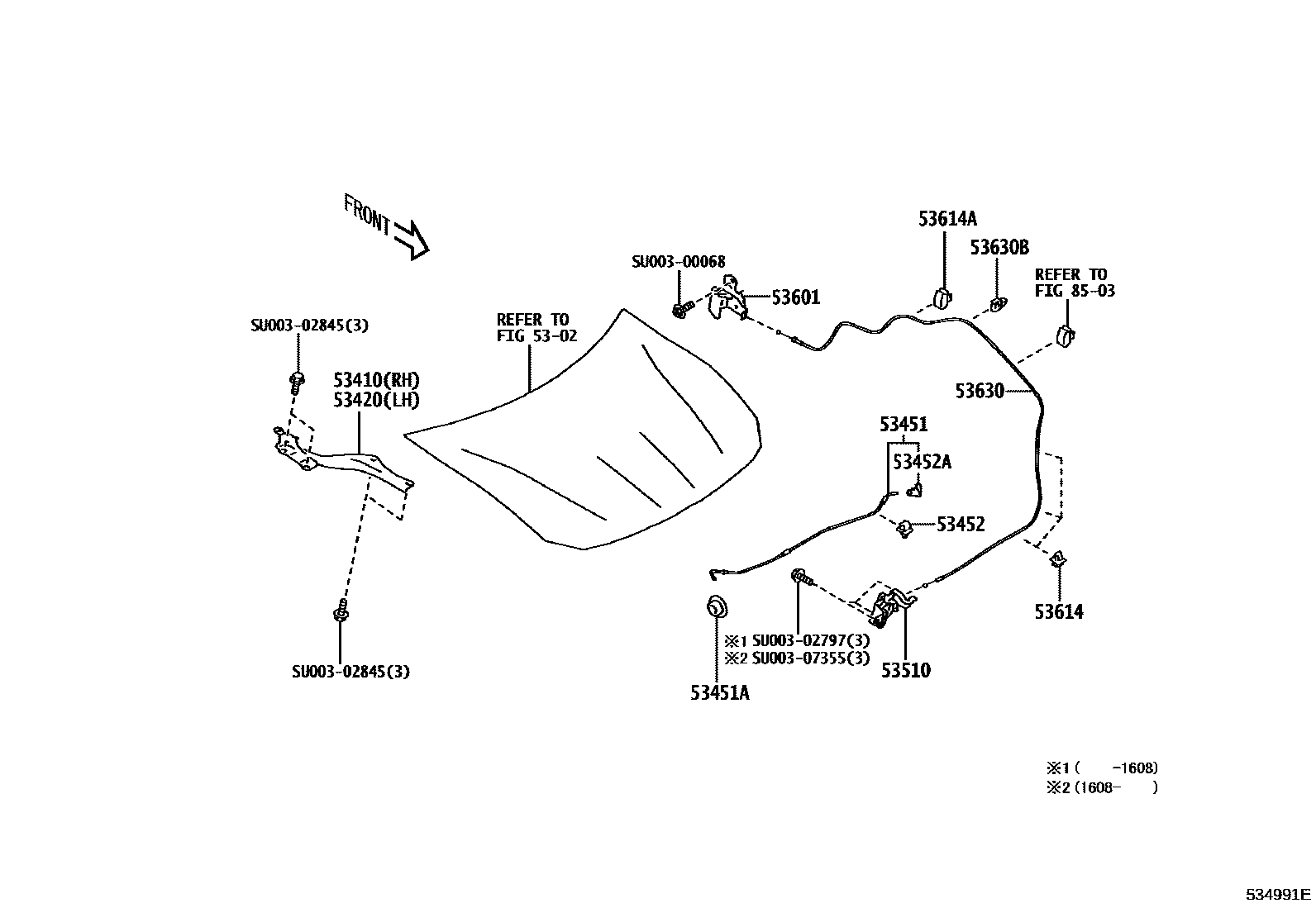

HOOD LOCK & HINGE

0001 1 0002 1

5302

53410HINGE ASSY, HOOD, RH

mainSU00301399iZN6201608-202104

53420HINGE ASSY, HOOD, LH

mainSU00301400iZN6201608-202104

53451ROD, HOOD SUPPORT

mainSU00301395iZN6201608-202104

53451AGROMMET(FOR HOOD SUPPORT ROD)

mainSU00303012iZN6201608-202104

53452HOLDER, HOOD STAY

mainSU00303010iZN6201608-202104

53452AHOLDER, HOOD STAY

mainSU00307454iZN6201608-202104

53510LOCK ASSY, HOOD

mainSU00306313iZN6..RHD..G201608-202104

mainSU00306314iZN6..LHD201608-202104

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

mainSU00301409iZN6..RHD201608-202104

mainSU00301410iZN6..LHD..G201608-202104

53614CLAMP, HOOD LOCK CONTROL CABLE

mainSU00301413iZN6201608-202104

53614ACLAMP, HOOD LOCK CONTROL CABLE, NO.1

mainSU00303006iZN6201608-202104

53630CABLE ASSY, HOOD LOCK CONTROL

mainSU00301403iZN6201608-202104

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

mainSU00302691iZN6201608-202104

8503

SU00300068

mainSU003-00068

SU00302797

mainSU003-02797

SU00302845

mainSU003-02845

SU00307355

mainSU003-07355

18 parts on this diagram · 2 diagrams in section
