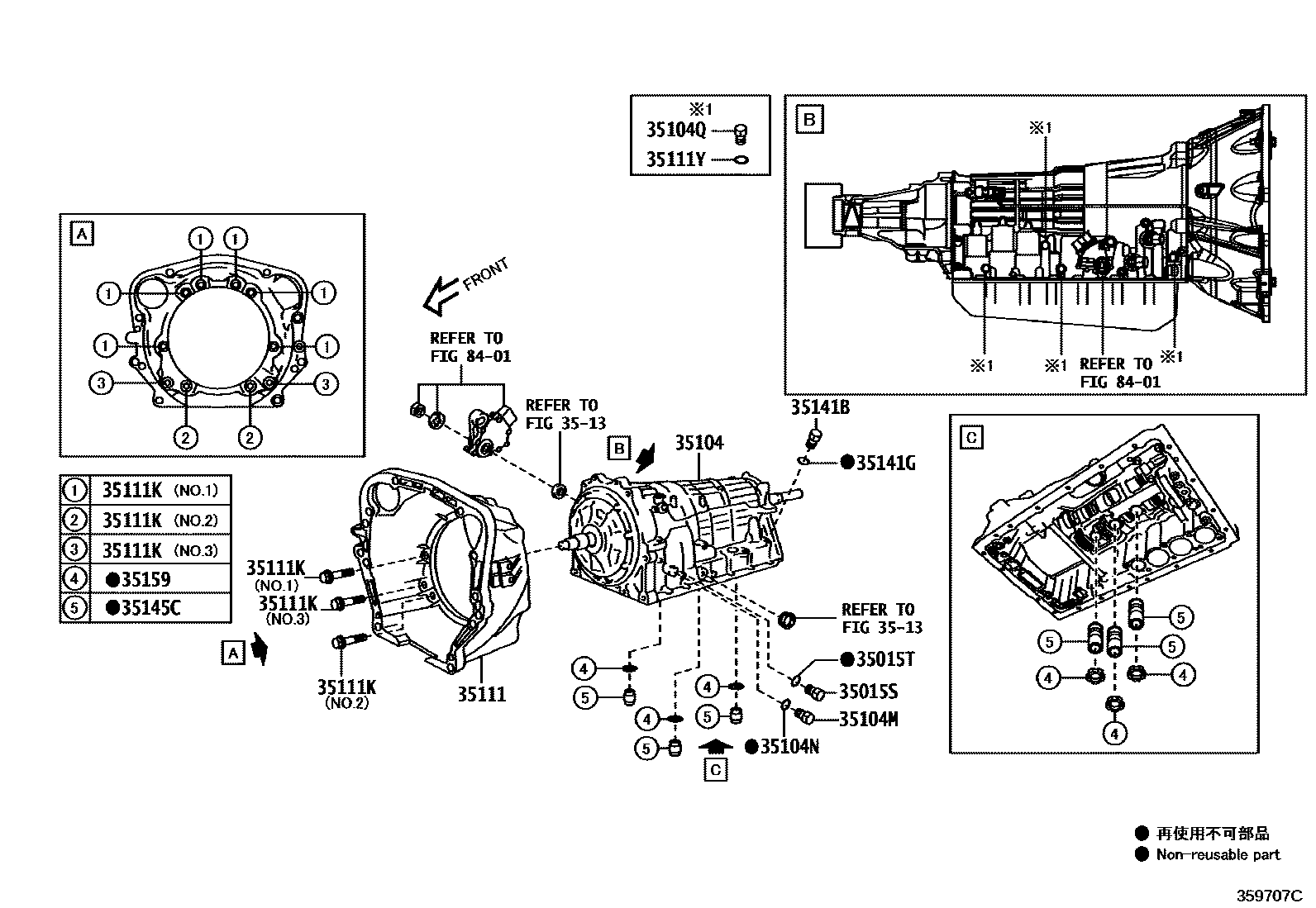

TRANSMISSION CASE & OIL PAN (ATM)
35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)
35015TRING, O(FOR TRANSMISSION CASE ADAPTER)
35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104MPLUG, REFILL(ATM)
35104NRING, O (FOR REFILL PLUG)
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
35111HOUSING, AUTOMATIC TRANSMISSION
35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.3:REFER ILLUST.
35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)
3513
35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)
35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)
35145CGASKET, TRANSAXLE CASE
35159GASKET, BRAKE DRUM
8401
15 parts on this diagram · 3 diagrams in section
