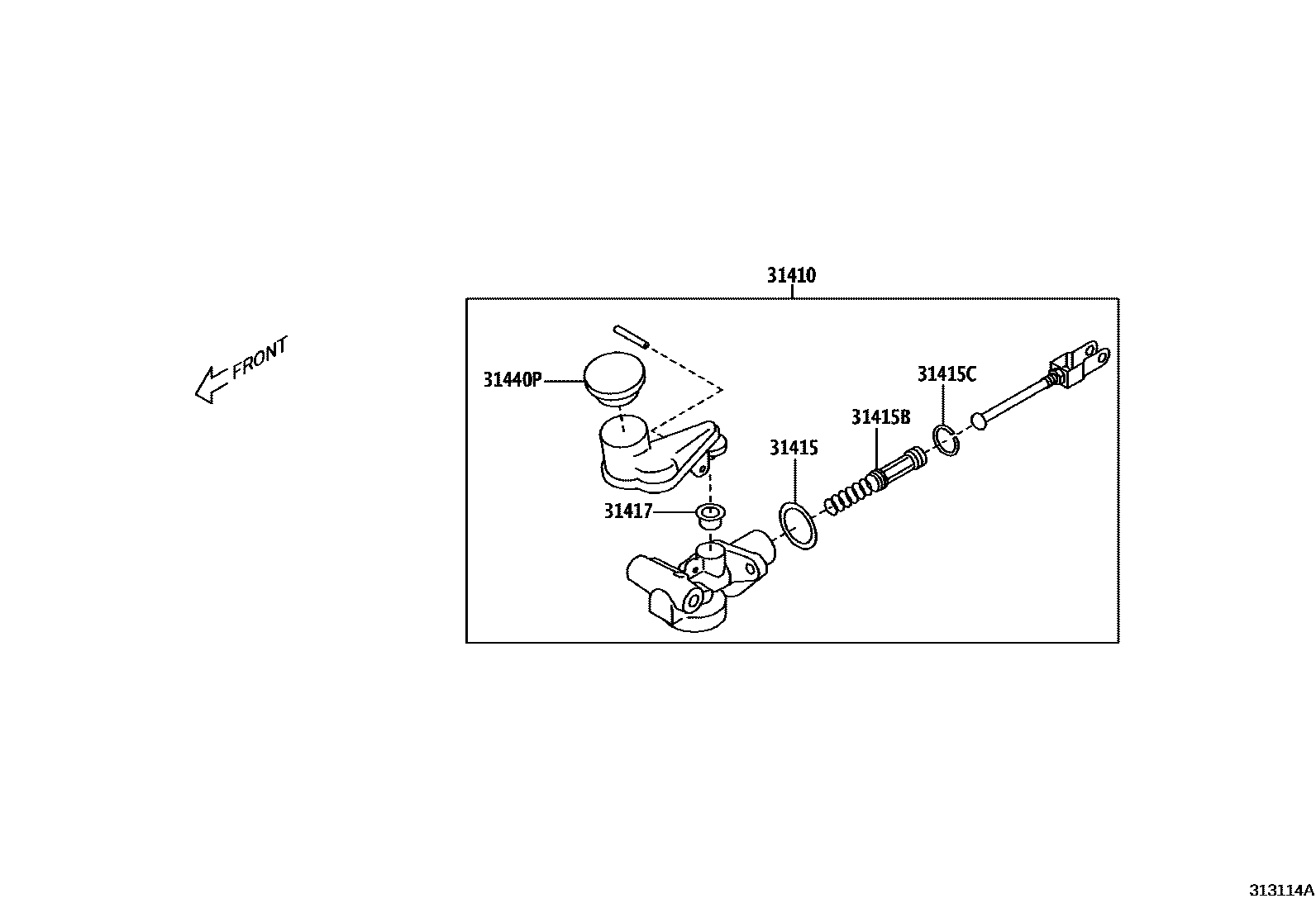

CLUTCH MASTER CYLINDER

0001 1 0002 1

31410CYLINDER ASSY, CLUTCH MASTER

mainSU00307117iZN6..RHD..6F..G201608-202104

subSU003-10674

mainSU00307118iZN6..LHD..6F201608-202011

subSU003-10487

mainSU00310487iZN6..LHD..6F202011-202104

subSU003-10675

31415GASKET, CLUTCH MASTER CYLINDER

mainSU00300994iZN6..6F201608-202104

31415BPISTON ASSY

mainSU00300992iZN6..6F201608-202104

31415CSTOP RING

mainSU00300126iZN6..6F201608-202104

31417GROMMET, CLUTCH RESERVOIR

mainSU00300592iZN6..6F201608-202104

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

mainSU00307119iZN6..6F201608-202104

subSU003-10676

6 parts on this diagram · 2 diagrams in section
