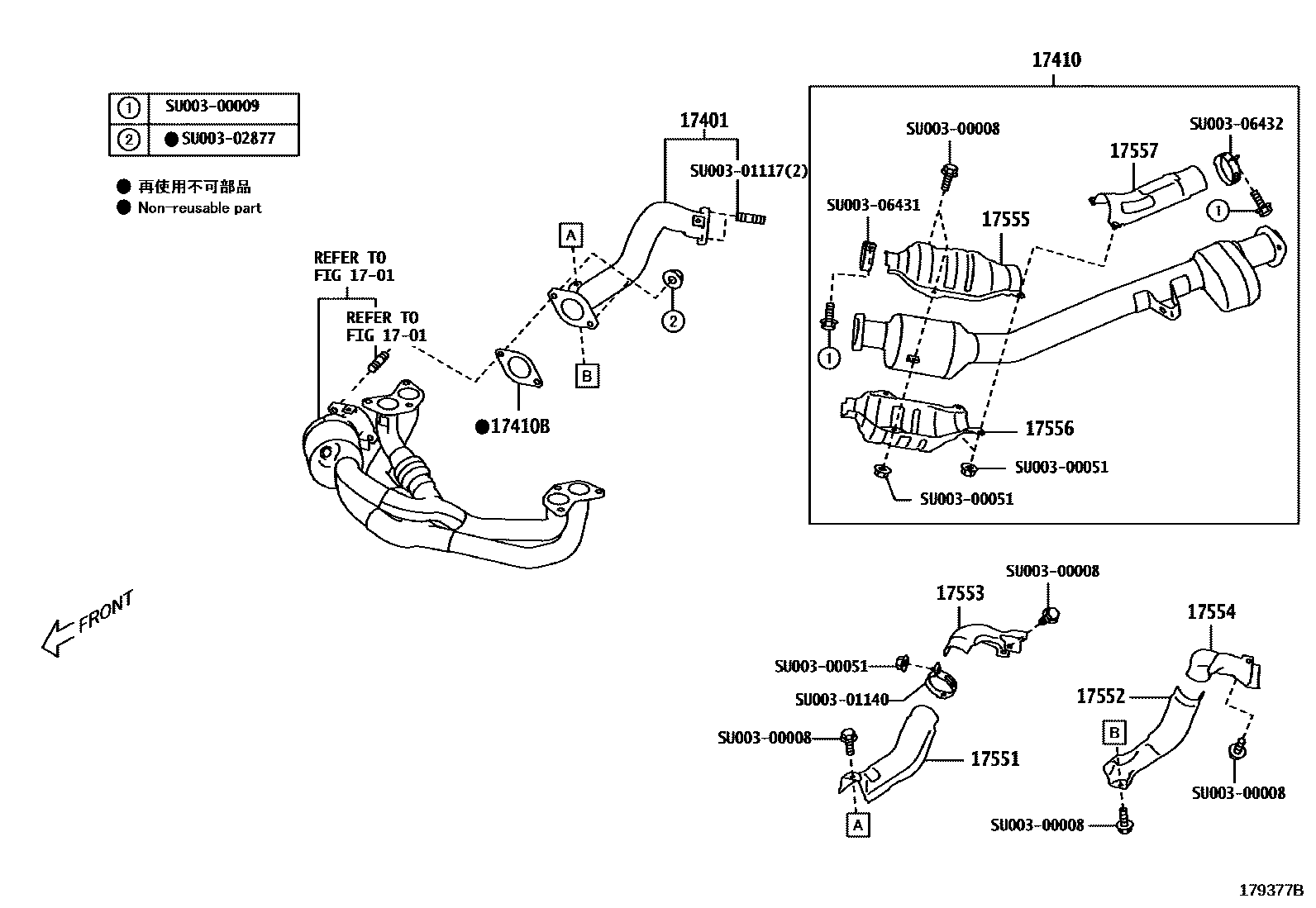

EXHAUST PIPE

0001 1DESTINATION CODE=KA 0002 1EXCEPT DESTINATION CODE=KA 0003 1DESTINATION CODE=E9,KS,KR 0004 1EXCEPT DESTINATION CODE=E9,KS

1701

17401PIPE SUB-ASSY, EXHAUST, FRONT

mainSU00301137iFA20..ZN6201608-202104

17410PIPE ASSY, EXHAUST, FRONT

mainSU00306250iFA20..ZN6..CHI5201608-202104

mainSU00306427iFA20..ZN6201608-201803

*114=SUBARU/RCA41/Y

17410BGASKET, EXHAUST PIPE

mainSU00301110iFA20..ZN6..H201608-202104

subSU003-10928

17551INSULATOR, EXHAUST PIPE HEAT, NO.1

mainSU00301165iFA20..ZN6201608-202104

17552INSULATOR, EXHAUST PIPE HEAT, NO.2

mainSU00301167iFA20..ZN6201608-202104

17553INSULATOR, EXHAUST PIPE HEAT, NO.3

mainSU00301169iFA20..ZN6..H201608-202104

17554INSULATOR, EXHAUST PIPE HEAT, FRONT

mainSU00301171iFA20..ZN6..G201608-202104

17555INSULATOR, EXHAUST PIPE HEAT, NO.5

mainSU00301142iFA20..ZN6..CHI201608-202104

mainSU00306443iFA20..ZN6201608-202104

17556INSULATOR, EXHAUST PIPE HEAT, NO.6

mainSU00304468iFA20..ZN6..CHI201608-202104

mainSU00306444iFA20..ZN6..G201608-202104

17557INSULATOR, EXHAUST PIPE HEAT, NO.7

mainSU00306253iFA20..ZN6..CHI5201608-202104

mainSU00306445iFA20..ZN6201608-202104

SU00300008

mainSU003-00008

SU00300009

mainSU003-00009

SU00300051

mainSU003-00051

SU00301117

mainSU003-01117

SU00301140

mainSU003-01140

SU00302877

mainSU003-02877

SU00306431

mainSU003-06431

SU00306432

mainSU003-06432

19 parts on this diagram · 4 diagrams in section
