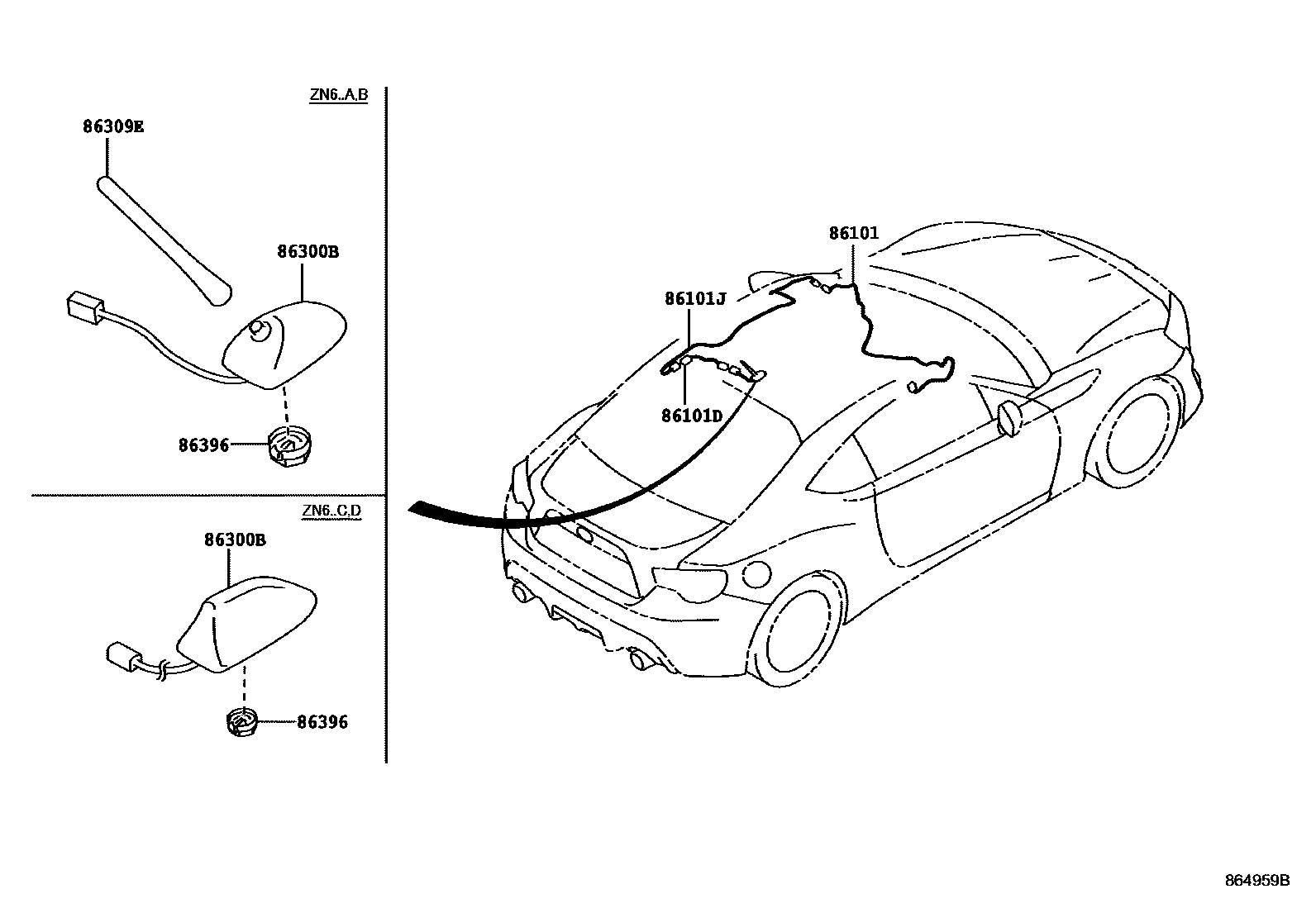

ANTENNA

86101CORD SUB-ASSY, ANTENNA

mainSU00302659iZN6201204-201312

subSU003-05230

mainSU00305230iZN6201312-201607

86101DCORD SUB-ASSY, ANTENNA, NO.3

mainSU00302661iZN6201204-201312

subSU003-05232

mainSU00305232iZN6201312-201607

86101JCORD SUB-ASSY, ANTENNA, NO.2

mainSU00302658iZN6201204-201312

subSU003-05229

mainSU00305229iZN6201312-201607

86300BANTENNA ASSY, AMPLIFIER, NO.1

mainSU00302655iZN6201204-201404

mainSU00305514iZN6..BASE,HI,LOW,LOWC,RCG201405-201503

GALAXY BLUE SILICA,E8H

subSU003-08002

mainSU00305515iZN6..BASE,HI,LOW,LOWC,RCG201405-201607

DARK GRAY METALLIC,61K

subSU003-08004

mainSU00305516iZN6..BASE,HI,LOW,LOWC,RCG201405-201607

ORANGE METALLIC,H8R

subSU003-08007

mainSU00305517iZN6..BASE,HI,LOW,LOWC,RCG201405-201503

LIGHTNING RED,C7P

mainSU00305518iZN6..BASE,HI,LOW,LOWC,RCG201405-201607

ICE SILVER METALLIC,G1U

subSU003-08012

mainSU00305519iZN6..BASE,HI,LOW,LOWC,RCG201405-201607

CRYSTAL BLACK SILICA,D4S

subSU003-08014

mainSU00305520iZN6..BASE,HI,LOW,LOWC,RCG201405-201607

CRYSTAL WHITE PEARL,K1X

subSU003-08015

mainSU00305708iZN6..LIMD201405-201503

SUNRISE YELLOW

subSU003-08006

mainSU00305970iZN6..(BASE,HI)..D201504-201607

LAPIS BLUE PEARL,K3X

mainSU00305971iZN6..(BASE,HI)..D201504-201607

PURE RED,M7Y

86309EPOLE SUB-ASSY, ROOF ANTENNA

mainSU00302657iZN6201204-201404

86396NUT, ANTENNA

mainSU00302662iZN6201204-201607

6 parts on this diagram · 1 diagram in section
