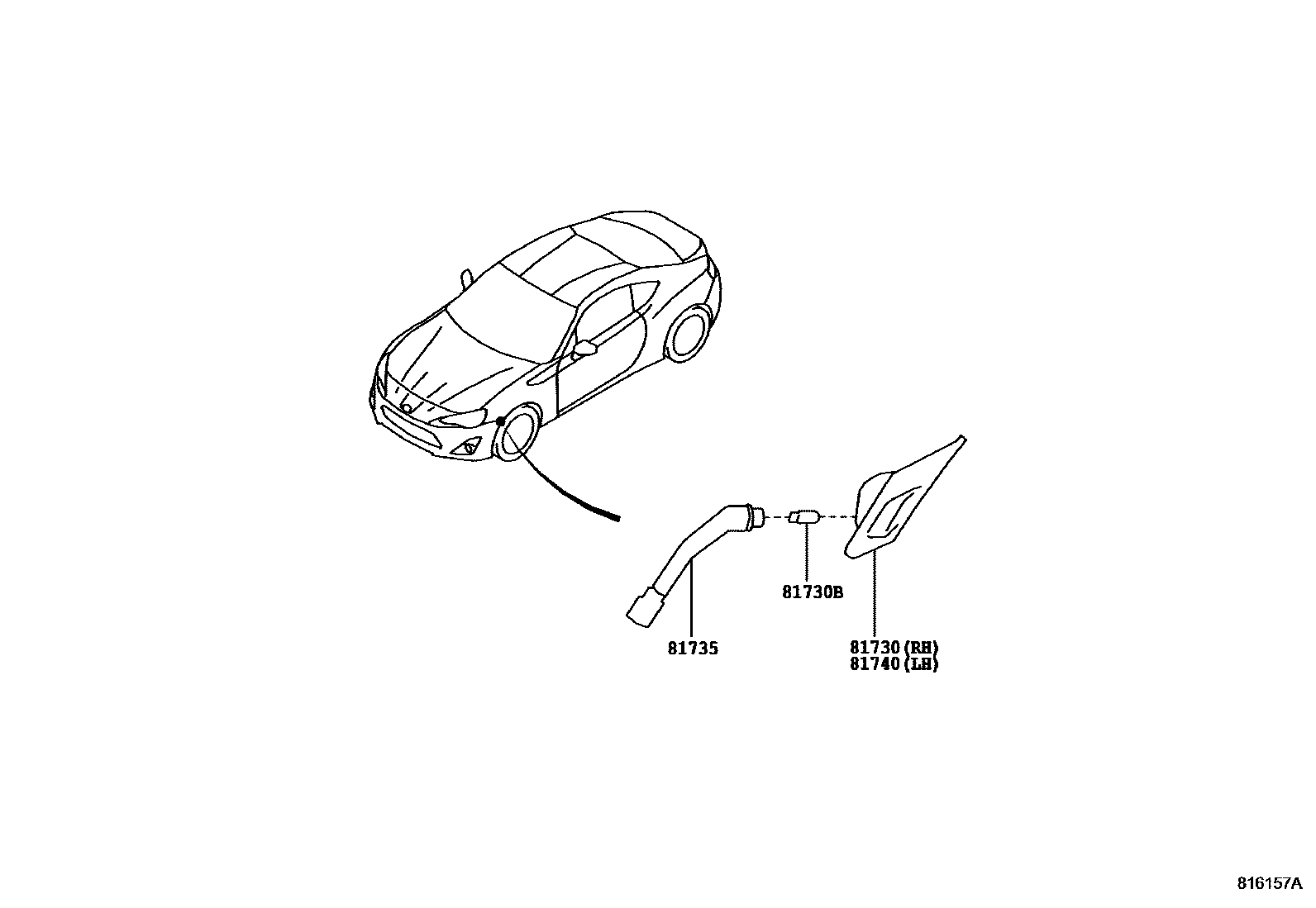

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

mainSU00302538iZN6..B201204-201607

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

mainSU00302562iZN6201204-201607

12V 5W

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

mainSU00302580iZN6..B201204-201607

RH

mainSU00302581iZN6201204-201607

LH

81740LAMP ASSY, SIDE TURN SIGNAL, LH

mainSU00302539iZN6201204-201607

4 parts on this diagram · 1 diagram in section
